78
S9V2-VS-SVX001-1C-EN

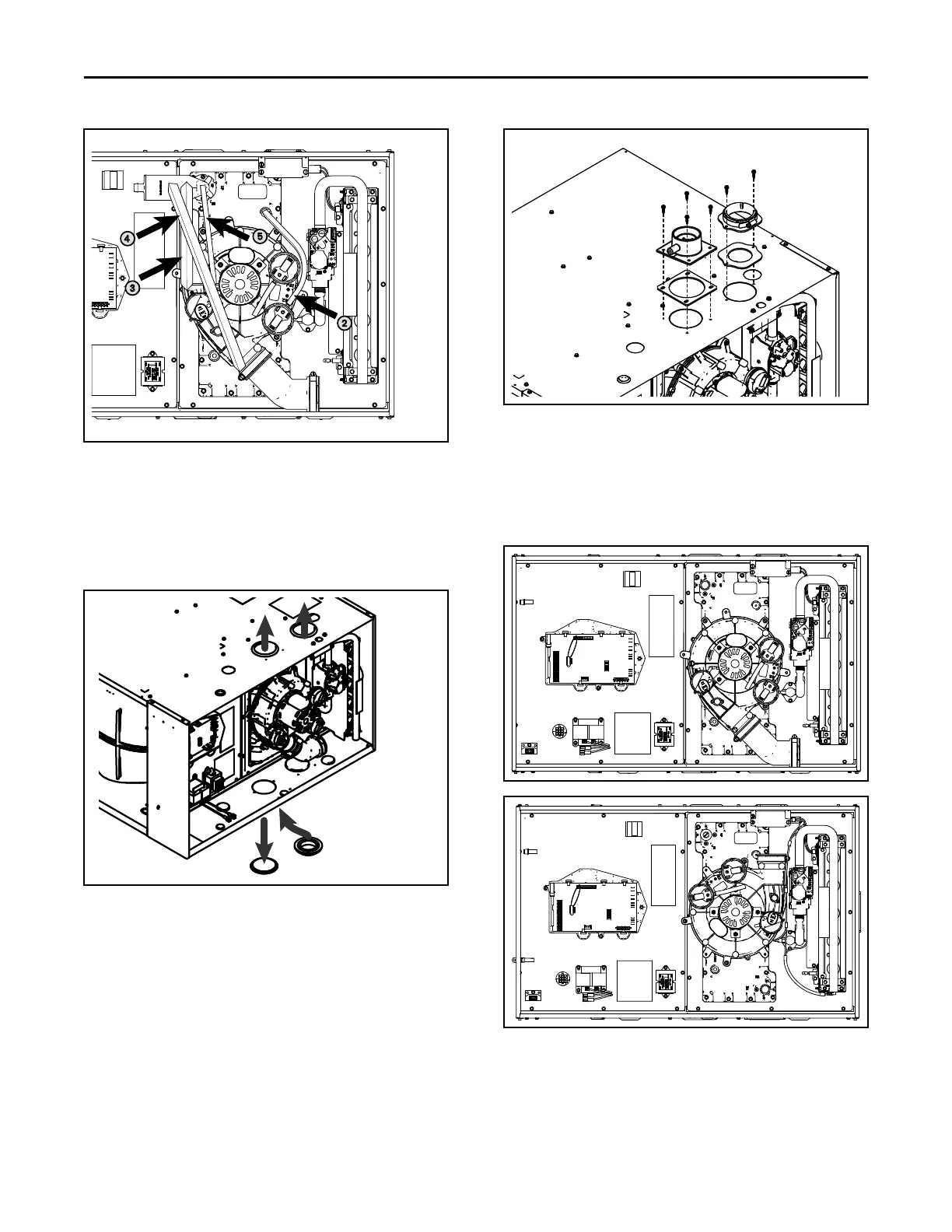

8. Remove 3” plug on right side of unit. To be used for
condensate trap.
9. Install condensate trap grommet.
10. Remove two 3” plugs on left side of cabinet.
11. Reuse the two 3” plugs to seal the two 3” default
openings on the top of the cabinet.
12. Attach the vent outlet gasket to the vent outlet.
13. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
14. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
15. Remove three inducer screws.
16. Rotate the inducer so that the outlet is pointing
vertically.
17. Use the three inducer screws to reattach the
inducer to the cold header. Torque to 30 in.-lbs. Do
not overtighten.
18. Remove condensate drain plug from top right
location on cold header.
19. Place condensate drain plug onto the cold header
outlet located on the bottom left of the cold header.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
