Trane TCONT602AF22MA User Manual

13 69-1836—02
Run Schedule
Auto
FanSystem
Heat
Heat
Setting
Inside
AM
69
75
6
:
30
Hold
M28612
Press to cancel “Hold” setting and
resume program schedule.
Note: Make sure the Comfort Control
is set to the system you want to control
(heat, cool or auto).
Press to permanently adjust temperature.
Press HOLD to permanently adjust
the temperature. This will override
the temperature settings for all time
periods.
The “Hold” feature turns off the
program schedule and allows you to
adjust the thermostat manually, as
needed.
Whatever temperature you set will
be maintained 24 hours a day, until
you manually change it, or press RUN
SCHEDULE to cancel “Hold” and resume
the programmed schedule.

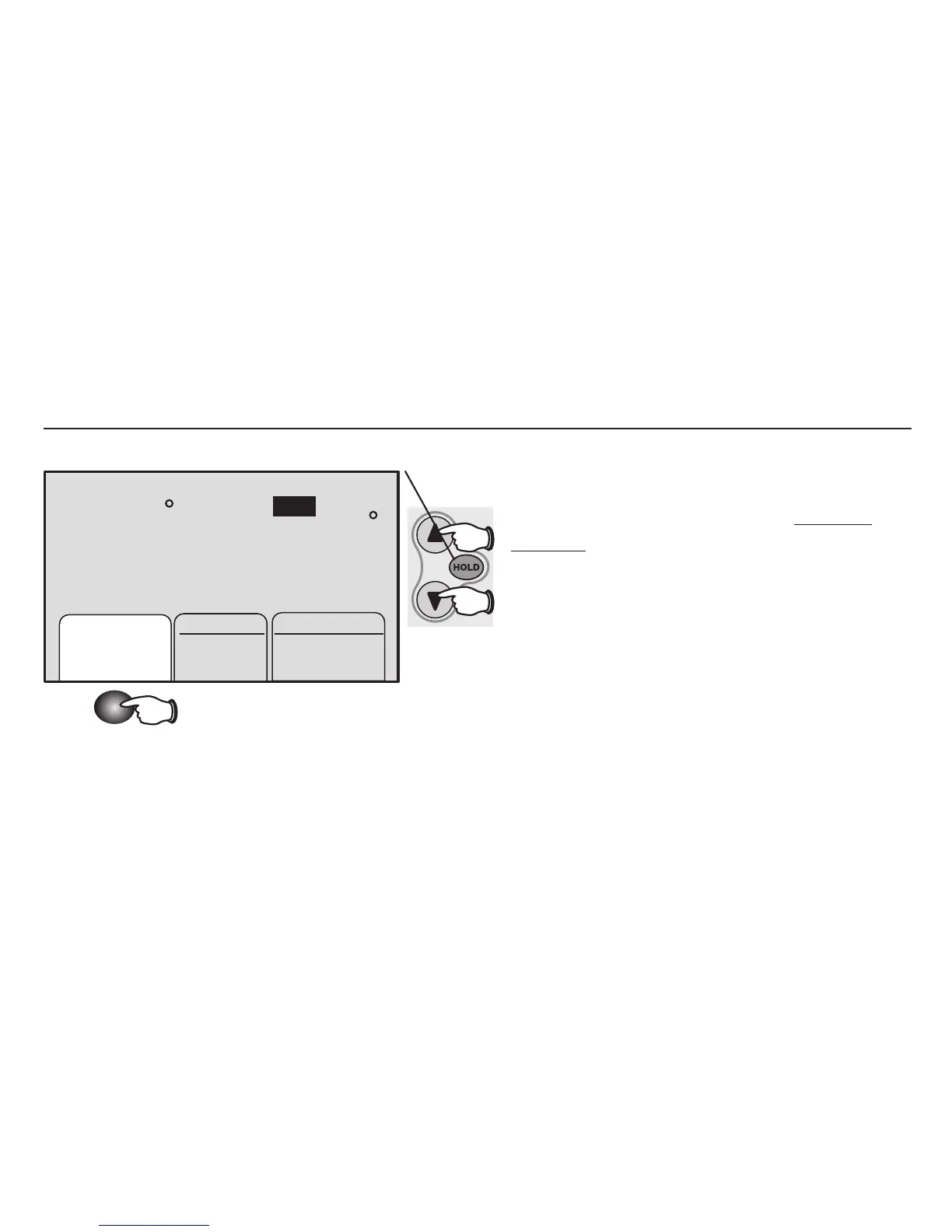

Program schedule override (permanent)

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
