Trane TCONT602AF22MA User Manual

5 69-1836—02
Current inside temperature
Set Clock/Day/
Schedule
Auto
Wake Wed
Fan
In Recovery
System
Auxiliary
Heat On
Heat
Heat
Setting
Inside
AM
72
72
6
:
30
Replace Battery
M28601
In Recovery
(see page 16)
Current program period
Wake/Leave/Return/Sleep
(see pages 9-11)
Set Clock/Day/Schedule
(see pages 6 & 11)
Function buttons
Press the button beneath each function to view or change
settings (functions change depending on the task)
Low battery warning
(see page 17)
Current time/day
(see page 6)
Temperature setting
(see pages 11-13)
Auxiliary heat
(Only for heat pumps
with auxiliary heat)
System status
Heat On/Cool On (If
flashing, see page 15)
System setting
Heat/Cool/Auto/Off/Em
Heat (see page 8)
Fan setting
Auto/On (see page 7)

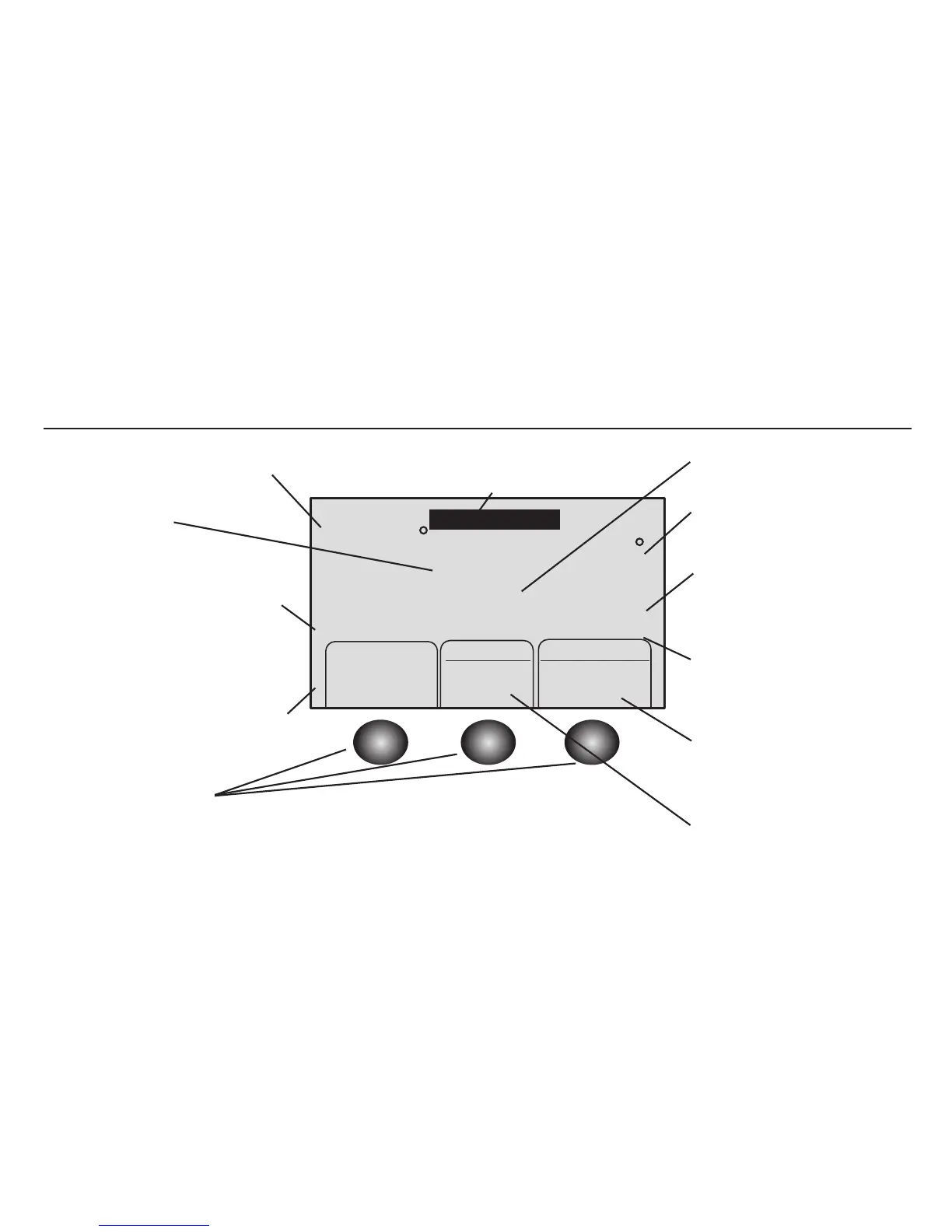

Quick reference to display screen

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
