69-1836—02 4
M28598

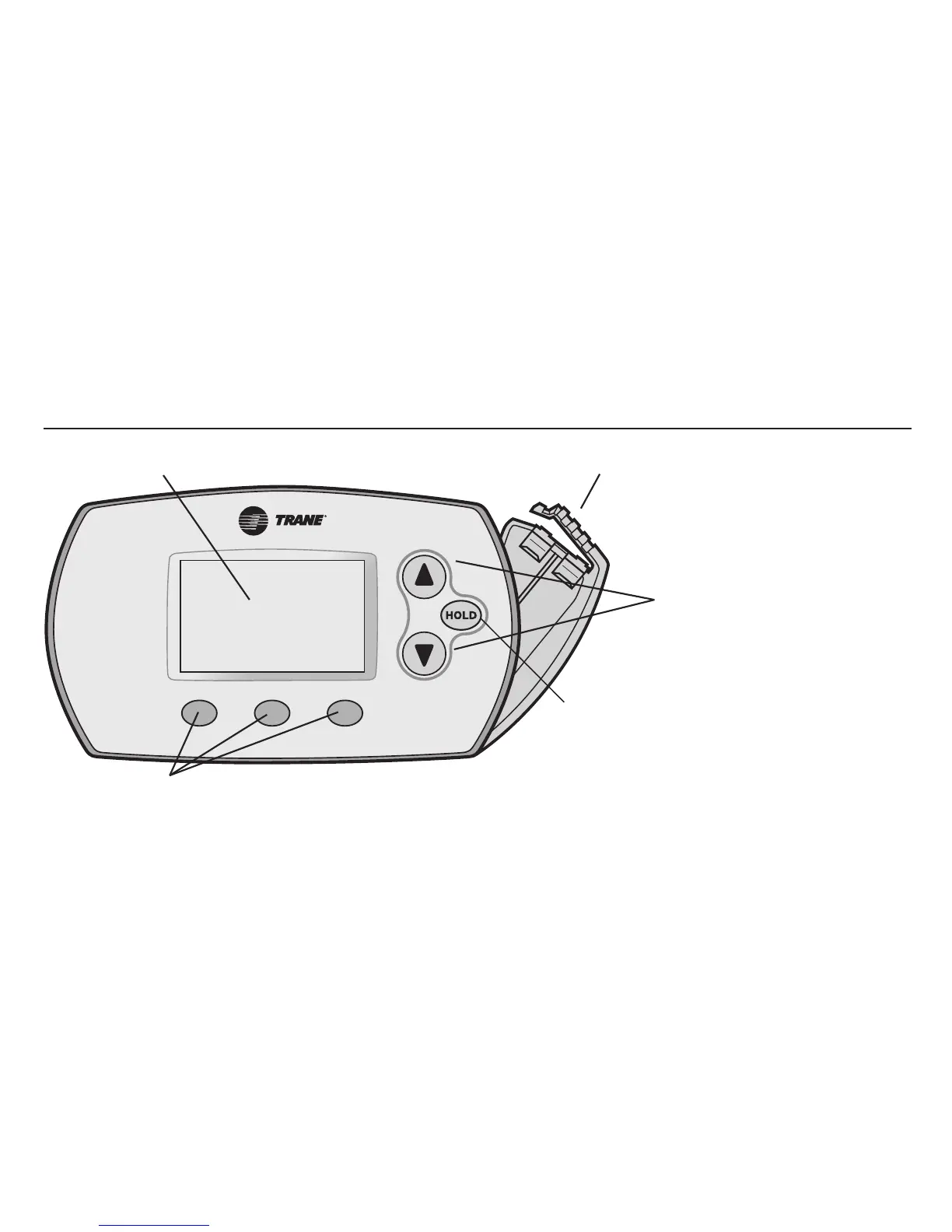

Digital display (see page 5). Battery holder (see page 17).
Temperature Buttons
Press to adjust temperature
settings (see page 11-13).
Hold Button
Press to override
programmed temperature
control (see page 13).
Function Buttons
Press to select the function displayed just above each
button. (Functions change depending on the task.)
Quick reference to controls

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
