Trane TCONT602AF22MA User Manual

69-1836—02 20
For assistance with this product call your HVAC
Contractor or visit www.trane.com. Or call the
Customer Assistance Helpline toll-free at 1-800-
500-2041.

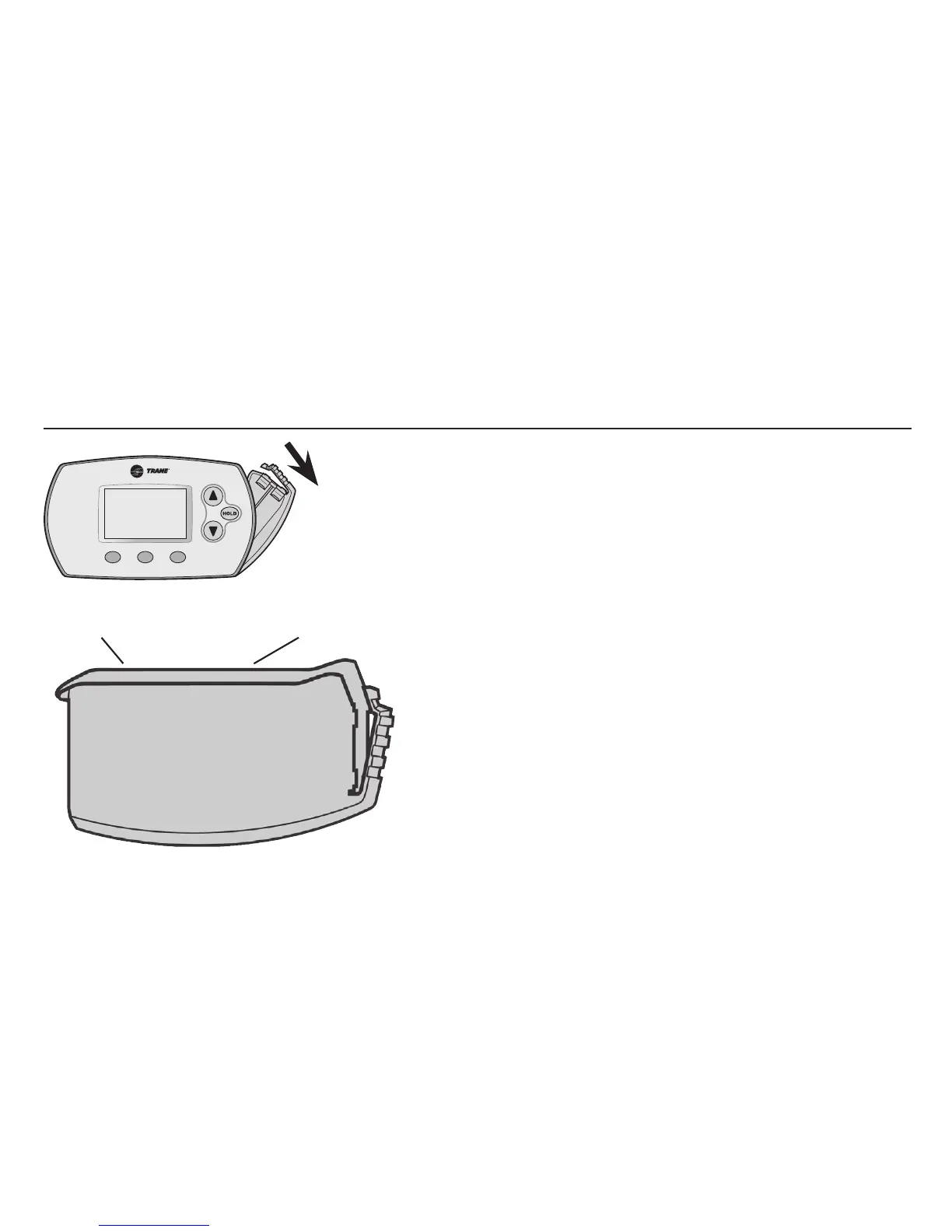

To save time, please remove the battery holder
and note your model number and date code
before calling.
Accessories/replacement parts
Battery holder ...........................Part No. THT02506
Cover plate assembly* .... Part No. BAYCOVR700A
*Use to cover marks left by old thermostats.
M28600
M28616
XXXXXXX XXXXXXX
Model number Date code
Customer assistance

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
