Trane TCONT602AF22MA User Manual

Read and save these instructions.

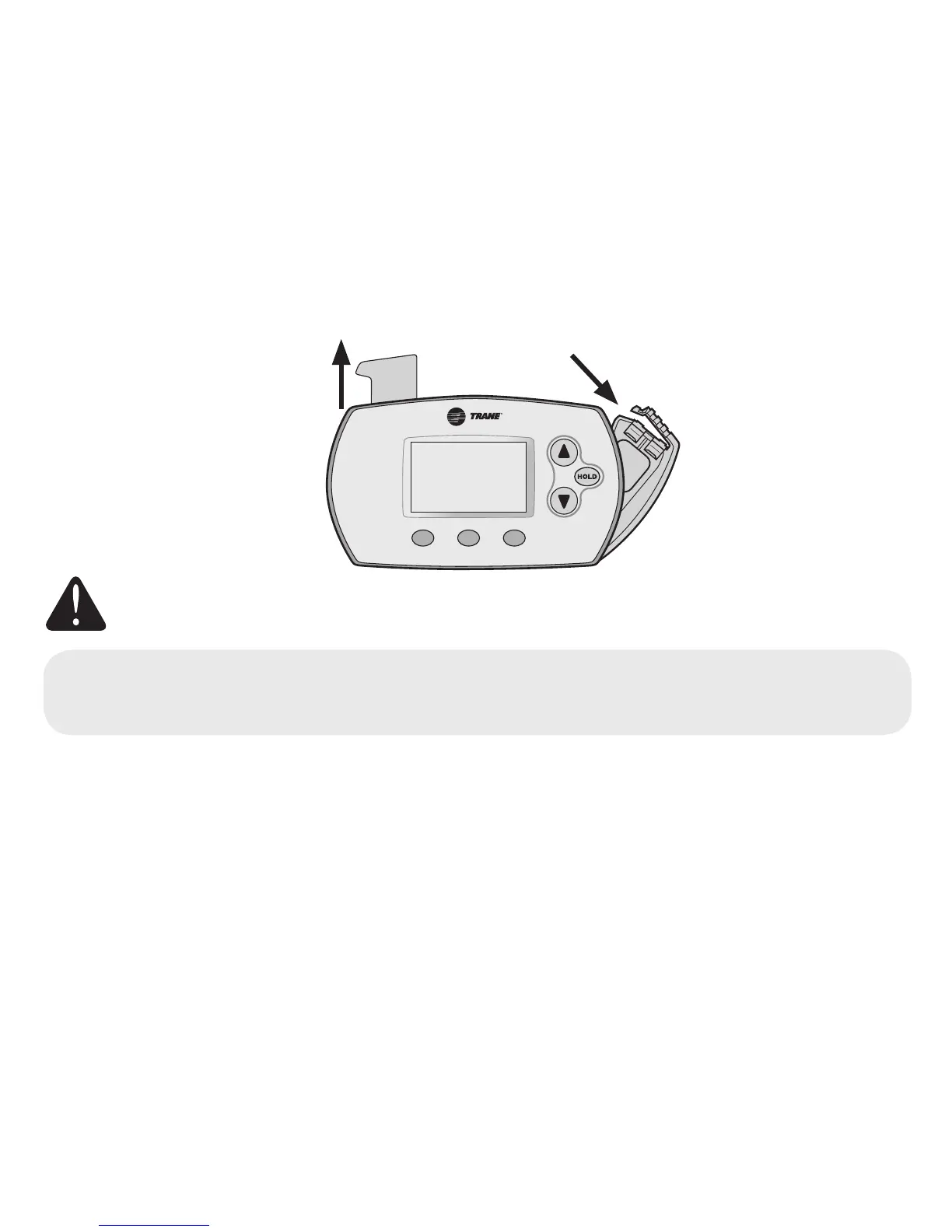

Quick Reference Card
Grasp and pull to see basic
operating instructions at a
glance.
Need Help?
For assistance with this product please visit www.trane.com
or call the Customer Assistance Helpline toll-free at 1-800-500-2041
M28597
CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do
not operate cooling system when outdoor temperature is below 50°F (10°C).
Battery Holder
Press down and pull to
remove batteries.
Batteries should be
replaced once a year
(see page 17).
This thermostat contains a Lithium battery which may contain Perchlorate material.
Due to State Law in CA, the following statement is required:
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
