18-GF75D1-1C-EN
19

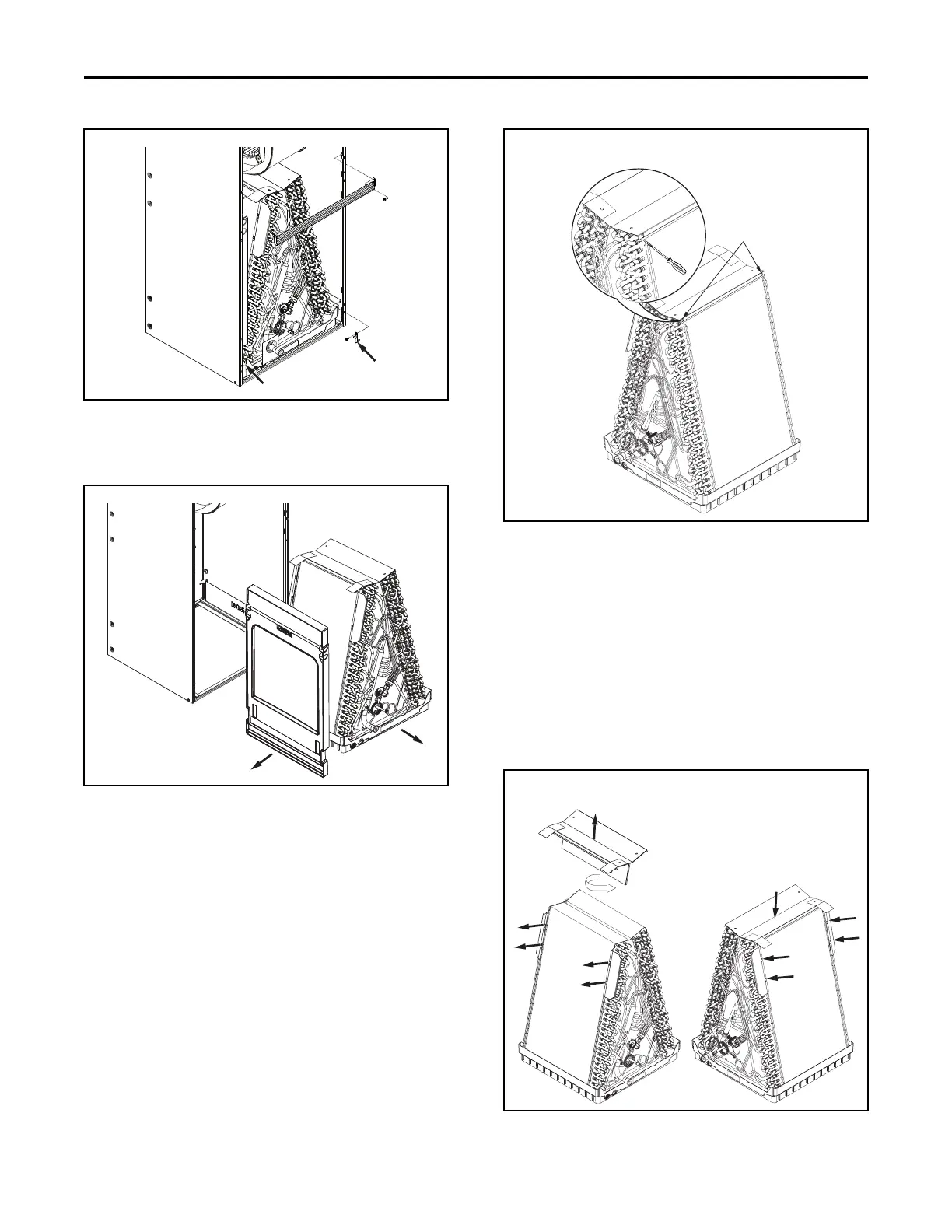

4. Make note of the horizontal drain pan orientation
(up/down).
5. Slide the coil assembly out.
IImmppoorrttaanntt:: For Horizontal Right applications, ON
SOME MODELS the top panel assembly of
the coil must be rotated for proper
condensate management.
6. On the right side of the top baffle, position a
flathead tip underneath the top baffle flange and
pivot the screwdriver downward to release the front
tab as shown below.
7. Repeat for right rear tab to release top baffle
assembly from coil.
Figure 8. All models
8. Rotate 180 degrees and snap all four corner tabs to
lock in place.
9. Remove left side water diverter brackets and screws
and reinstall on the right side.
IImmppoorrttaanntt:: The coil slabs are different and the mount
hole locations will vary. See the
illustrations on the following pages that
correspond to the unit tonnage to see the
correct mounting position of the water
diverter bracket.
IImmppoorrttaanntt:: The water diverter brackets are not
symmetrical and will vary by tonnage.
Figure 9. All models
CCooiill CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
