CNT-SVX08F-EN
25
Applications for Generic Mode

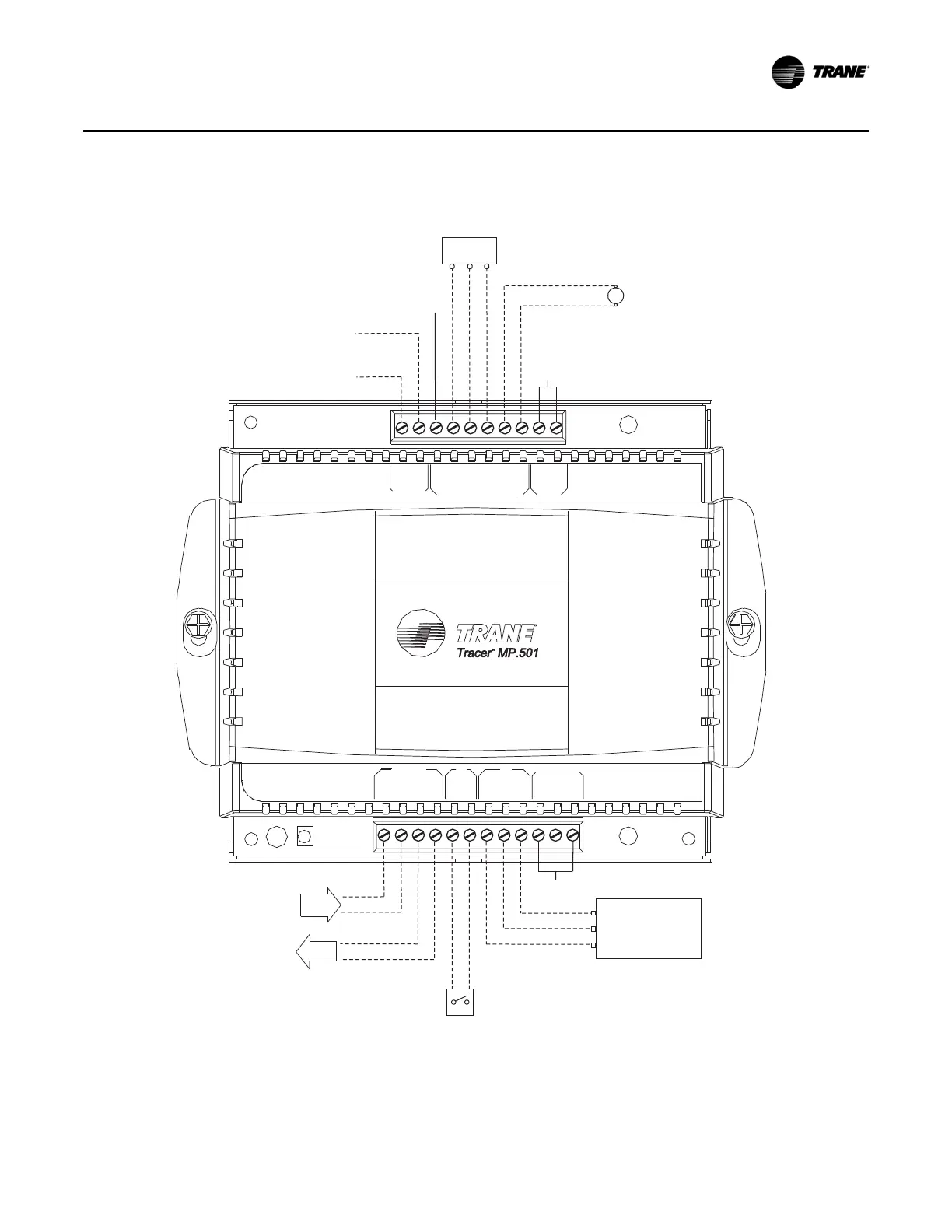

Figure 9.
Input/output
wiring for
generic appl
ications with the MP501
controlling a tri-state
modulating actuator
COMM5
B
AA
B
Z
N
GND
SET
ZONE
SENSOR
+20
GND
AI1
AI
BI
BI
1
LED
COMM5
LED
PIN
SERVICE
BINARY
OUTPUTS
1
24V
24V
2
24V
3
GND
24V
AC
POWER
OUT
GND
AO
ST
A
TUS
LED
H
Tri-state modulating
actuator
Interlock device on/off
Not used
In
LonTalk
communication
link
Enable/disable
or generic input
Not used
Not used
24 Vac
N
Open
Close
Typical
3-wire
sensor
Out
–
+
GND
24
26
Table of Contents
Table of Contents
3
Overview
6
Product Description
6
Storage Environment
6
Dimensions
6
Clearances
7
Agency Listing/Compliance
8
Additional Components
8
Power Transformer
8
Zone Temperature Sensors (SCC Mode)
9
Generic Sensors
9
Binary Input Switching Devices
9
Binary Output Actuators and Relays
9
Analog Output Actuator
9
General Wiring Information
10
Input/Output Terminal Wiring
10
AC Power Wiring
10
Communication Link Wiring and Addressing
11
Location Recommendations
12
Operating Environment Requirements
12
Mounting Recommendations
12
Applications for SCC Mode
13
Inputs for SCC Applications
13
BI1: Occupancy or Generic Binary Input
13
AI1: 4-20 Ma Analog Input
13
SET: Local Setpoint
13
ZN: Zone Temperature
14
Outputs for SCC Applications
14
Binary Output 1/Binary Output 2
14
Binary Output 3
14
AO: Analog Output
15
Overriding Outputs
15
Wiring Diagrams
15
Sequence of Operations/Scc Mode
19
Power-Up Sequence
19
Zone Temperature Control
19
Occupancy Modes
19
Occupied Mode
20
Unoccupied Mode
20
Occupied Standby Mode
20
Occupied Bypass Mode
20
Timed Override Control
20
Output Types
21
Tri-State Modulating
21
Analog
21
2-Stage
21
Fan Operation
22
Fan off Delay
22
Peer-To-Peer Data Sharing
22
Applications for Generic Mode
23
Inputs for Generic Applications
23
BI1: Enable/Disable or Generic Binary Input
23
AI1: 4-20 Ma Analog Input
23
SET: Local Setpoint
23
ZN: Zone Temperature
24
Outputs for Generic Applications
24
Binary Output 1/Binary Output 2
24
Binary Output 3
24
AO: Analog Output
24
Overriding Outputs
24
Wiring Diagrams
24
Sequence of Operations for Generic Mode
28
Power-Up Sequence
28
Loop Enable/Disable
28
Relay Output Control
29
Output Types
29
Tri-State Modulating
29
Analog
29
2-Stage
29
PID Control
29
What Are PID Loops
30
PID Calculations
31
Proportional Calculation
31
Integral Calculation
31
Derivative Calculation
32
Throttling Range and Gain
32
Calculating the Gain
32
Sampling Frequency
34
Calculating the Sampling Frequency
35
PID Loop Action
37
Direct Action
37
Reverse Action
38
Determining the Action
38
Error Deadband
39
Typical Applications
39
Adjusting Error Deadband for Modulating Outputs
39
Adjusting Error Deadband for Staged Outputs
40
Other PID Settings
41
Troubleshooting Procedure
41
Tips for Specific Problems
41
Status Indicators for Operation and Communication
43
Test Button
43
Manual Output Test
43
Service Pin Button
44
Interpreting Leds
44
Red Service LED
44
Green Status LED
44
Yellow Lontalk LED
45
Diagnostics
46
Troubleshooting
47
Initial Troubleshooting
47
Binary Output 3 (Relay Output) Troubleshooting
48
Analog Output (0-10 VDC) Troubleshooting
48
Binary Output 1 and 2 Troubleshooting
51
Occupancy Arbitration (Only SCC Mode)
52
Occupancy; Manual Command
52
Occupancy; Schedule
53
Occupancy; Sensor
53
ON/CANCEL Buttons
53
Occupancy Binary Input
54
