8 CNT-SVX08F-EN
Overview

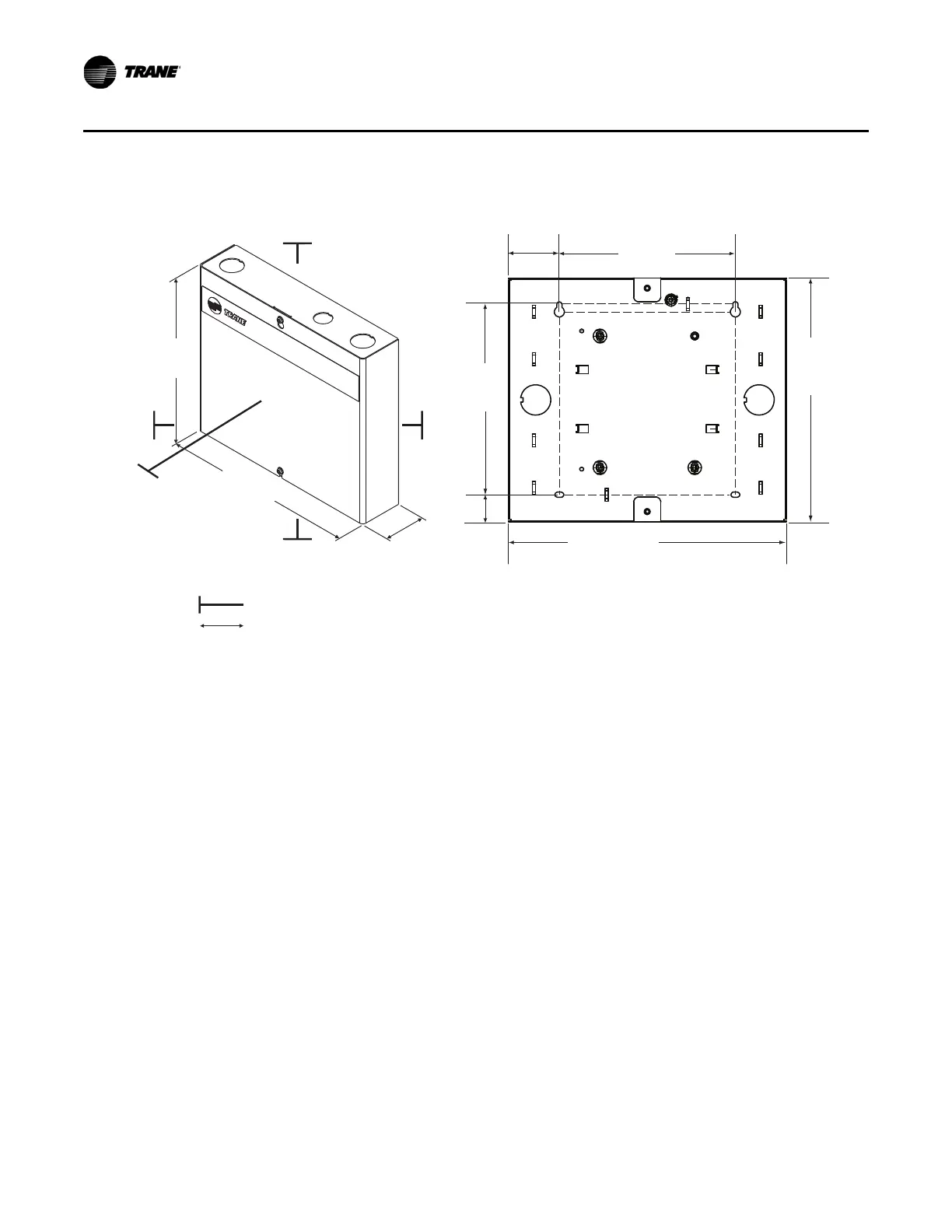

Figure 2. Metal cover model dimensions and clearances
9 in.
(229 mm)
10.37 in.
(263 mm)
width with cover
1.875
(48 mm)
6.5 in.
(165 mm)
1 in.
(25 mm)
2 in.
(51 mm)
2.25 in.
(58 mm)
2 in.
(51 mm)
24 in.
(610 mm)
1 in.
(25 mm)
10.25 in.
(260 mm)
width without cover
9 in.
(229 mm)
1 in.
(25 mm)
7 in.
(178 mm)
Clearances
Dimensions
Agency Listing/Compliance
CE—Immunity:
EN 50082-1:1997
CE—Emissions:
EN 50081-1:1992 (CISPR 11) Class B
EN 61000-3-2, EN 61000-3-3
UL and C-UL listed:
Energy management system
UL 94-5V (UL flammability rating for plenum use)
FCC Part 15, Class A
Additional Components
The MP501 requires the use of additional components for monitoring and proper control of the
equipment it is controlling. Use of various components depends on the application. They are not
included with the MP501.
Power Transformer
A UL-listed Class 2 transformer providing 70 VA at 24 Vac is required to power the MP501 and
associated output relays and actuators.
