Chapter 7 Creating a graphical program
90 CNT-SVP01C-EN

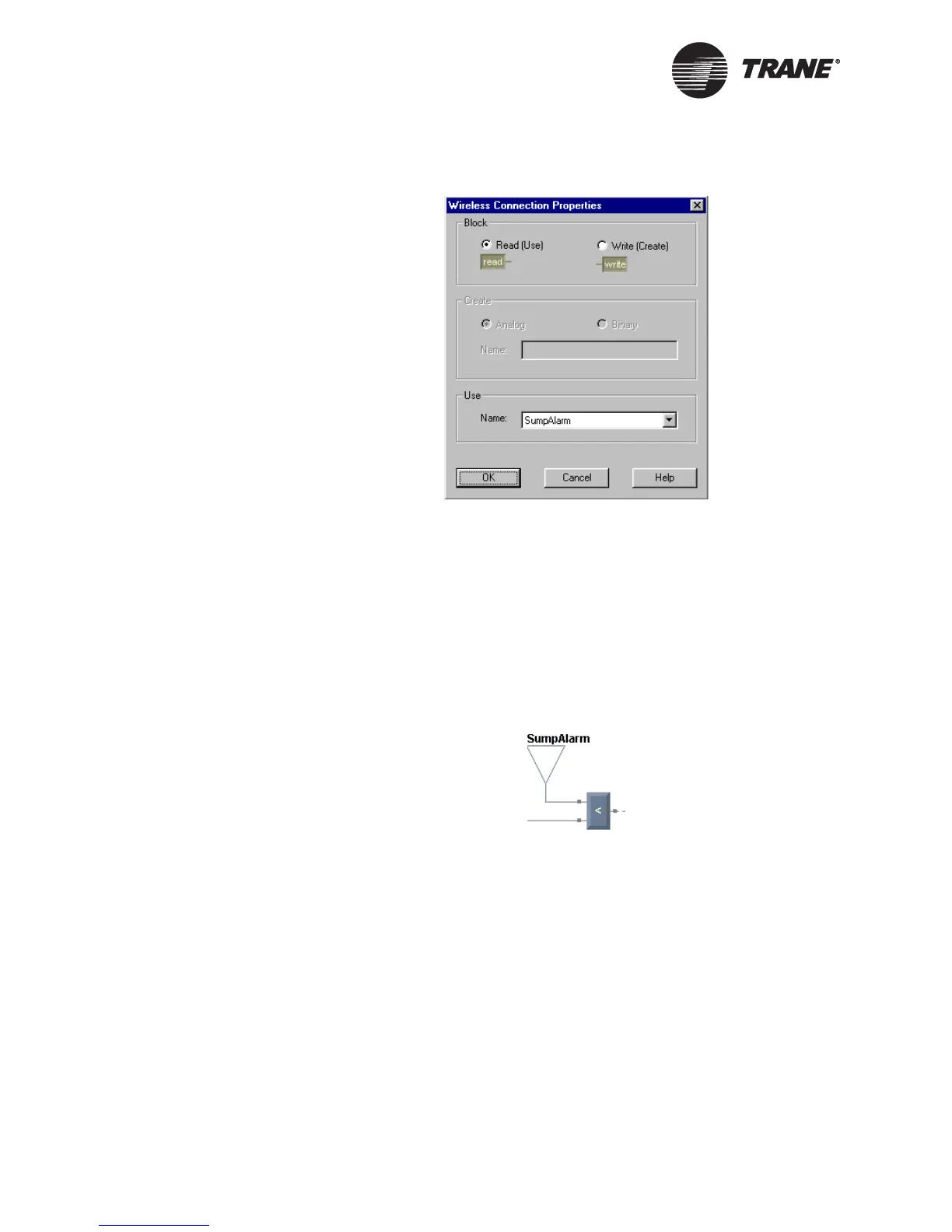

Figure 63. Using wireless connection block
9. Under Block, click the Read (Use) option to use a new wireless con-
nection block.
10. Under Use, in the Name list, click the wireless connection you want to
use.
11. Click OK. The Wireless read block appears in the design space.
12. Connect the Wireless read block with a wired connection to the block
to which you want to pass the wireless value. The wireless connection
is complete (Figure 64).
Figure 64. Wireless read connection
