Connecting blocks using wireless connections
CNT-SVP01C-EN 89

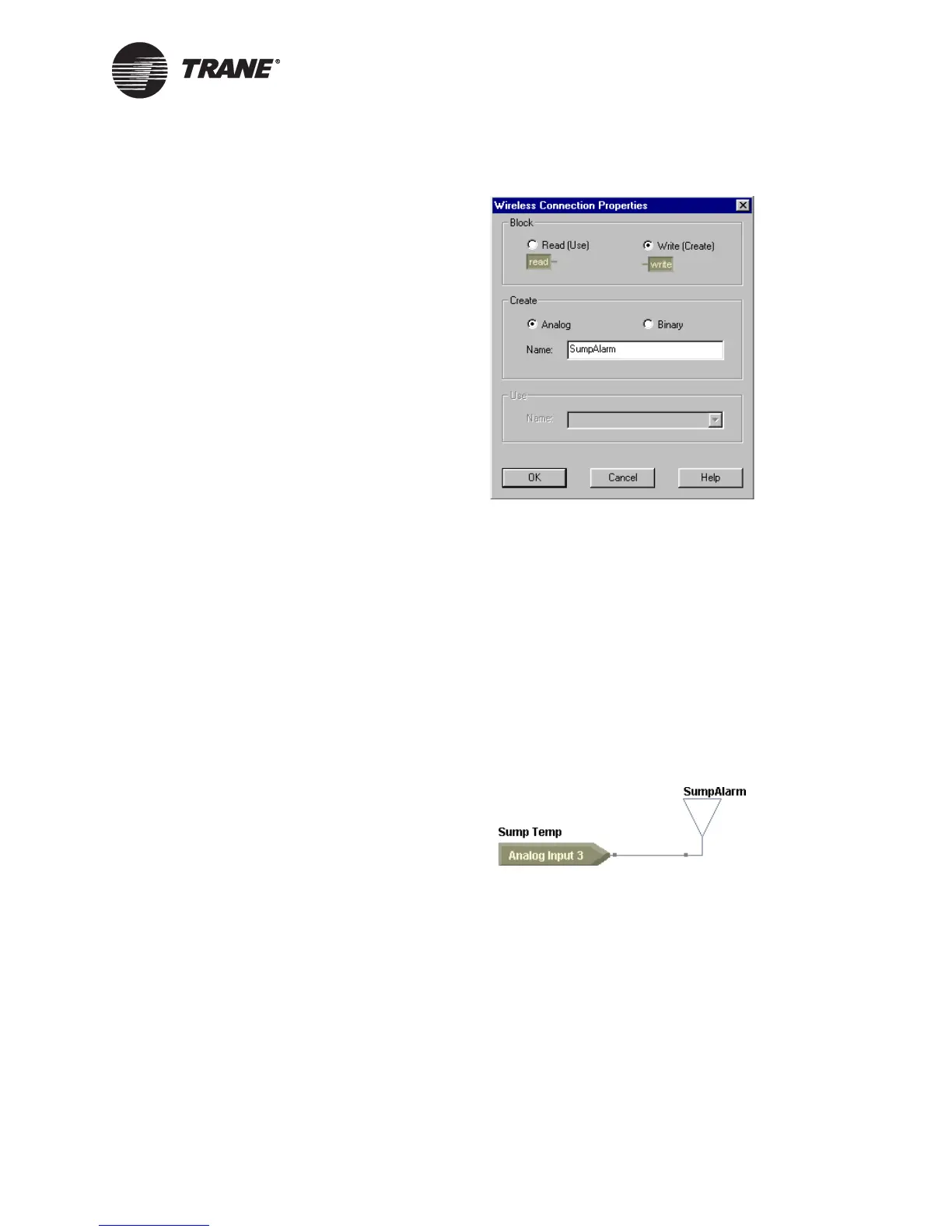

Figure 61. Creating wireless connection block
3. Under Block, click the Write (Create) option to create a new wireless
connection block.
4. Under Create, click the option for the type of connection you want to
make: analog or binary.
5. In the Name field, type a name for the block.
The name may be up to 16 characters in length. Spaces are not
allowed.
6. Click OK. The Wireless write block appears in the design space.
7. Connect the Wireless write block with a wired connection to the block
with the value you want to write to the wireless block (Figure 62).
Figure 62. Wireless write connection
8. From the Blocks menu, choose Wireless. and click in the design space
to place a wireless block. The Wireless Connection Properties dialog
box appears (Figure 63 on page 90).
