Chapter 3 Configuring the Tracer MP580/581
42 CNT-SVP01C-EN

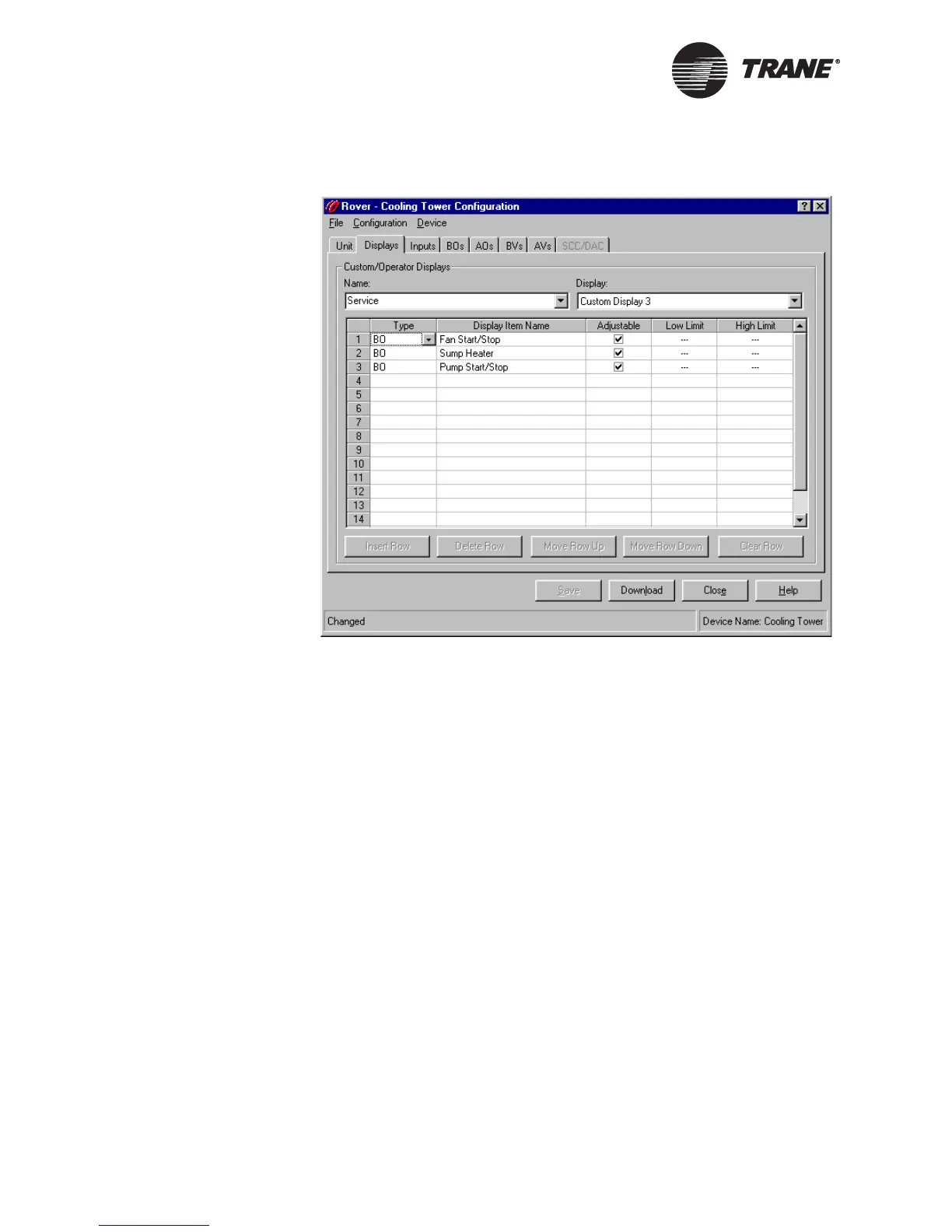

Figure 30. Device configuration Displays tab custom display
3. In the Name list, click the display you want to configure. The configu-
ration information for that display appears in the tab.
You can also select the display by clicking the display number in the
Display list. The Name and Display lists are linked so that display
name and display number are always displayed together.
4. If you want to change the display name, highlight the text and type
the new name.
Use a descriptive name because it appears on the operator display
and the Active Device View workspace.
5. Click in the first row of the Type column. Click the down arrow. The
Type list appears.
6. In the Type list, click the type of item you want to display.
The types include: inputs, output, and variables.
7. Click in the first row of the Display Item Name column. Click the
down arrow. The Display Item Name list appears.
8. In the Display Item Name list, click the name of the item you want to
display.
