Configuring the operator display
CNT-SVP01C-EN 43
9. For outputs and variables with an operator display/service tool con-
trol source, click to select the check box in the Adjustable column if
you want the item to be adjustable.
If a variable is adjustable, it can be changed from the operator dis-
play. For information on setting a variable control source, see “Config-
uring variables” on page 31. If an output is adjustable, it can be
overridden from the operator display.
10. If the item is an analog output or variable, and it is adjustable, type
the low and high limits in the columns.
11. Repeat steps 5 through 10 for additional items you want in the cus-
tom display.
Leave blank rows to separate groups of items in the display. Four
items appear per screen on the operator display.
12. Complete one of the following options.
• Click another display name in the Name list to edit another dis-
play.
• Click another tab to set up another item.
• Click the Download button to send your changes to the Tracer
MP580/581. (If the Security Logon dialog box appears, log on.)
Click Close to close the Configuration dialog box. The changes
appear on the operator display custom screen (Figure 31).

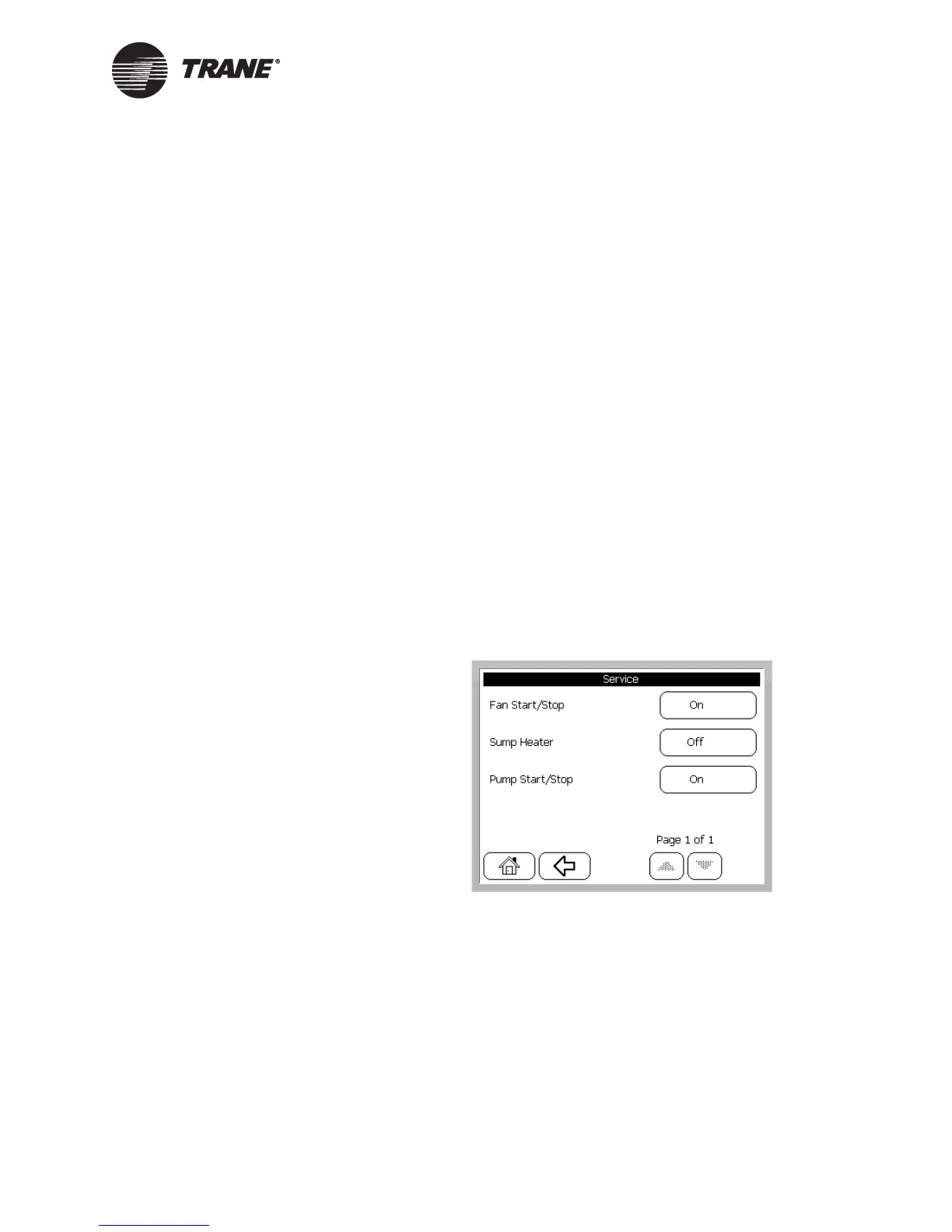

Figure 31. Custom screen on the operator display
