Viewing the status of binary and analog outputs
CNT-SVP01C-EN 5
Viewing the status of binary and
analog outputs
You can view the current status of each hardware output, binary and ana-
log, on the Tracer MP580/581. The status table includes what is currently
controlling the output. Valid control sources, in order of priority, are as
follows (“None” is displayed if there is no control source):
Operator display or Rover service tool (highest priority)
Program within the Tracer MP580/581 controller
Tracer Summit building automation system
To view the status of binary and analog outputs:
X In the Active Device View, click the BOs tab (Figure 4) for the status
of the binary outputs or the AOs tab (Figure 5 on page 6) for the sta-
tus of the analog outputs.

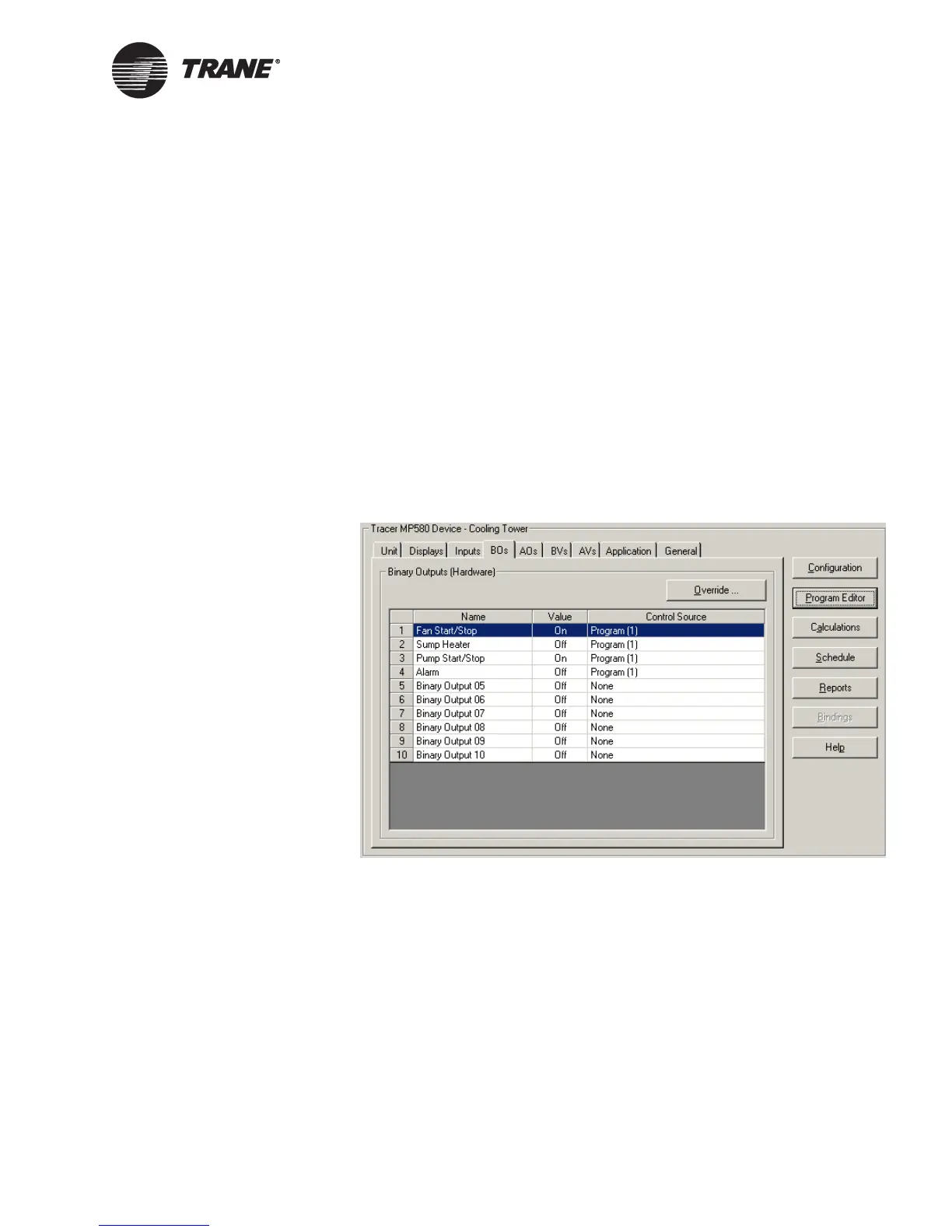

Figure 4. Device status BOs tab
