Chapter 7 Creating a graphical program
82 CNT-SVP01C-EN
Setting page width and size
The page size and layout you choose impacts the design space. For exam-
ple, if you want to have a wider and shorter space, choose the landscape
option. If you want to print your programs on 11 × 17 in. paper, choose
that option.
To set page width and size:
1. From the File menu, choose Page Setup. The Page Setup dialog box
appears.
2. Set the paper size, orientation, and margins. These settings apply to
the TGP editor design space.
3. Click the Print Setup button. The Print Setup dialog box appears.
4. Set the paper size and orientation to implement these settings on
paper when the program is printed.
5. Click OK. The Print Setup dialog box closes.
6. Click OK. The Page Setup dialog box closes, and the design space
changes to the new setting.
Adding a block
To add a block:
1. From the Blocks menu, choose the type of block you want to add. See
Figure 52 for an example. The cursor changes to a cross-hair (;) when
over the design space.

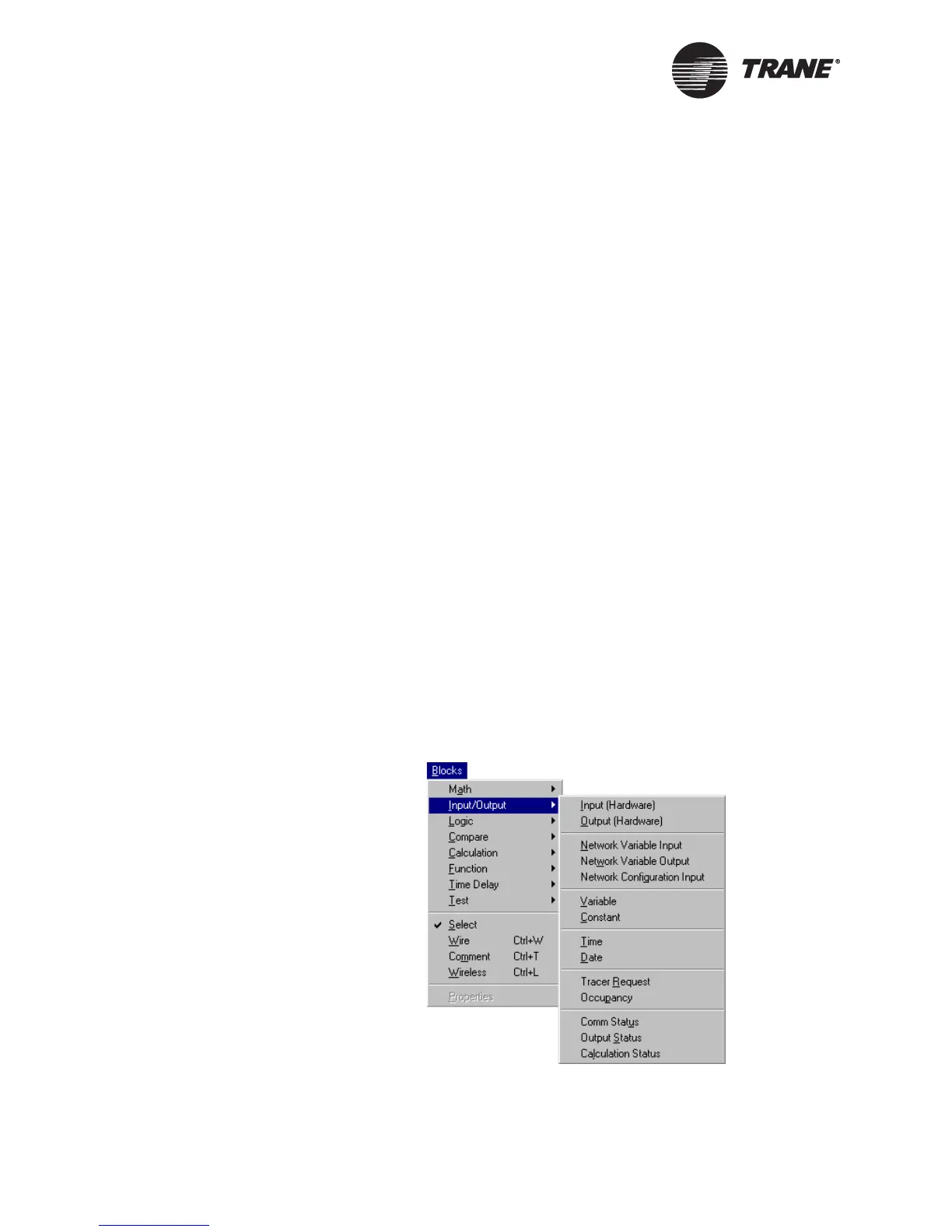

Figure 52. Choosing Input (Hardware) from the Input/Output Blocks
menu
