Editing program properties
CNT-SVP01C-EN 81

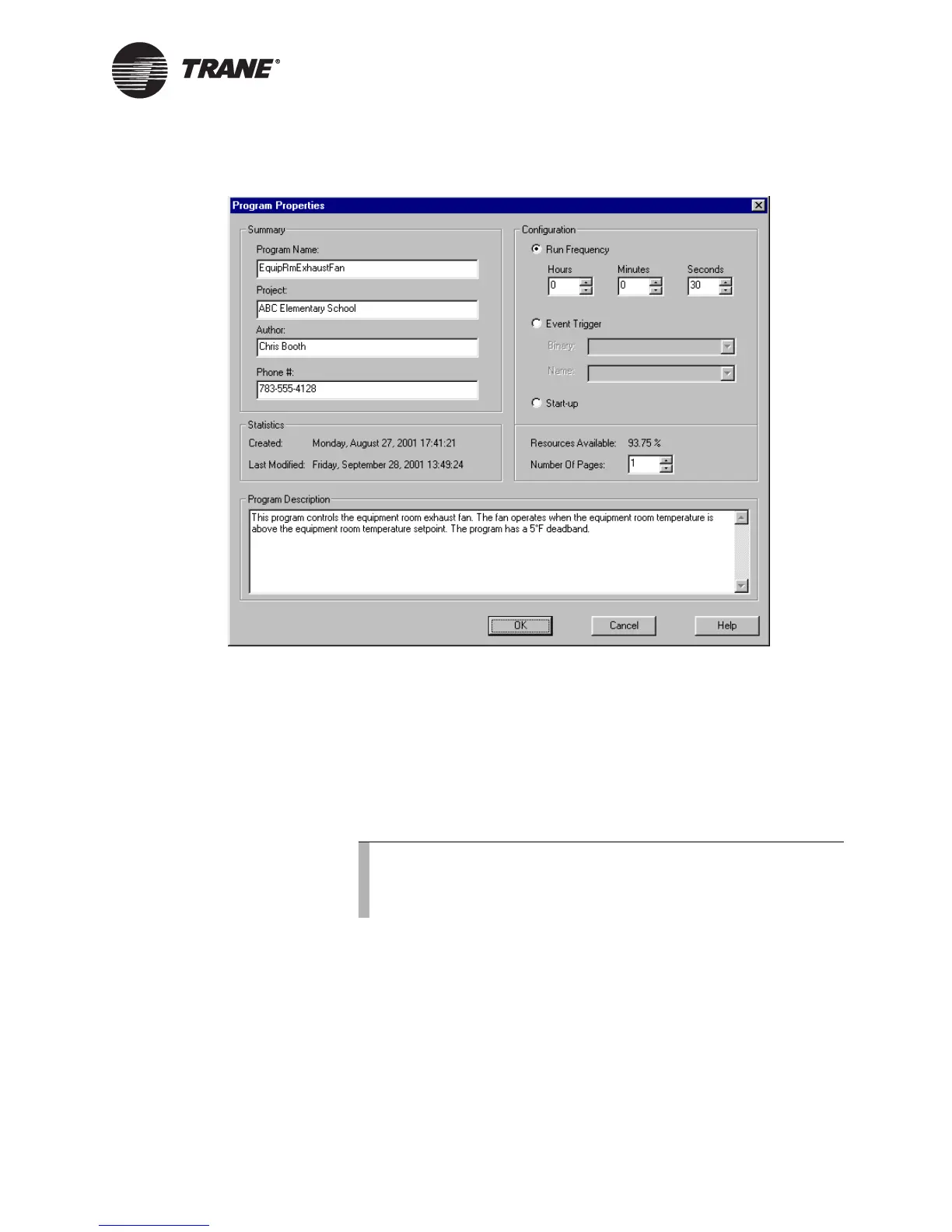

Figure 51. Program Properties dialog box
2. In the Program Name field, type a name for your program.
The name may be up to 32 characters in length. Do not use spaces or
special characters except for an underscore in program names.
3. Type your name, project name, and phone number in the appropriate
fields.
This information appears on the printout of the program.
4. Under Configuration, click one of the Run Frequency options.
5. In the Number of Pages field, type the number of pages you need to
draw your program.
The allowable range is one to five pages. You can always change the
number if you find that you have too few or too many pages.
6. In the Program Description field, type a description of your program.
7. Click OK.
Note:
When choosing Run Frequency, keep in mind that universal
input status from expansion modules is updated every
2 seconds.
