Chapter 2 Viewing status
10 CNT-SVP01C-EN
and analog variables, see “Configuring variables” on page 31. Valid con-
trol sources include the following:
• Operator display or Rover service tool
• Program within the Tracer MP580/581 controller
• Tracer Summit building automation system
To view the status of binary and analog variables:
1. In the Active Device View, click the BVs tab (Figure 10) for the status
of the binary variables or the AVs tab (Figure 11 on page 11) for the
status of the analog variables.
2. Click the Tracer Summit Binary Variables option, the Local Binary
Variables option, the Tracer Summit Analog Variables option, or the
Local Analog Variables option to view the list of variables you want.
Uploading the variables may take a few seconds.

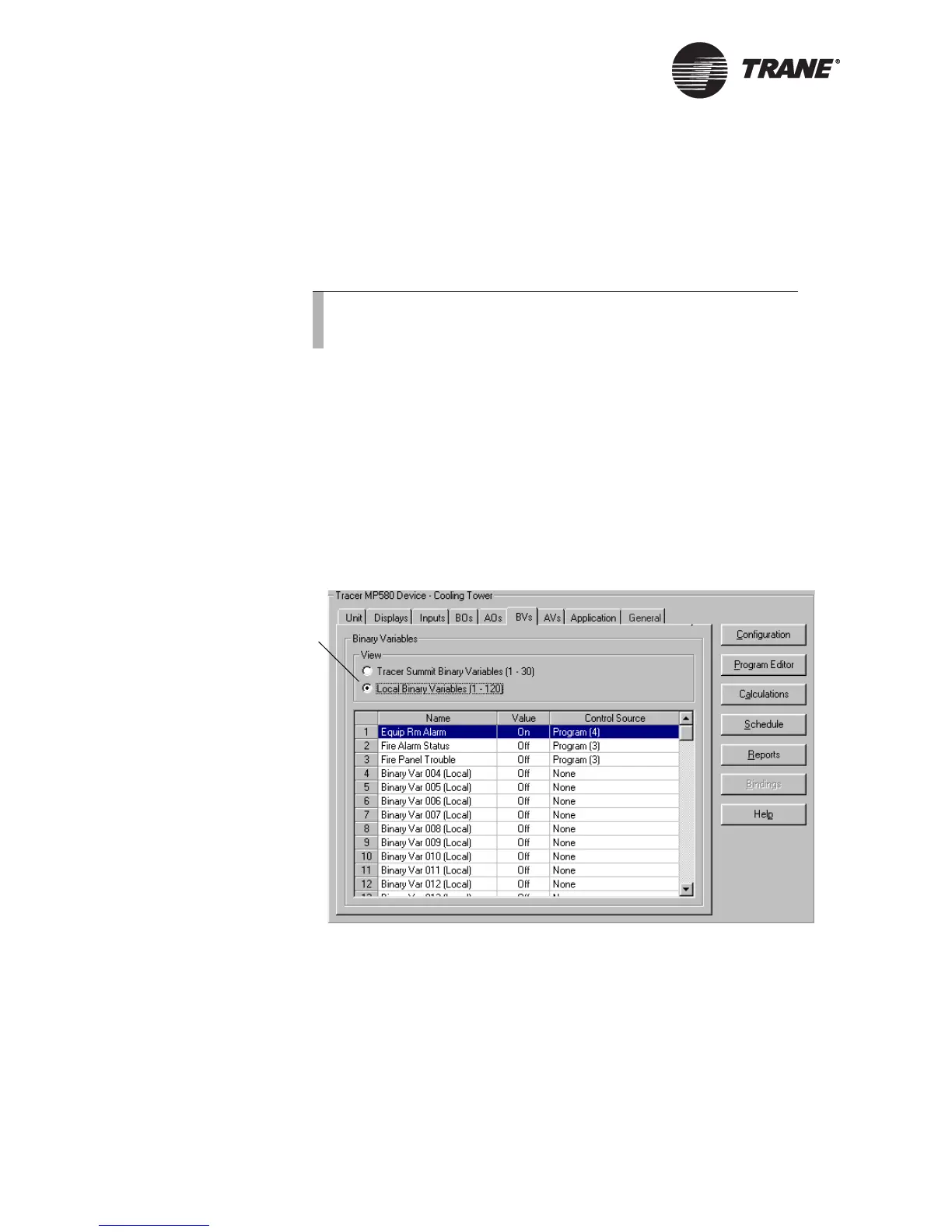

Figure 10. Device status BVs tab displaying local binary variables
Note:
When Tracer Summit is the control source, no graphical pro-
gramming is required. The variable can be controlled directly.
Local Binary
Variables option
