Chapter 3 Configuring the Tracer MP580/581
40 CNT-SVP01C-EN

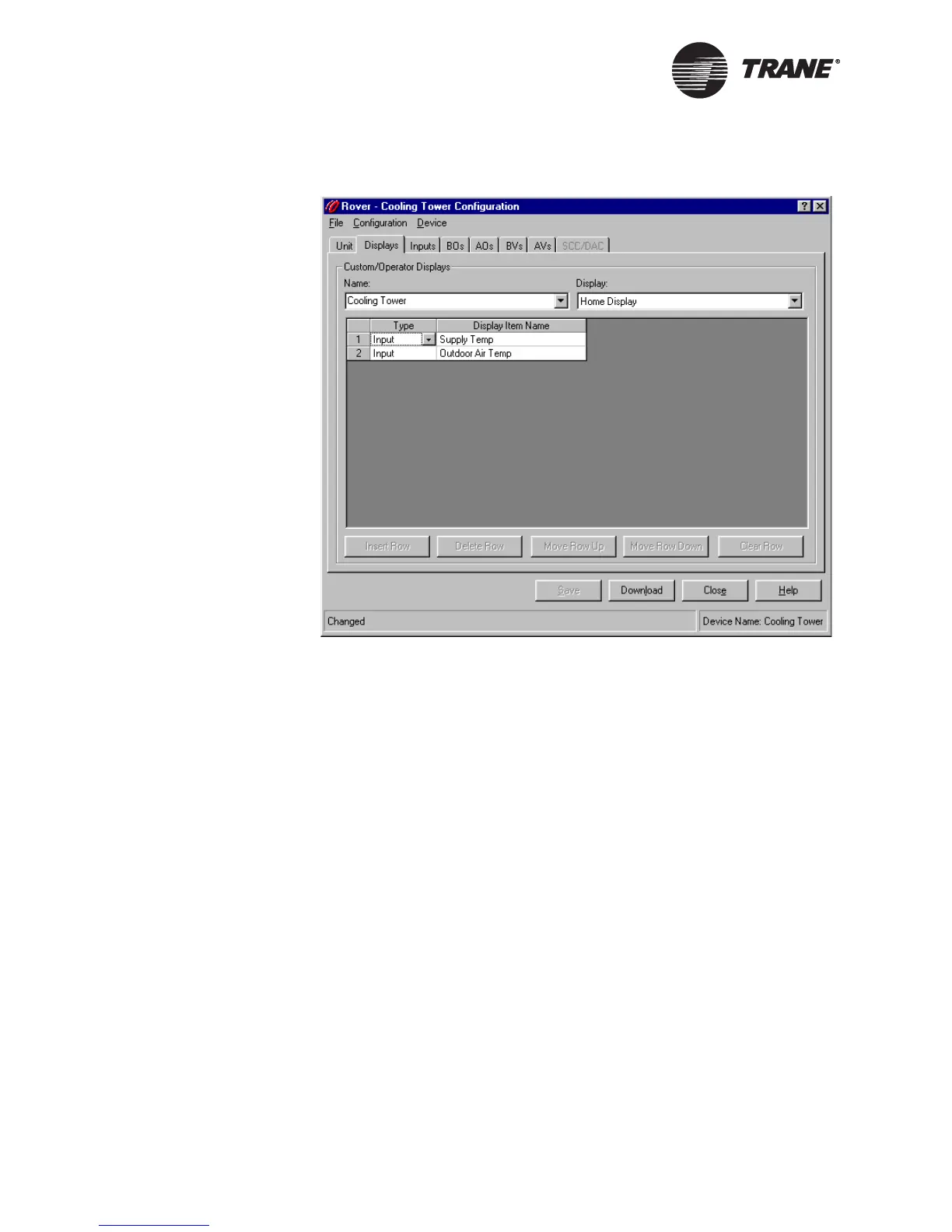

Figure 28. Device configuration Displays tab
3. In the Name list, click Home Display. The configuration information
appears in the tab.
4. If you want to change the display name, highlight the text and type a
new name.
Use a descriptive name because it appears on the operator display
and the Active Device View workspace.
5. Click in the first row of the Type column. Click the down arrow. The
Type list appears.
6. In the Type list, click the type of item you want to display.
The types include: inputs, outputs, and variables.
7. Click in the first row of the Display Item Name column. Click the
down arrow. The Display Item Name list appears.
8. In the Display Item Name list, click the name of the item you want to
display.
9. Repeat steps 5–8 for row 2.
10. Complete one of the following options:
• Click another display name in the Name list to edit another dis-
play.
• Click another tab to set up another item.
