Dimensions
The following figures illustrate dimensions for the expansion modules. DIN width measurements
help determine how many modules can be installed on a DIN rail; use the following standard:
DIN Standard 43 880 standard profile, Built-in Equipment for Electrical Installations, Overall
Dimensions and Related Mounting Dimensions.
*One DIN unit = 18 mm.

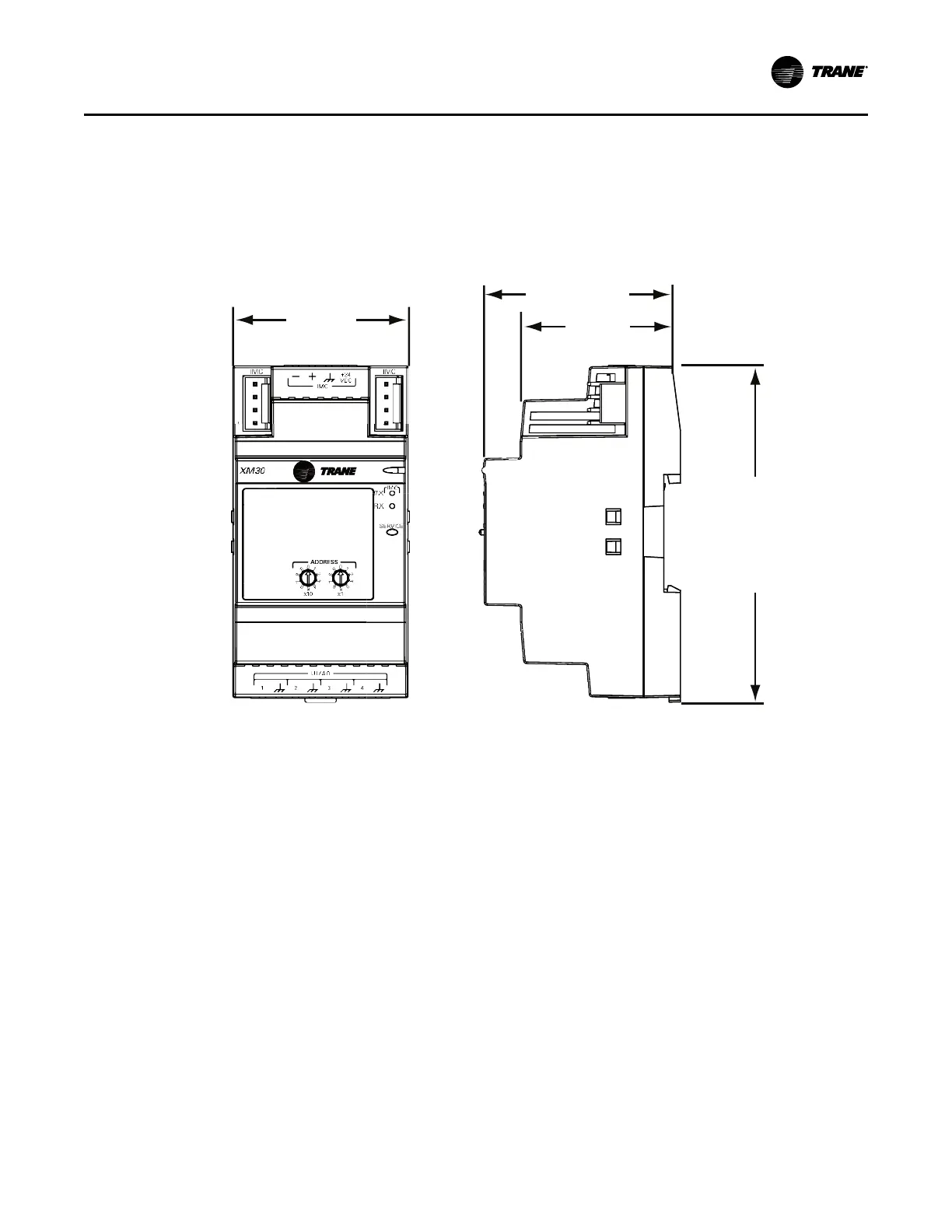

Figure 1. XM30 dimensions
ADDRESS
ADDRESS
ADDRESS
2.11 in. (53.55 mm)
*3 DIN units
2.17 in. (55 mm)
1.73 in.
(44 mm)
4.00 in.
(101.6 mm)
