Trane Tracer ZN524 - Wiring Diagrams for Specific Options; Hot Gas Reheat Wiring

Trane Tracer ZN524
52 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
CNT-SVX11A-EN 19

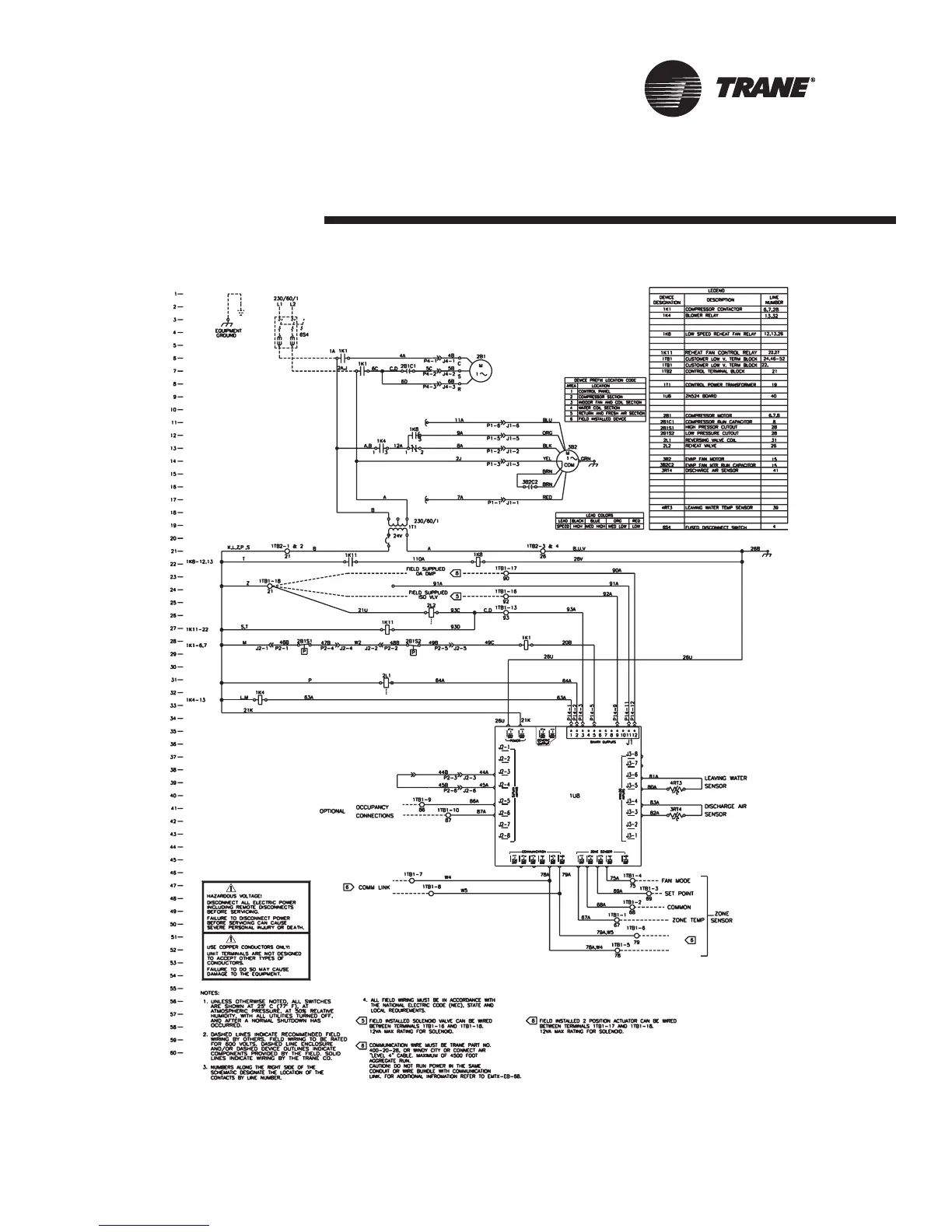

Typical wiring diagram
Figure 13: Wiring
diagram with Hot Gas
Reheat option
