Trane Tracker Version 12 User Manual

®
Chapter 6 PC workstation wiring
52 BMTK-SVN01D-EN
Ethernet connection to PC workstation
Connecting over an existing LAN
To make an Ethernet LAN connection between the Tracker controller and
a Tracker PC Workstation through an existing customer LAN, you need
two CAT 5 patch cables.
1. Connect one end of the first CAT 5 patch cable to the RJ-45 Ethernet
port on the bottom side of the Tracker controller (Figure 27 on
page 52).
2. Connect the other end of the cable to an RJ-45 Ethernet wall jack
near the controller.
3. Connect one end of the second CAT 5 patch cable to an RJ-45 Ether-
net wall jack near the Tracker PC Workstation.
4. Connect the other end of the cable to the RJ-45 Ethernet port on the
PC workstation.

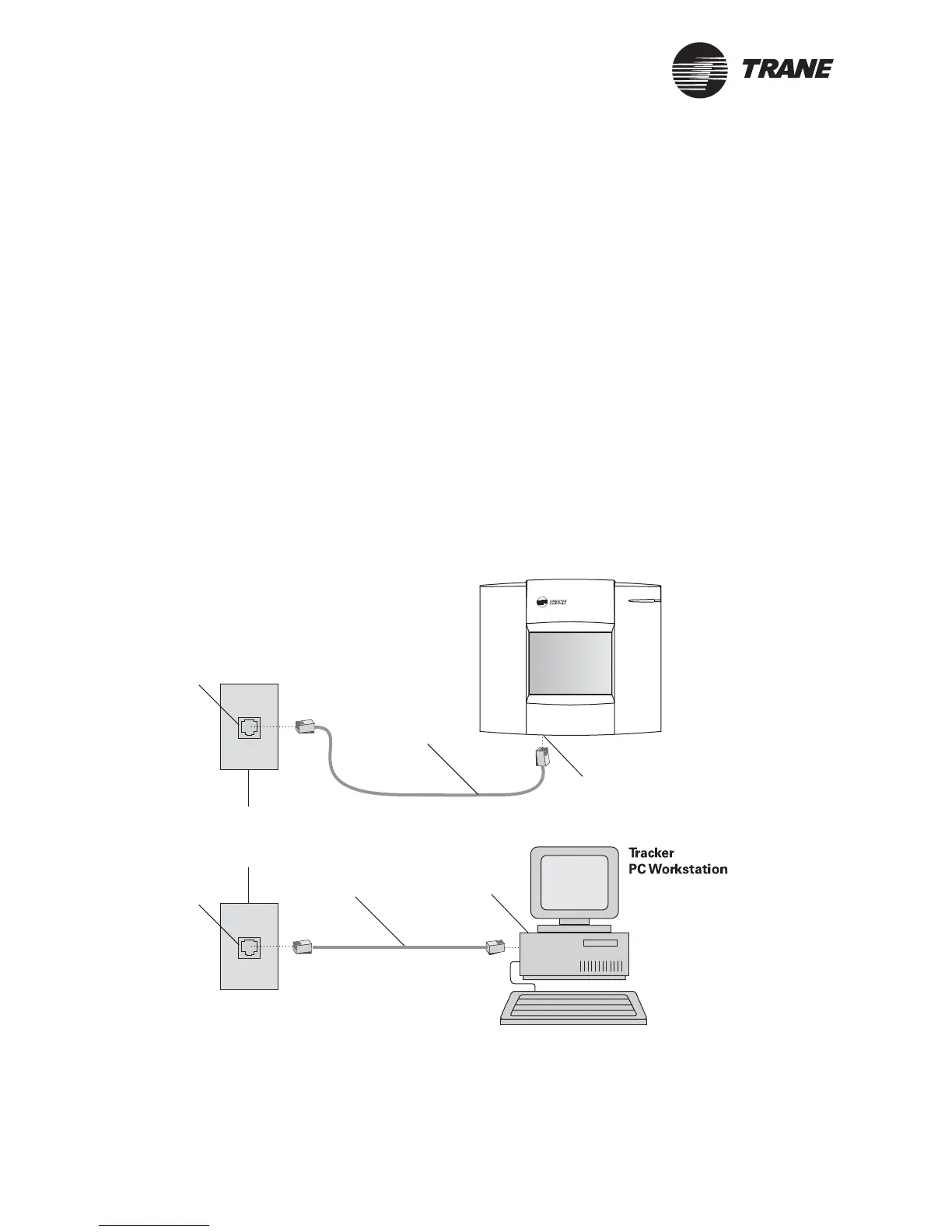

Figure 27. Tracker Ethernet LAN connection to a PC workstation over an existing LAN
RJ-45
Ethernet
LAN jack
RJ-45 Ethernet
LAN (bottom side)port
RJ-45 Ethernet
LAN (back)port
CAT 5
patch cable
RJ-45
Ethernet
LAN jack
CAT 5
patch cable
Tracker
Controller
Existing LAN
