Trane Tracker Version 12 User Manual

®
Chapter 6 PC workstation wiring
54 BMTK-SVN01D-EN
Connecting with one cable
To make an Ethernet connection between the Tracker controller and a
Tracker PC Workstation using one cable, you need one CAT 5 crossover
cable.
1. Connect one end of the CAT 5 crossover cable to the RJ-45 Ethernet
LAN port on the bottom side of the Tracker controller (Figure 29).
2. Connect the other end of the cable to the RJ-45 Ethernet LAN port on
the Tracker PC Workstation.

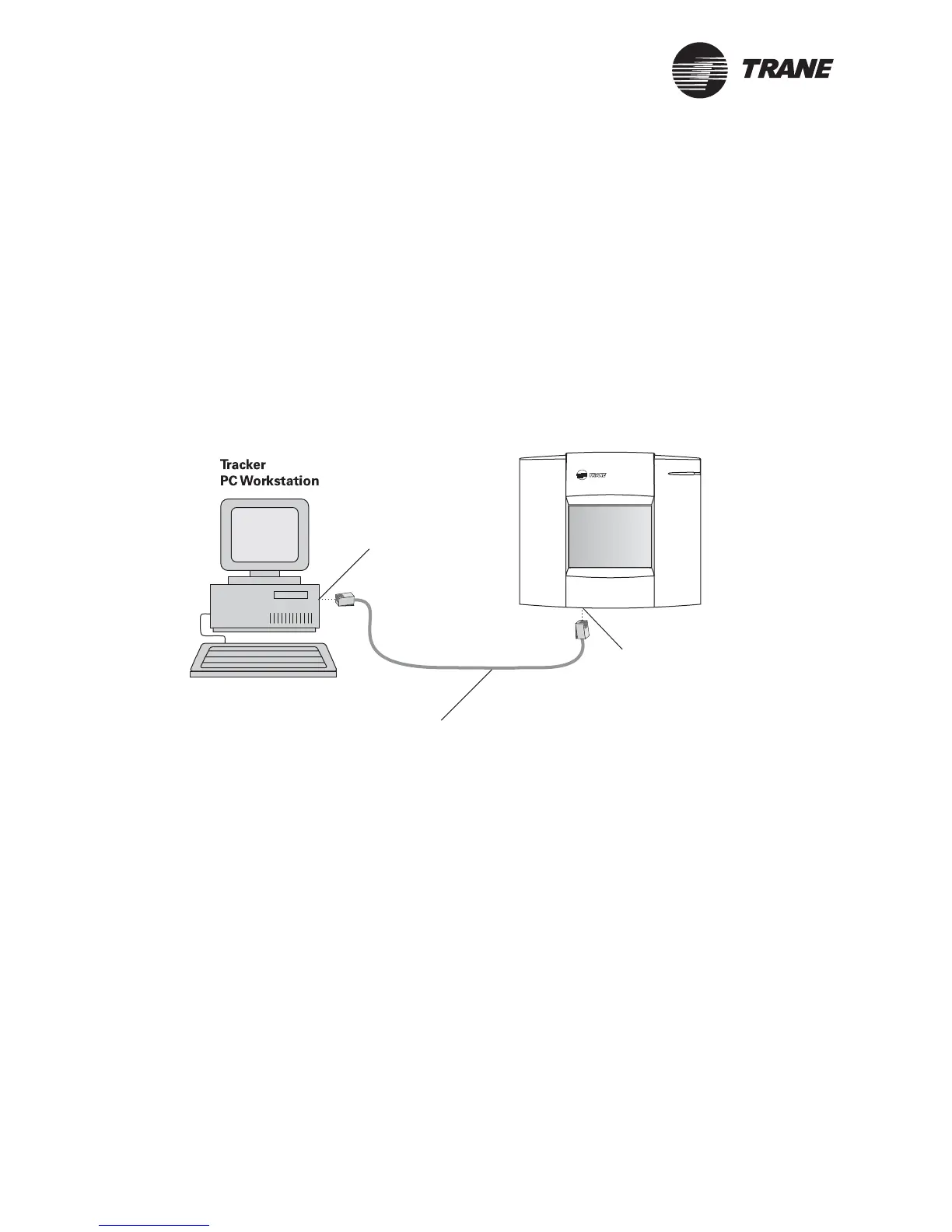

Figure 29. Tracker Ethernet LAN connection to a PC workstation with one cable
RJ-45 Ethernet
LAN (bottom side)port
RJ-45 Ethernet
LAN (back)port
Tracker
Controller
CAT 5
crossover cable
