Dimensions and Weights
44 UNT-SVX07J-EN
Force Flo Horizontal and Inverted Units

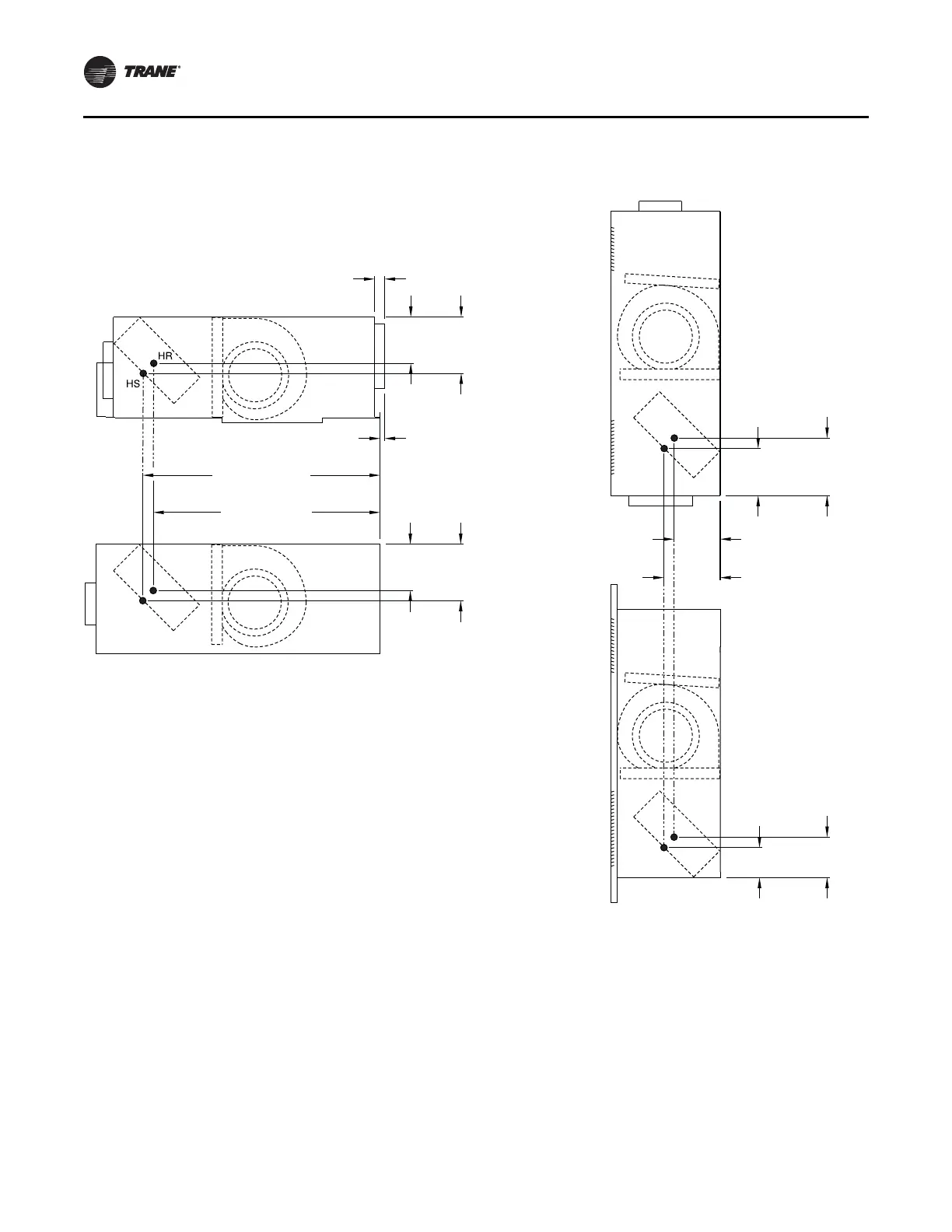

Figure 21. Coil connections for Force Flo cabinet heater horizontal units and inverted vertical units
Horizontal Concealed
Horizontal Recessed
(recess panel not shown)
1 in.
4 3/8 in.
HR
5 5/16 in.
HS
7/16 in.
22 3/8 in. HS
21 3/8 in. HR
HR
HS
Horizontal Cabinet
4 3/8 in.
HR
5 5/16 in.
HS
Inverted Vertical
Cabinet
HR
HS
4 7/16 in.
HS
5 7/16 in.
HR
4 3/8 in. HR
5 5/16 in. HS
Inverted Vertical
Recessed
HR
HS
2 13/16 in.
HS
3 13/16 in.
HR
