Trane UniTrane User Manual

Dimensions and Weights
46 UNT-SVX07J-EN
Vertical Units

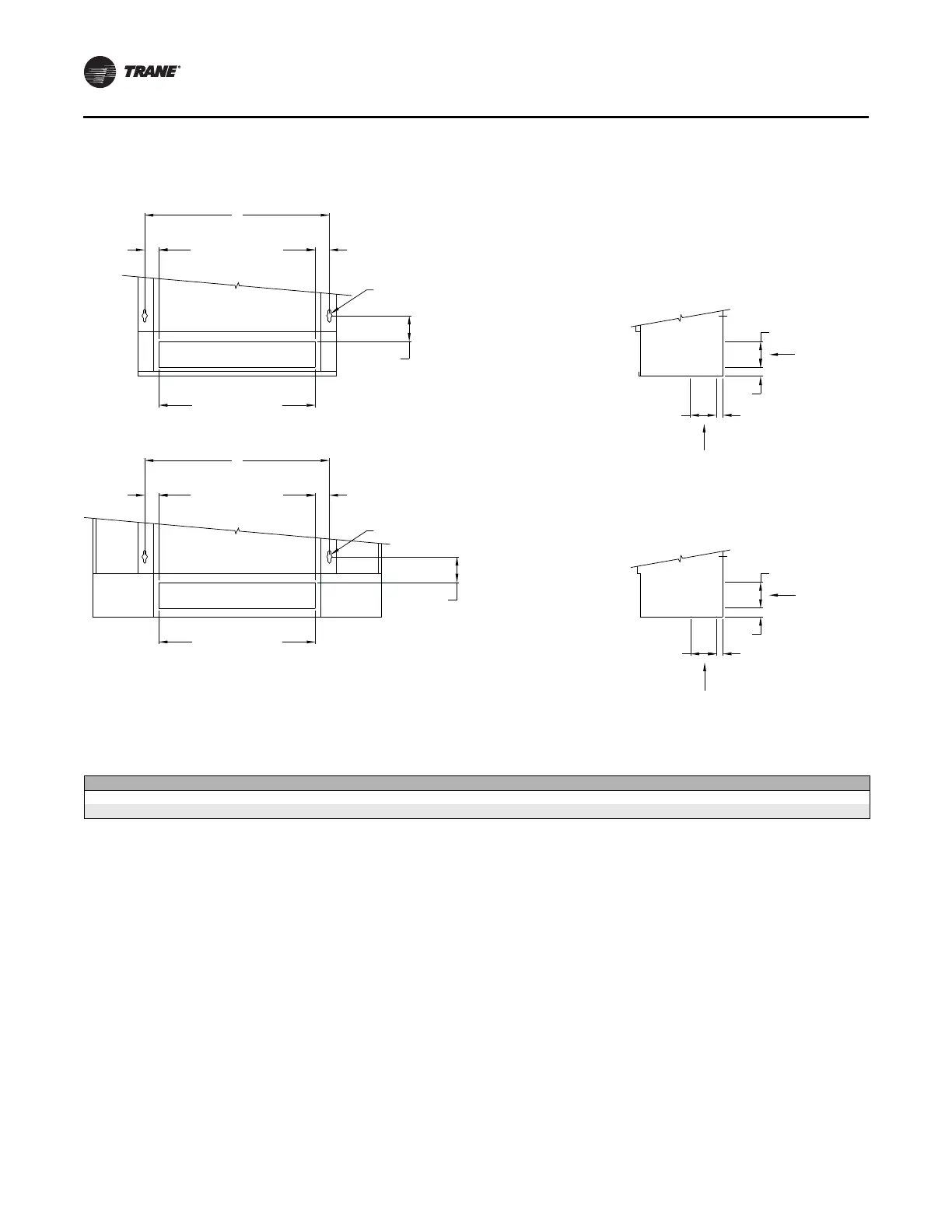

Figure 23. Fresh air openings for vertical units (models A, B, F, H, J, K, L, M, and N
1 5/8 in.
B
A
Outside air
opening - back
Outside air
opening - back
A
Outside air
opening - bottom
B
1 5/8 in.
A
Outside air
opening - back
Outside air
opening - back
A
Outside air
opening - bottom
2 15/16 in.
Keyslot hanger holes
1 5/8 in.
Vertical Cabinet and
Vertical Slope Top Cabinet
Front View
Side View
Vertical Concealed
and Recessed
Keyslot hanger holes
2 15/16 in.
1 5/8 in.
3 in. 3/4 in.
1 in.
3 in.
Outside air
opening - back
Outside air
opening - bottom
Outside air
opening - bottom
3 in.
11/16 in.
1 in.
Outside air
opening - back
3 in.
Table 17. Fresh air opening dimensions (inches) for vertical units
Unit Size 02–03 04 06 08 10–12
A 18 23 32 1/2 41 60
B 21 5/16 26 5/16 35 13/16 44 5/16 63 5/16
