Trane UniTrane User Manual

Dimensions and Weights
UNT-SVX07J-EN 47
Wall Box

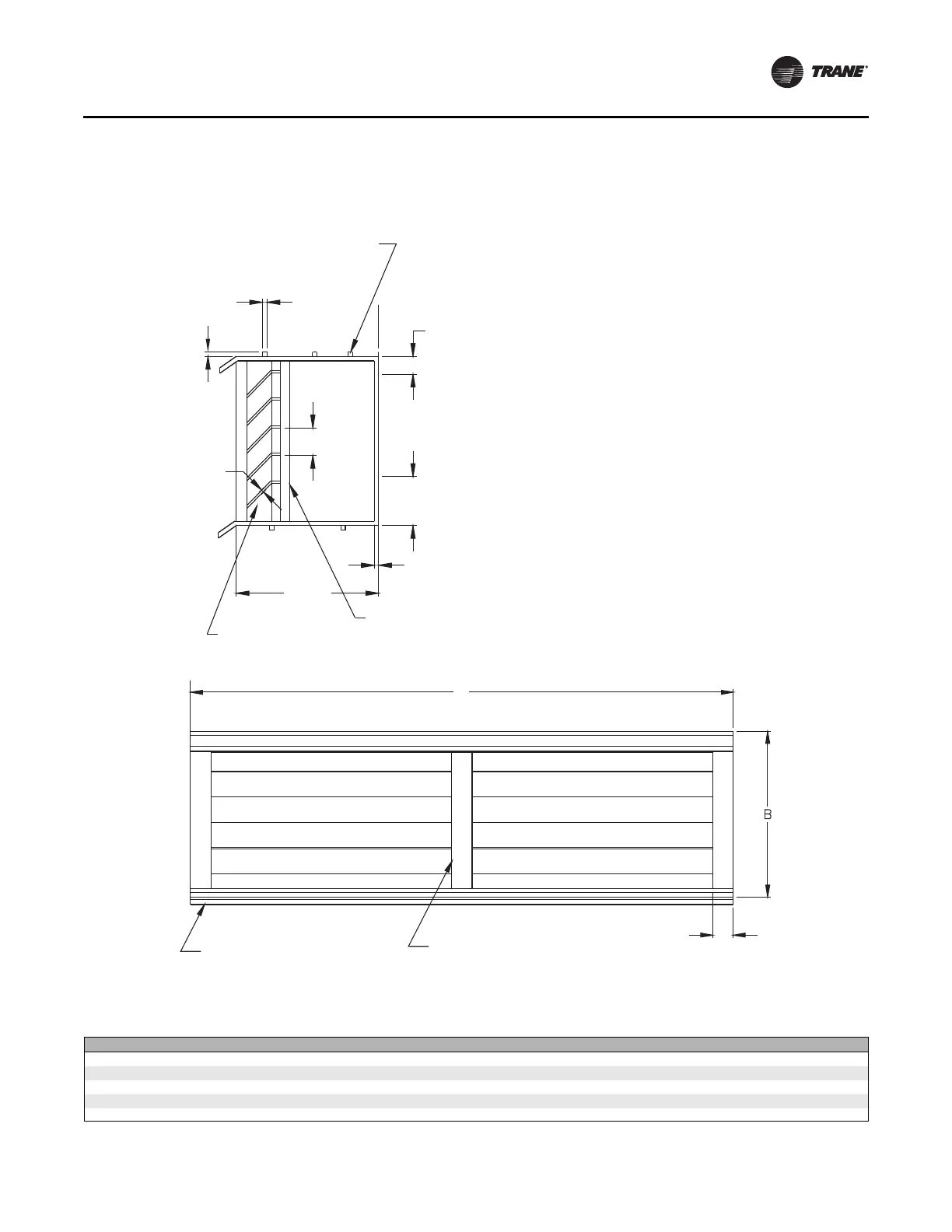

Figure 24. Wall box
Additional internal
supports equally spaced
not to exceed 12 inches O.C.
Continuous drip lip
top and bottom
B
A
5/8 in.
1/2 in.
1 3/8 in.
1/8 in.
Woven aluminum
insect screen
Clearance for
drainage
4 in.
1/2 in.
3/4 in.
1/8 in.
1/8 in.
Continuous mortar
ribs top and bottom
Table 18. Wall box dimensions (inches)
Unit Size (ref. only) Dimensions A x B Internal Supports
02–03 24 3/8 x 4 3/4 1
04 24 3/8 x 7 1/2 1
06 33 1/8 x 7 1/2 2
08 37 1/2 x 7 1/2 3
10–12 58 1/4 x 7 1/2 4
