Trane UniTrane - Projection Panel

Dimensions and Weights
48 UNT-SVX07J-EN
Projection Panel

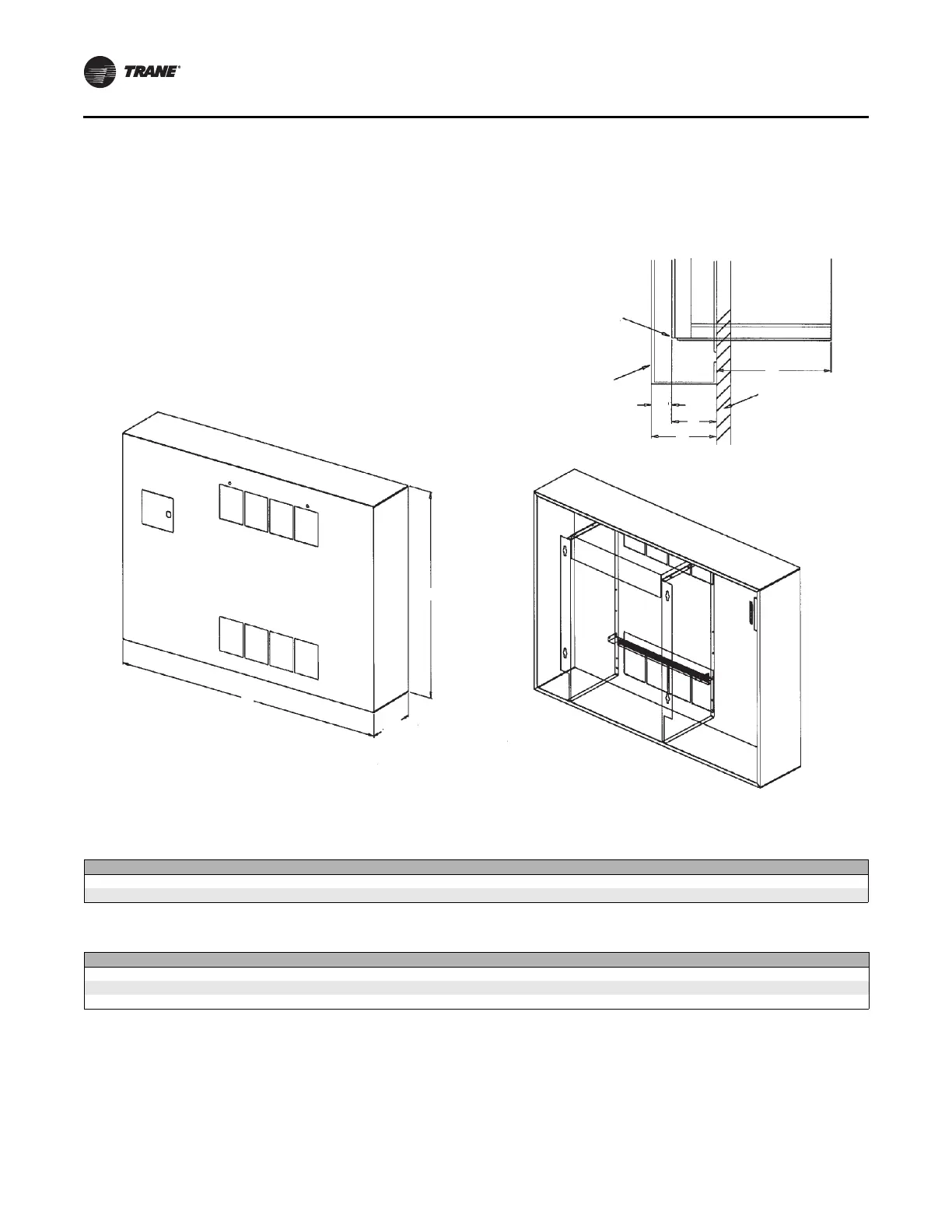

Figure 25. Projection panel
Finished wall
E
Unit chasis end panel
Projection panel
7/8 in.
D
C
A
2 in. min.
6 in. max.
B
Front View ISO
Rear view ISO
Table 19. Projection panel dimensions (inches)
Unit Size 02–03 04 06 08 10–12
A 47 51 63 65 1/2 89 1/2
B 30 30 30 33 1/2 33 1/2
Table 20. Projection panel dimensions (inches)
Unit Size All sizes
C 2 2-1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 2
D 1 1/8 1 5/8 2 1/8 2 5/8 3 1/8 3 5/8 4 1/8 4 5/8 5 1/8 1 1/8
E 8 5/8 8 1/8 7 5/8 7 1/8 6 5/8 6 1/8 5 5/8 5 1/8 4 5/8 8 5/8
