UCM Programming and Operation
Setup Tab
The following are descriptions of each line on the Setup tab. To make changes: Select the
Configure button in Rover and select the Setup tab. Make adjustments if necessary by opening
a drop down arrow or changing a value and press the download button.
Other Fields
Unit Type: Select the proper unit type. The unit type information is maintained in the
controller's EEPROM.
Important: Edit the unit type BEFORE editing any items on the above list!
Unit types available for all versions:
• VariTrane C
• VariTrac - Round
• VariTrane D
• Generic
Unit types available for VAV version 4.0 and above:
• Bypass Damper - Round
• Bypass Damper - Rectangular
• VariTrane F - Round
• VariTrane F - Rectangular
• VariTrac - Rectangular
Editing the unit type also affects the following entries:
• Heat type (The default is none)

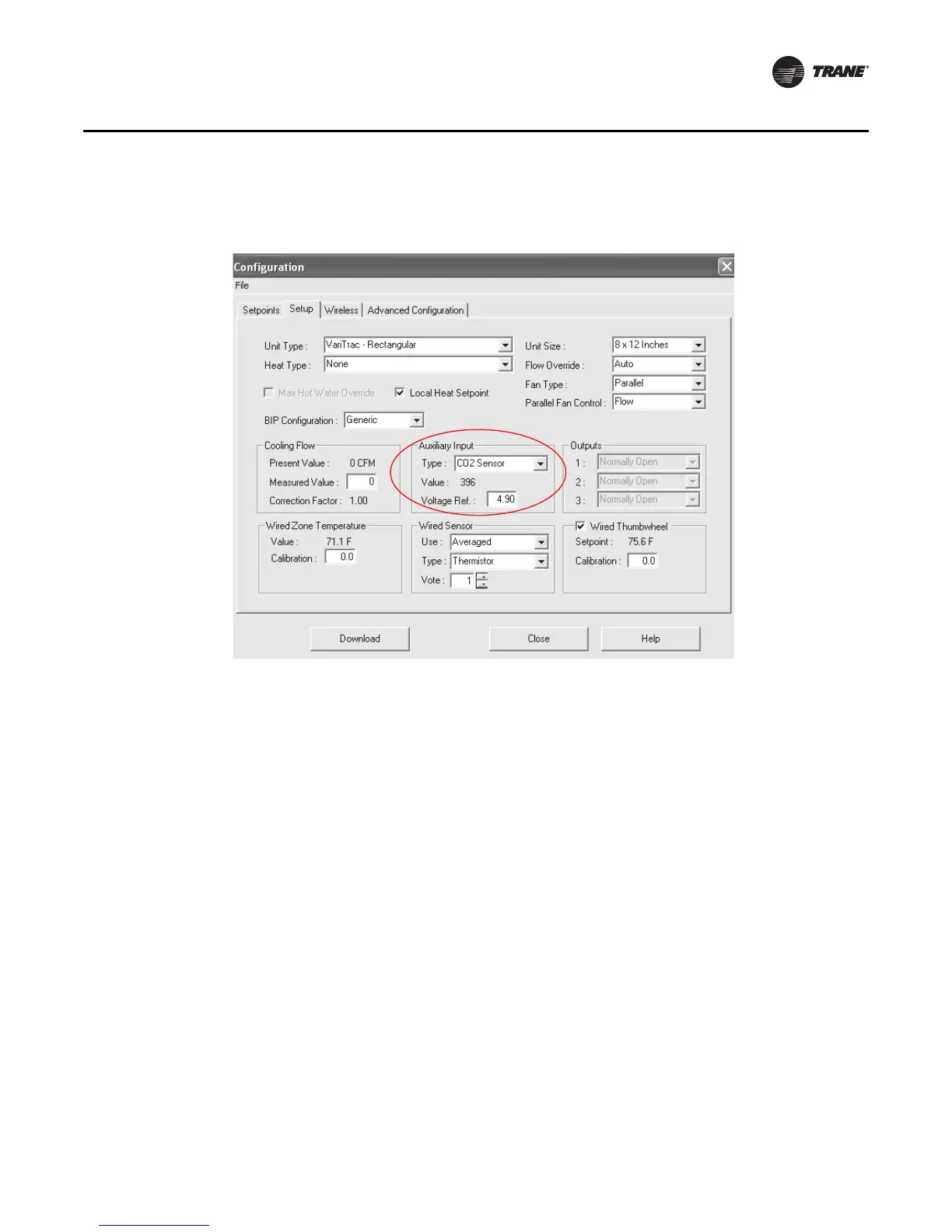

Figure 24. Setup tab
