Pre-Start
Space Temperature Averaging (ReliaTel™ only)
Space temperature averaging is accomplished by wiring a number of remote sensors in a series/
parallel circuit.
Using the BAYSENS016* or BAYSENS077*, at least four sensors are required to accomplish space
temperature averaging. Example #1 illustrates two series circuits with two sensors in each circuit
wired in parallel. The square of any number of remote sensors is required. Example #2 illustrates
three sensors squared in a series/parallel circuit. Using BAYSENS077*, two sensors are required
to accomplish space temperature averaging. Example #3 illustrates the circuit required for this
sensor. Table 4 lists the temperature versus resistance coefficient for all sensors.

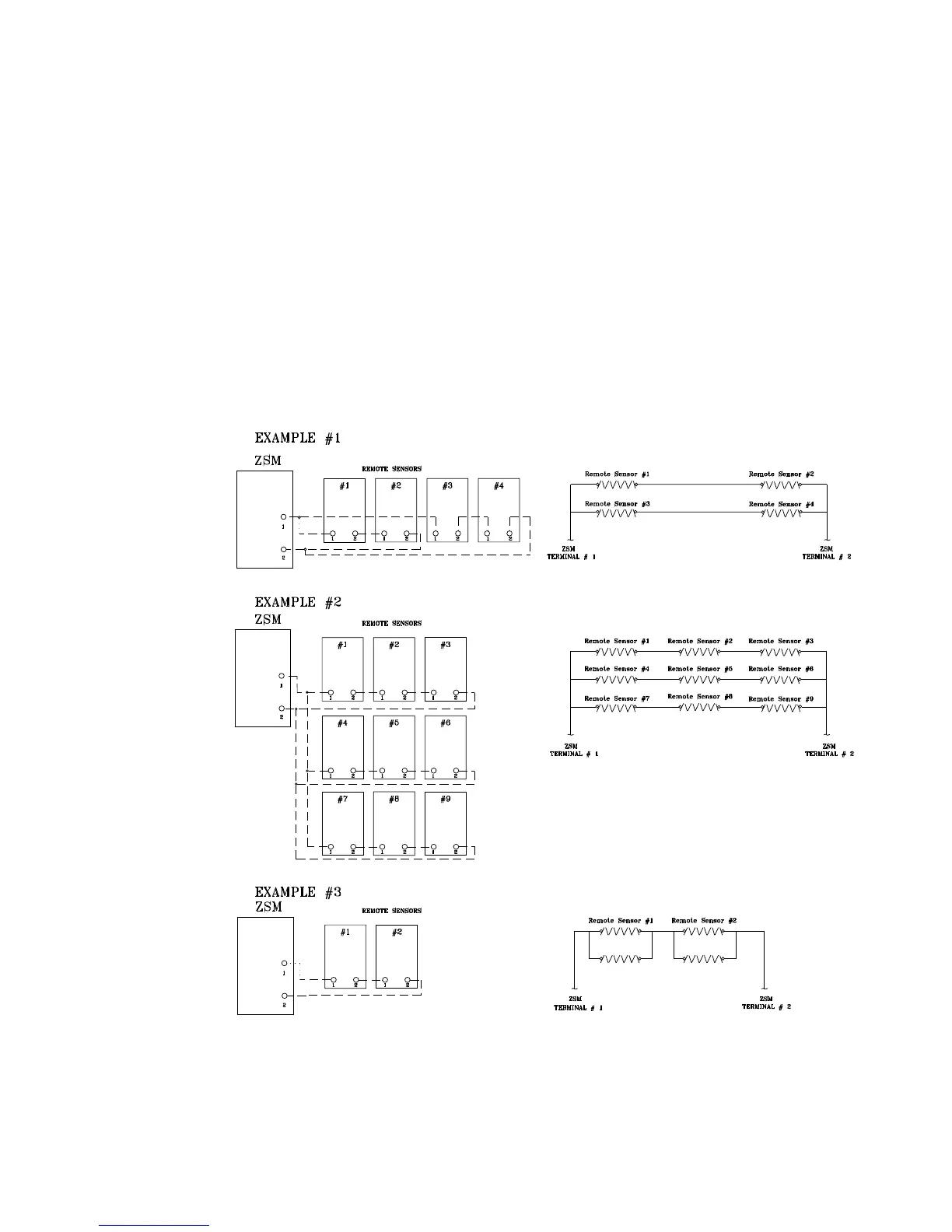

Figure 27. Space temperature averaging

Trane WSC036A Specifications

General

Model	WSC036A
Refrigerant	R-410A
Voltage	208/230V
Phase	1
Cooling Capacity	36000 BTU/h
Heating Capacity	36000 BTU/h
