RT-SVX23D-EN 17
Unit Clearances
Table 2. Typical Unit Weights & Point Loading Data
Net Weight
Accessory 3-5 Tons 6-10 Tons
Economizer 26 36
Barometric Relief 7 10
Powered Exhaust - 80
Motorized Outside Air Damper 20 30
Manual Outside Air Damper 16 26
Roof Curb 70 115
Oversized Motor 5 8
Belt Drive Motor 38 -
Smoke Detector, Return 7 7
Smoke Detector, Supply 5 5
Coil Guards 12 20
Hinged Doors 10 12
Powered Convenience Outlet 38 38
Through the Base Electrical 8 13
Electric Heaters 15 30
Unit Mounted Circuit Breaker 5 5
Unit Mounted Disconnect 5 5
1. Weights for options not listed are < 5 lbs.
2. Net weight should be added to unit weight when ordering factory-
installed accessories.

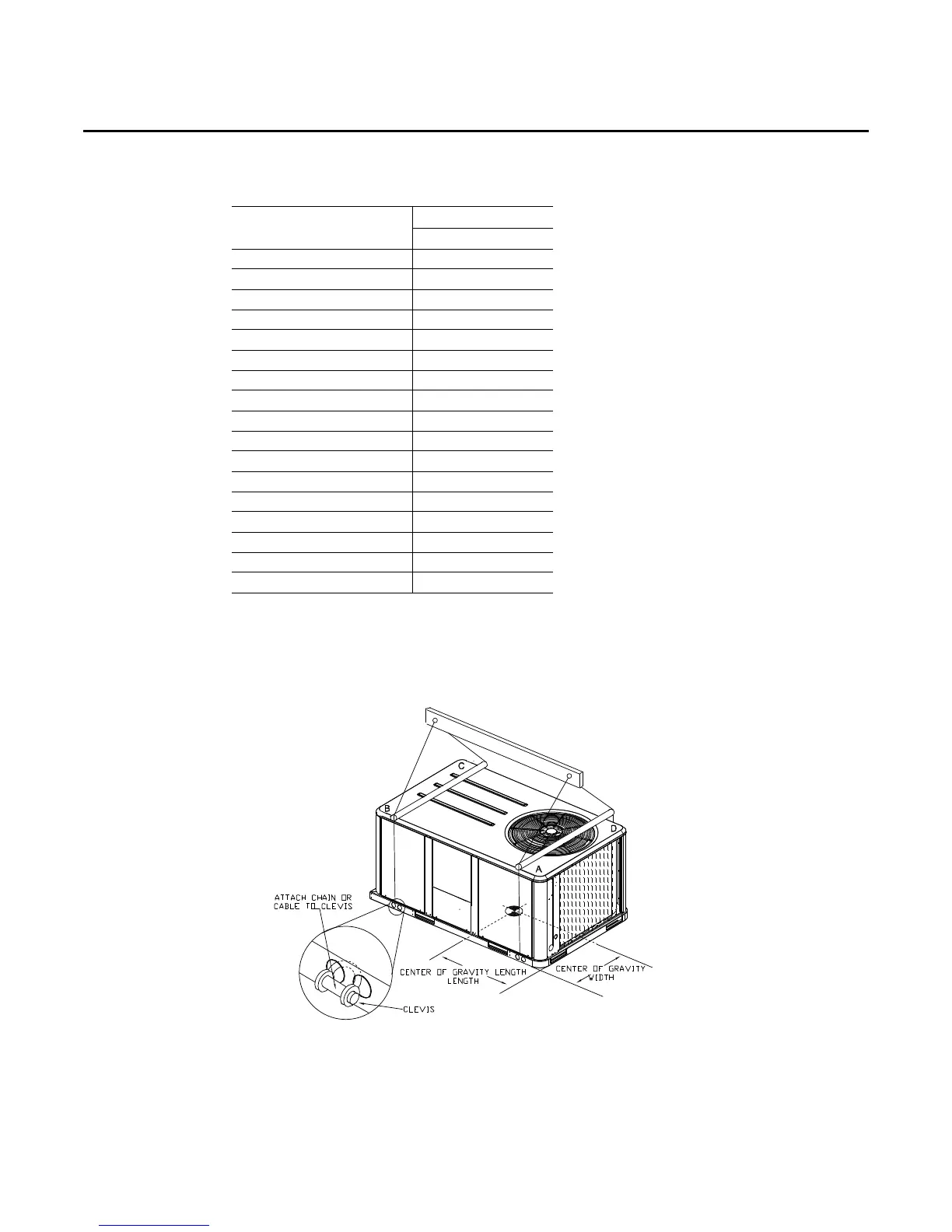

Figure 7. Rigging and Center-of-Gravity Data
