RT-SVX23D-EN 19
Installation

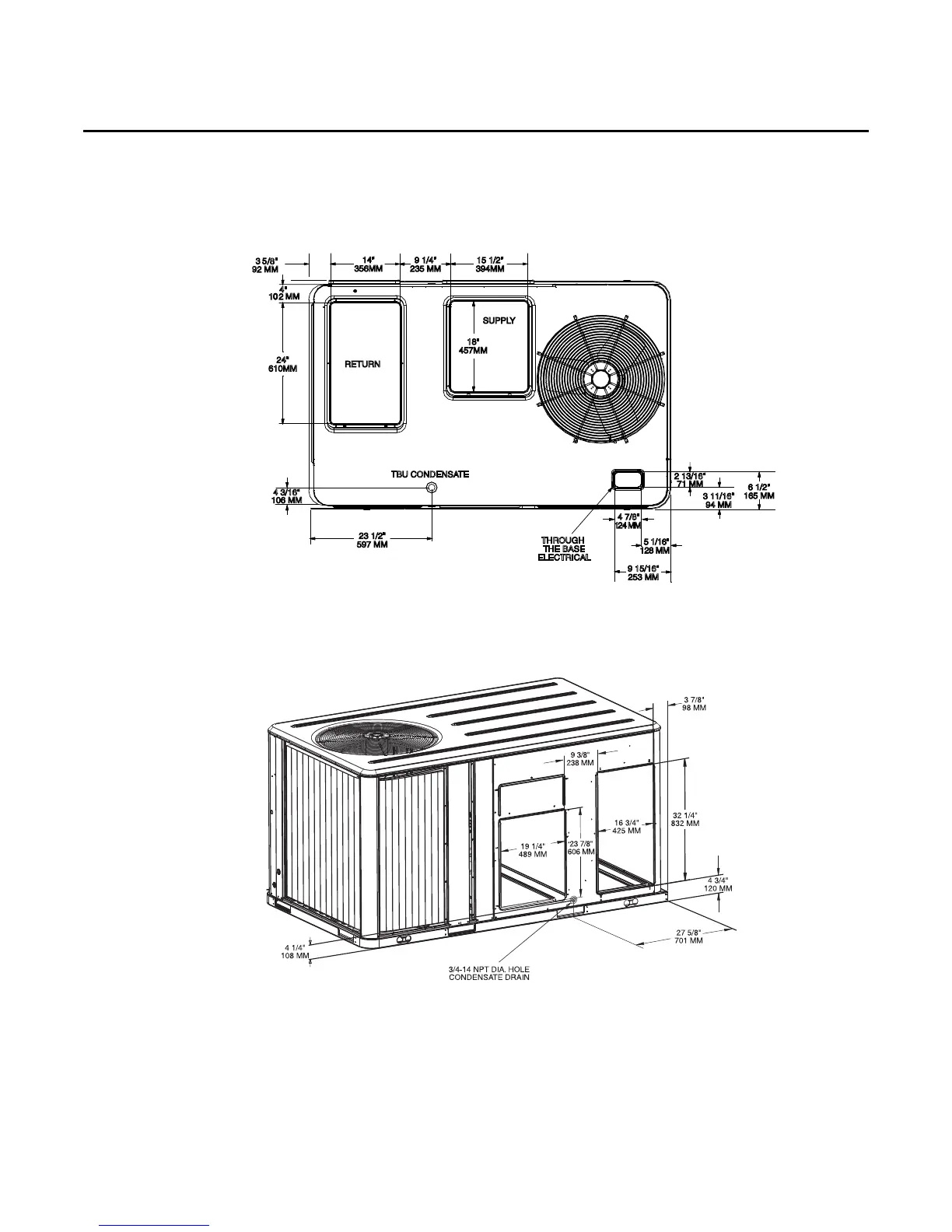

Figure 9. WSC036A-WSC060A, WSC036E, WSC048E Downflow Unit Supply & Return Air
Openings
Figure 10. WSC072A-WSC120A, WSC060E Horizontal Unit Supply & Return Air Openings
Supply
Return
