14 22-1832-13
Electrical
Data

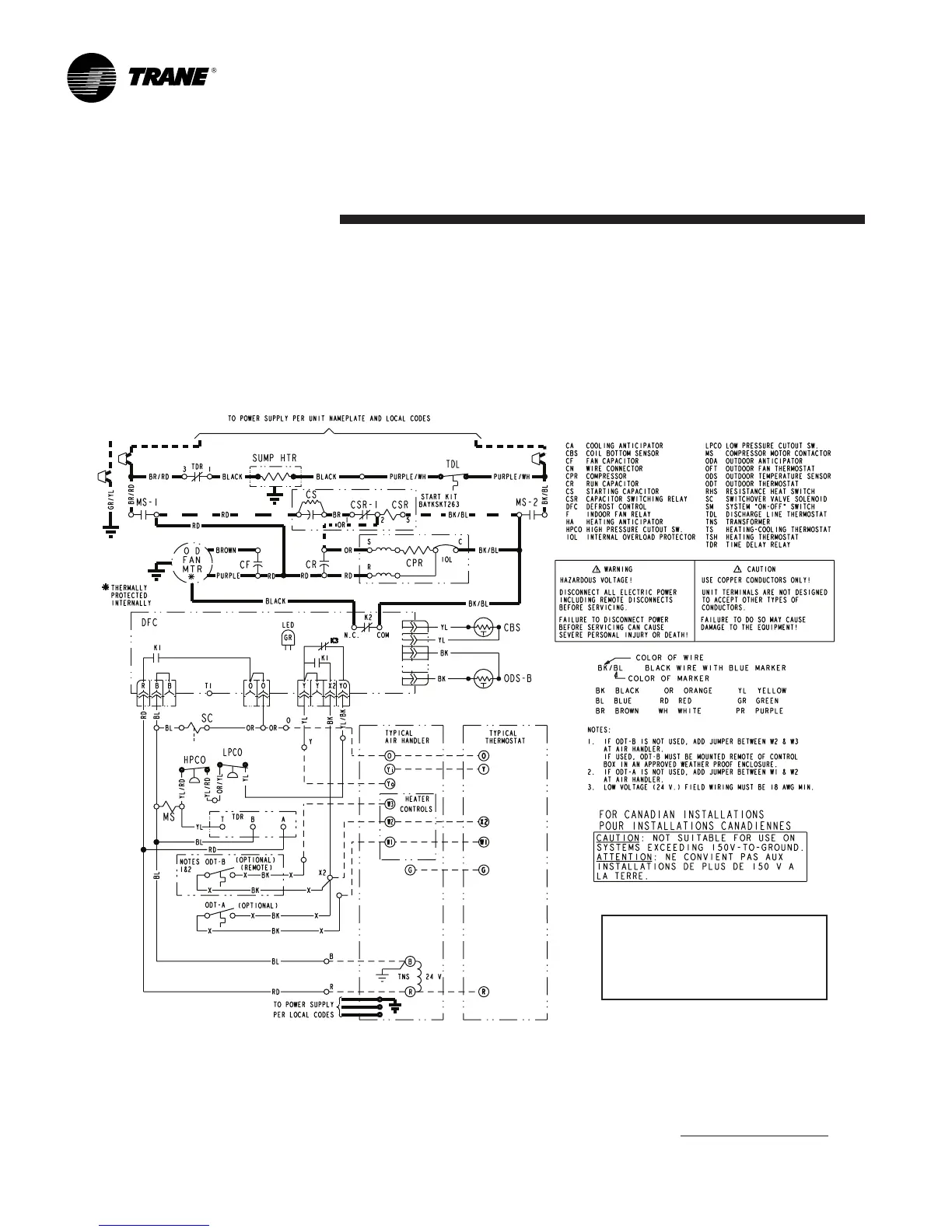

Schematic Diagrams
(SEELEGEND)
4TWR5061E
PrintedFromD157472P02
TDRrelaycyclessumpheatoffdur-
ingcompressoroperationanddelays
energizingthesumpheatfor30mins
after“Y”callisremoved.
