Trane XR15 User Manual

22-1832-13 15

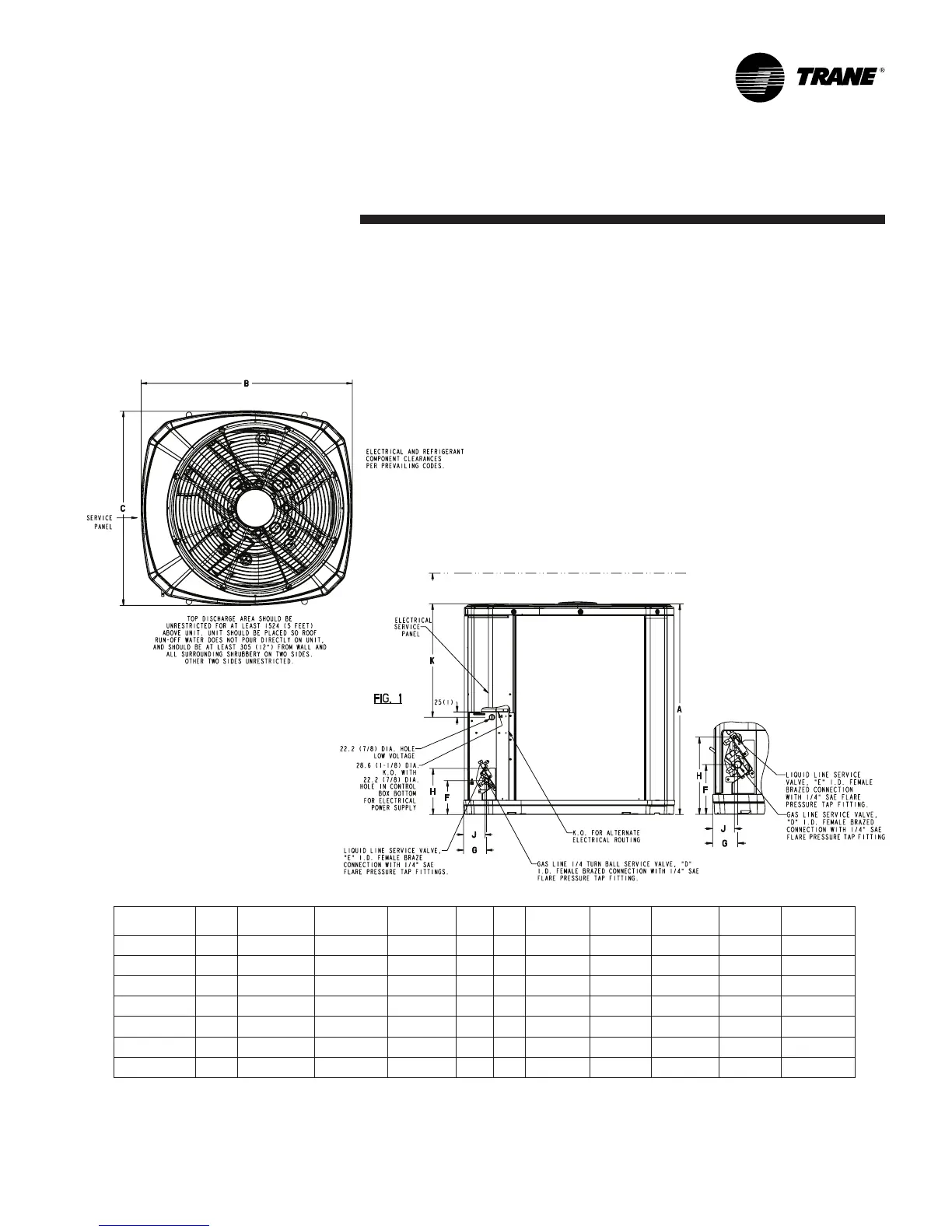

Dimensions
FromDwg.D152898
4TWR5 Outline Drawing
Note: All dimensions are in MM (Inches).
MODELS BASE A B C D E F G H J K
4TWR5018G 4 730(28-3/4) 829(32-5/8) 756(29-3/4) 5/8 3/8 143(5-5/8) 92(3-5/8) 210(8-1/4) 79(3-1/8) 508(20)
4TWR5024G 3 832(32-3/4) 829(32-5/8) 756(29-3/4) 5/8 3/8 143(5-5/8) 92(3-5/8) 210(8-1/4) 79(3-1/8) 508(20)
4TWR5030G 4 841(33-1/8) 946(37-1/4) 870(34-1/4) 3/4 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
4TWR5036G 4 841(33-1/8) 946(37-1/4) 870(34-1/4) 3/4 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
4TWR5042G 4 943(371/8) 946(37-1/4) 870(34-1/4) 3/4 3/8 143(5-5/8) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
4TWR5049E 4 1147(451/8) 946(37-1/4) 870(34-1/4) 7/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
4TWR5061E 4 1147(451/8) 946(37-1/4) 870(34-1/4) 1-1/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)

Trane XR15 Specifications

General

SEER	Up to 16.00
Refrigerant	R-410A
Energy Star	Yes
Heating Capacity (BTU/h)	18, 000-60, 000
HSPF	9.0
Compressor	Climatuff®
Sound Level	72 dB
Cooling Capacity	1.5 - 5 ton
Warranty	10-year limited warranty on compressor and outdoor coil
