RT-SVX31A-EN26
Space Temperature Averaging
ReliaTel™
Space temperature averaging is accomplished by wiring a number of remote sensors in a series/parallel circuit.
Using the BAYSENS016* or BAYSENS017*, at least four sensors are required to accomplish space temperature averaging.

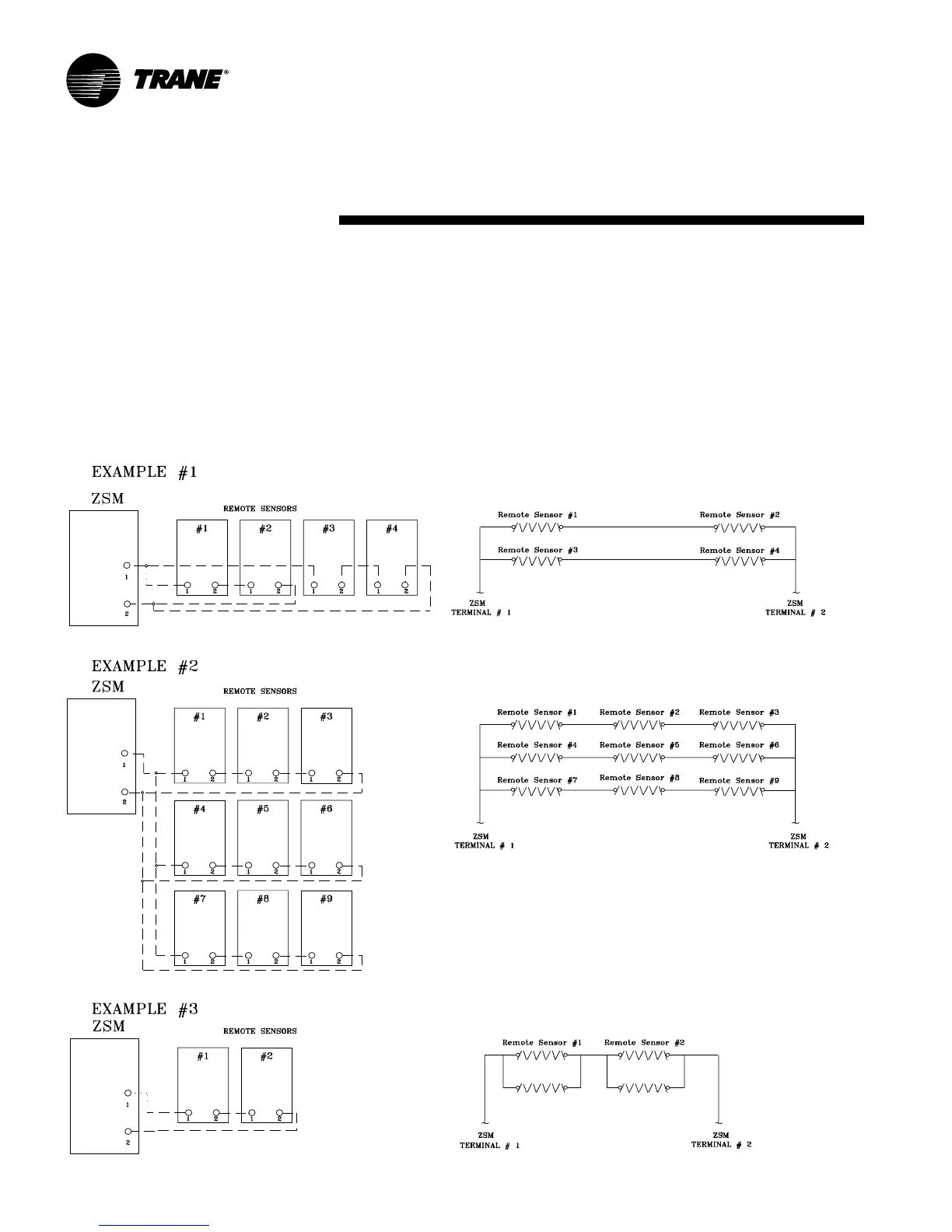

Example #1 illustrates two series circuits with two sensors in each circiut wired in parallel. The square of any number of re-
mote sensors required. Example #2 illustrates three sensors squared in a series/parallel circuit. Using BAYSENS032*, two
sensors are required to accomplish space temperature averaging. Example #3 illustrates the circuit required for this senor.
Table 4 lists the temperature versus resistance coefficient for all sensing.
Use the checklist provided below in conjunction with the “General Unit Requirements” checklist to ensure that the unit is
properly installed and ready for operation.
Installation
