Unit Dimensions
RT-SVX38B-EN 15

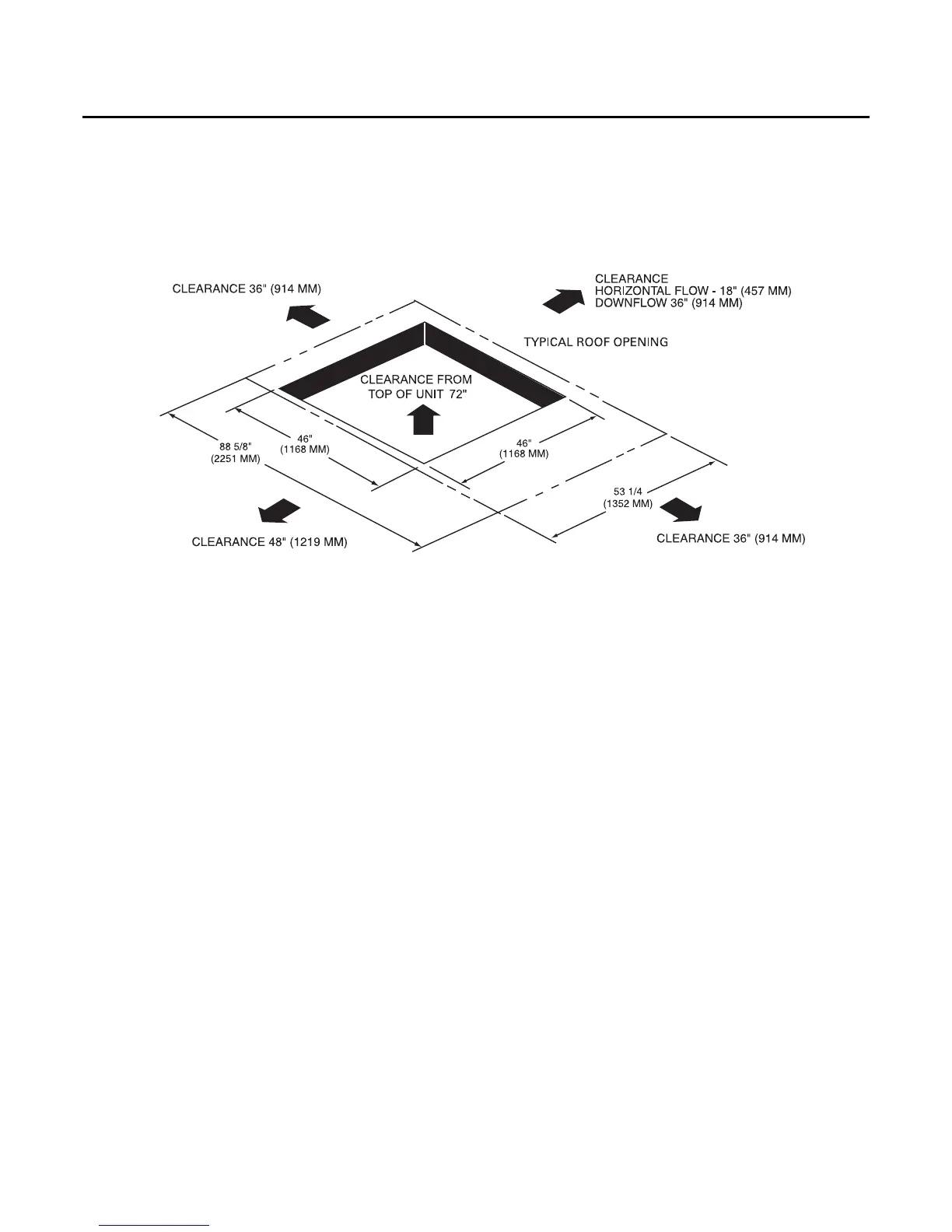

Figure 10. 8½ - 10 tons standard efficiency - unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
