Installation
26 RT-SVX38B-EN

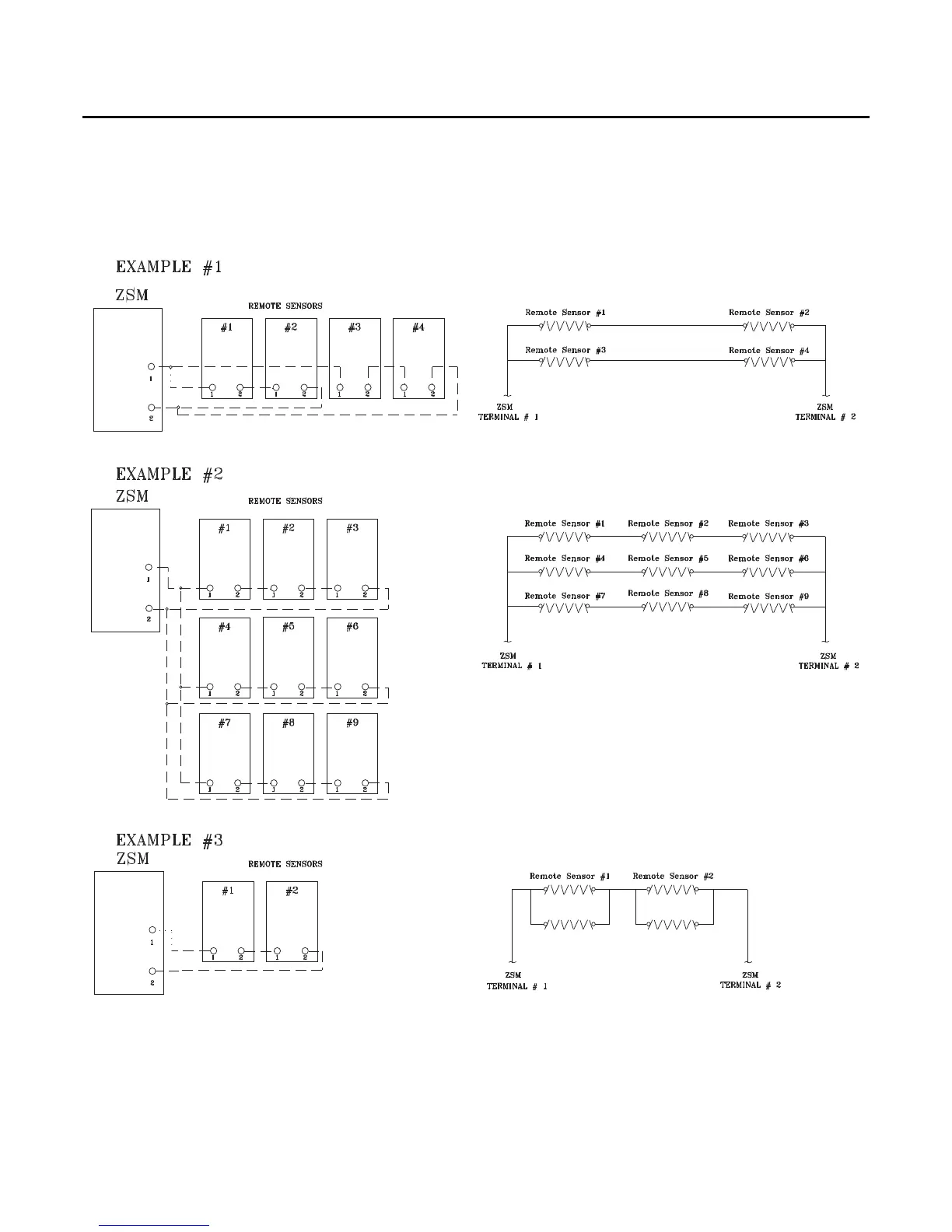

• Example #1 illustrates two series circuits with two
sensors in each circuit wired in parallel.The square of
any number of remote sensors is required.
• Example #2 illustrates three sensors squared in a
series/parallel circuit. Using BAYSENS077*, two
sensors are required to accomplish space temperature
averaging.
• Example #3 illustrates the circuit required for this
sensor. Table 6, p. 28 lists the temperature versus
resistance coefficient for all sensors.
Figure 28. Examples
