Traulsen INTELA-TRAUL User Manual

-23-
V. REMOVAL/INSTALLATION
V. a - ALL HORIZONTAL CONTROLLERS:
To remove INTELA-TRAUL
®
(p/n’s 337-60096-00 and 337-60097-00) Horizontal
Controller from the unit in which it is installed, proceed as follows:
1. Check to make sure that the
power cable is disconnected
from the wall.
2. Remove the four (4) black
plugs that are located in each
corner of the power pack
louver assembly. Set plugs
aside.
3. Remove the four (4) Phillips
head screws holding the louver
assembly in place. Set screws
and louver assembly aside.
4. Remove the two (2) Phillips
head screws thathold the
Controller and the bracket
assembly to the condenser fan
assembly. Set screws aside.
5. Locate all nine (9) Controller
connections, then carefully
disconnect each one.
6. Firmly grasp and compress the
rounded portion of the middle
prong on each holder clip.
Slowly slide each holder clip off
the Controller. Set clips aside.
WARNING: DISCONNECT ALL POWER BEFORE PROCEEDING
TO RE-INSTALL CONTROLLER,
REVERSE THE PRECEEDING
PROCEDURE.

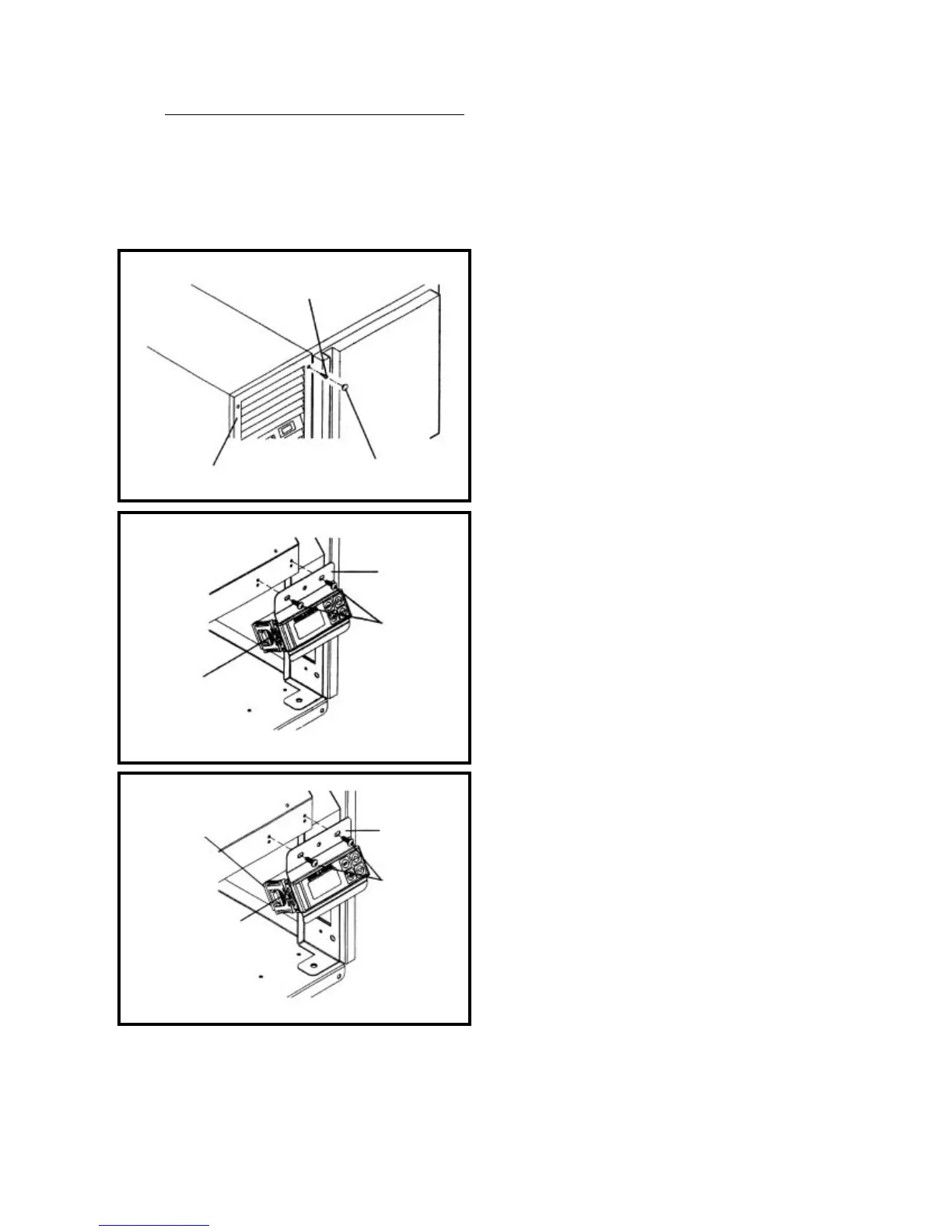

(4) PHILLIPS
HEAD SCREWS
LOUVER ASSEMBLY
(4) BLACK PLASTIC
PLUGS
MOUNTING
BRACKET
(2) PHILLIPS
HEAD SCREWS
MIDDLE
PRONG OF
HOLDER CLIP
(one on each side
of the controller)
MIDDLE
PRONG OF
HOLDER CLIP
(one on each side
of the controller)
MOUNTING
BRACKET
(2) PHILLIPS
HEAD SCREWS
GUIDE SLOTS
(one on each side
of the controller)
