V. REMOVAL/INSTALLATION
V. a -
ALL VERTICAL CONTROLLERS:
To remove INTELA-TRAUL
®
(p/n’s 337-60090-00, 337-60091-00 and
337-60092-00) and G-Series (p/n’s 337-60093-00, 337-60094-00 and
337-60095-00) Vertical Controller from the unit in which it is installed, proceed as
follows (If unable to access the unit from the rear perform steps 1 through 3,
otherwise, proceed to step 4):
-21-

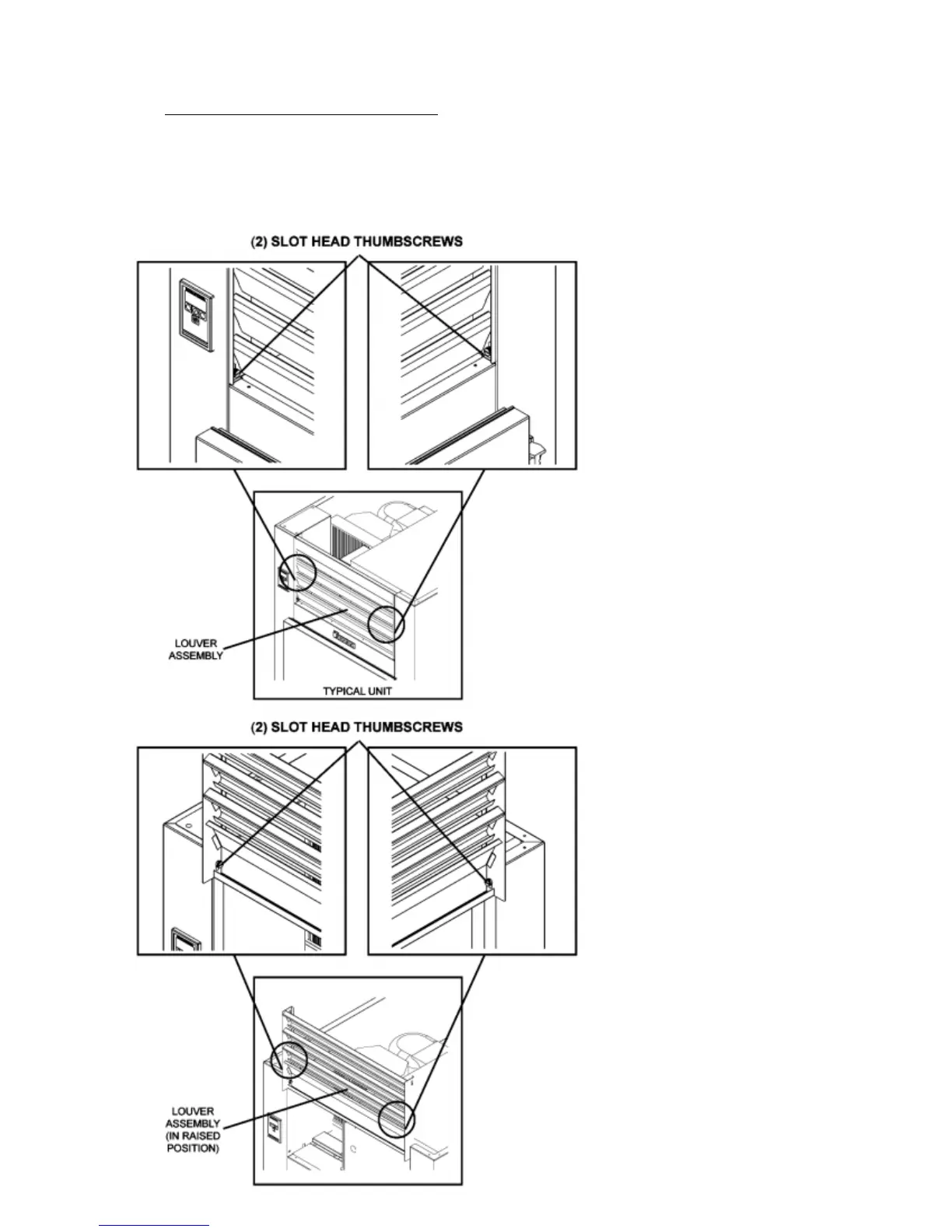

1. At front of unit,
remove two (2)
slot head thumb
screws from
bottom corners of
louver
assembly. Set
thumbscrews
aside.
2. Swing louver
assembly up and
away from front of
unit until it stops.
3. Remove two (2)
Slot head thumb-
screws from top of
louver assembly.
Set thumbscrews
and louver
assembly aside.
To Next Page
