4-13
Safety Quick start Riding Maintenance Resources
Front Cargo Rear wheel
WARNING: The removal and re-installation of internal gear hubs requires special knowl-
edge. Incorrect removal or assembly can result in gear failure, which can cause you to lose
control and fall. If you’re not comfortable performing this procedure, see your bike shop.
Tools:
• 2mm Allen wrench or needle-nose pliers
• 15mm socket or wrench

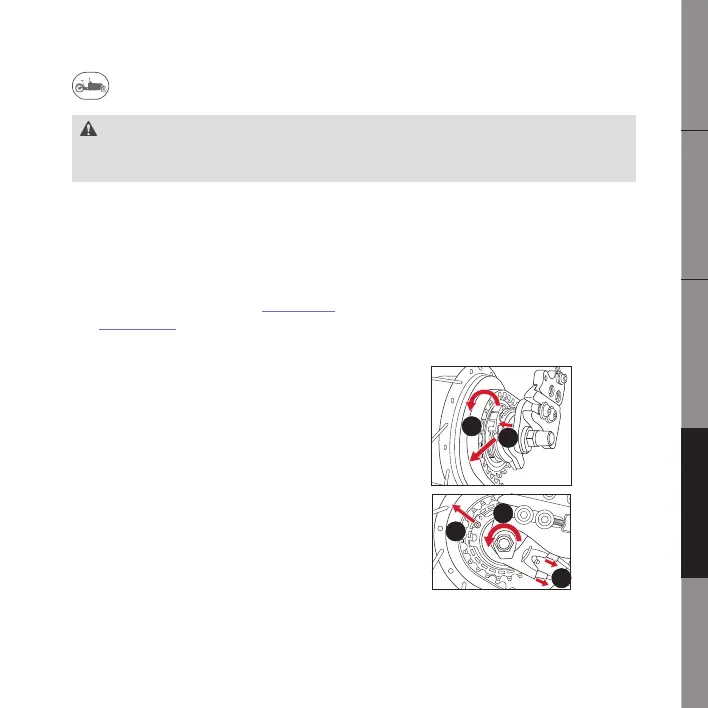

Remove
1. Loosen the tension adjustment bolt to
add slack to the belt (see Chain/Belt
on page 4-6)
2. Use the handlebar shifter to move the
hub interface. Turn the shifter until the
hub interface is facing rearward.
3. Rotate the barrel adjusters at the shift
lever counter-clockwise to create slack
in the cable.
4. Rotate the latch and remove the lower
cable stop from the hub interface.
5. Use the 2mm Allen wrench or nee-
dle-nose pliers to remove the upper
cable stop from the hub interface.
6. Pull both cable housings out of the
hub interface.
7. Loosen the two hub nuts and move
the security washers to the side, so
these don’t clamp in the dropout.
8. Remove the wheel from the dropouts.
4
3
5
7
6
