Trek MARLIN+ 6 - Rear axle; Rear axle assembly and installation

2024 Marlin+
3
Rear axle
This bicycle frame is designed to use a Universal Derailleur Hanger (UDH). For additional information about the UDH, refer to
the SRAM user manual at sram.com.
25 Nm
10 Nm
1
2
3
4
5

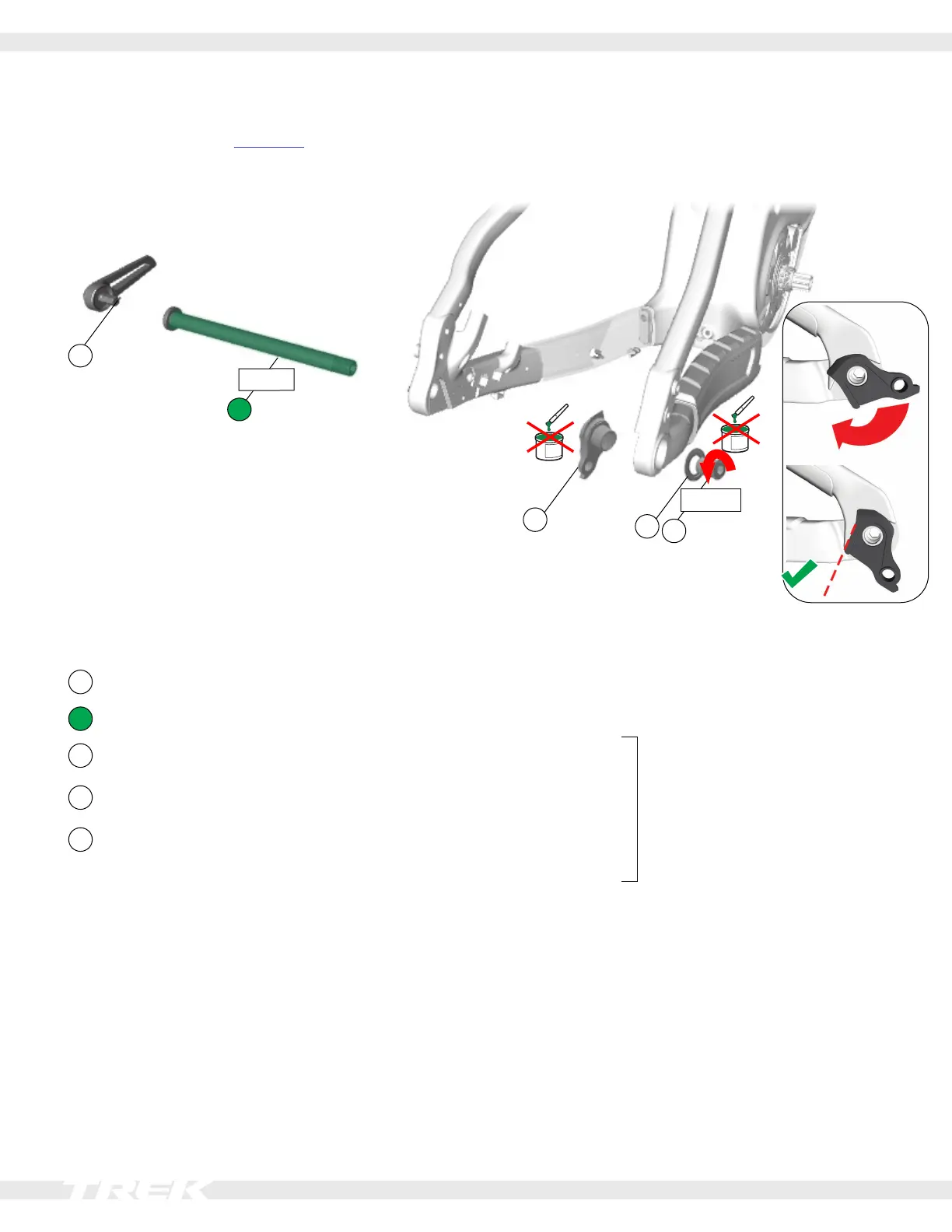

1
Switch lever – W573860
2
Thru axle, 12 mm – W600321
3
Dérailleur hanger
NOTICE: Do not apply grease.
– W5271425
4
Washer, 25 mm
NOTICE: The washer is frame-specic. Install only the washer size specied.
5
Bolt, M12
NOTICE: Do not apply grease. Do not overtighten. Overtightening may damage
the hanger.
