2024 Marlin+
4

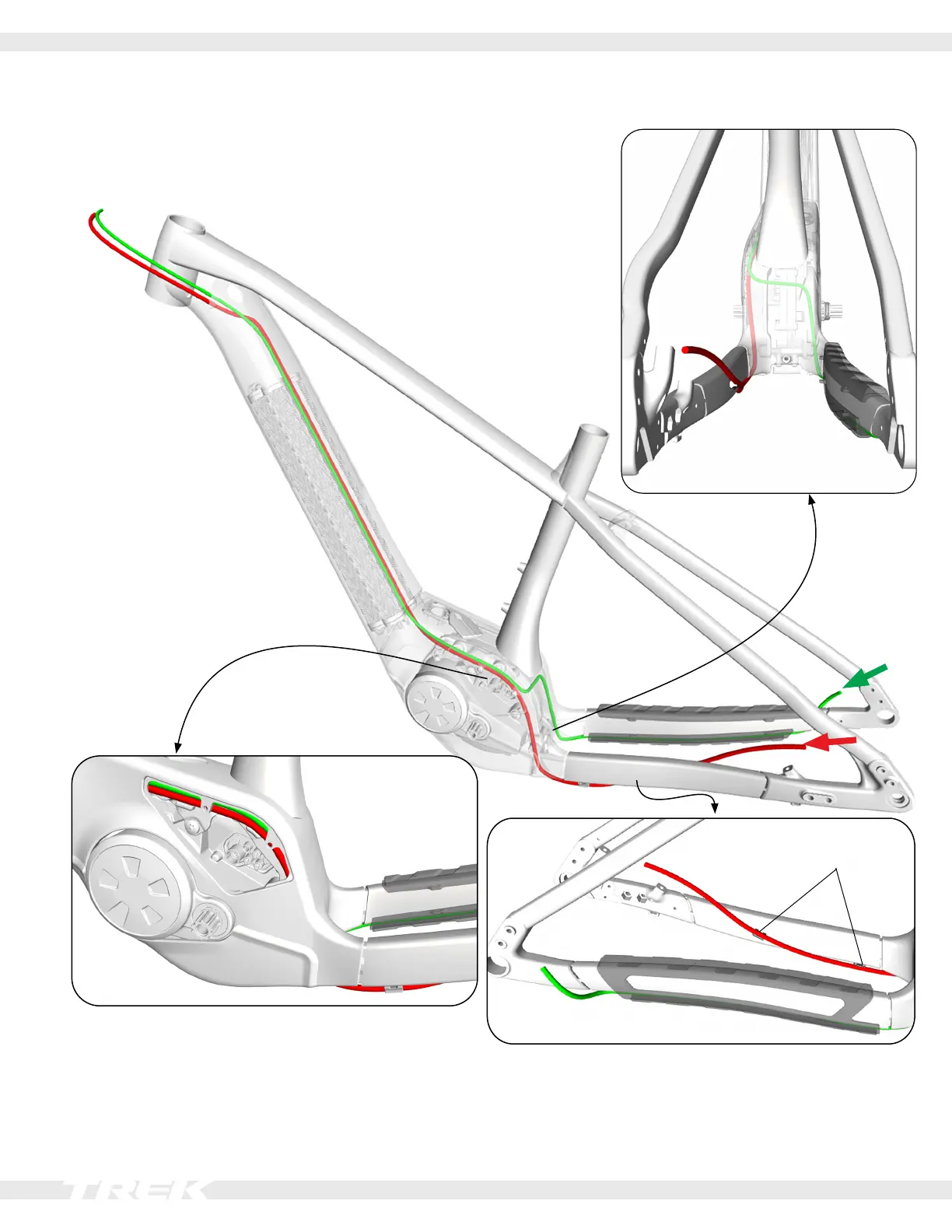

Brake and rear shi routing
Zip ties
Tip:
Remove the non-driveside motor cover to easily route
the brake hose and rear shift housing.
