Install the computer on your bike
Install the Sensor and Magnet
1. Position the sensor unit to the inside of
the right fork blade near the top (Fig. 18). NOTE:
For best results computer and sensor should be
less than 18” apart. Attach the sensor to the fork
blade with quick ties, but do
not tighten the ties yet.
2. Attach the wheel
magnet to the spoke, aligning
the magnet with the sensor
(Fig. 19). The magnet should
have 3-5 mm clearance from
the sensor. If the sensor
and magnet are too close, or
touching, rotate the sensor
unit away from the magnet
until adequate clearance is
achieved.
3. Once correct orientation is achieved, tighten
the sensor attachment quick ties and tighten
the magnet. Trim excess quick tie length with a

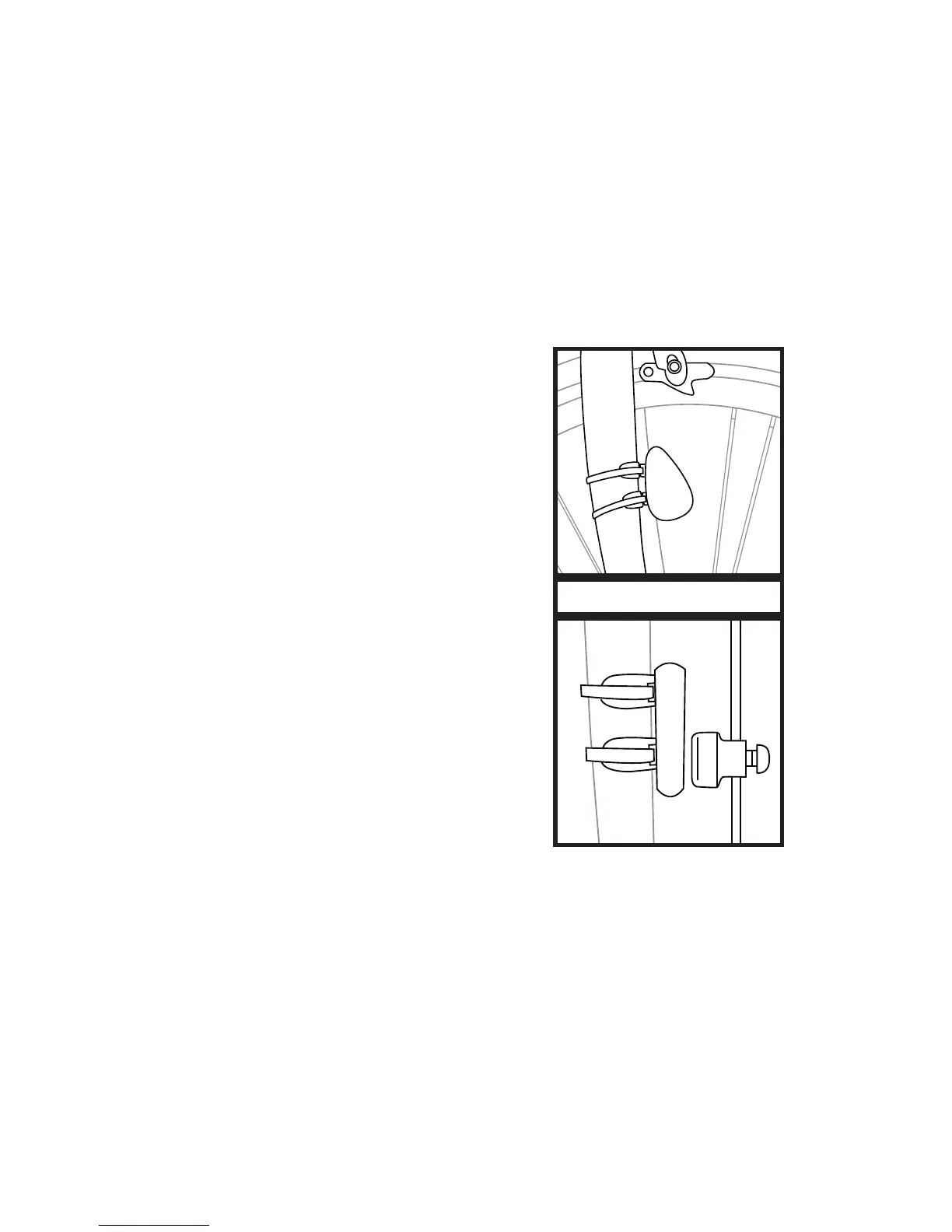

Fig. 18
Fig. 19
