TREND CRT/MK3 - Optional Accessories; Hose and Connector Accessory

-25-
CRT/MK3
Hose and Connector
Ref. CRT/4
The back fence is provided with
an extraction point for connection
to suitable vacuum extractors. The
internal hole diameter is 57mm
(2-1/4”). Suitable fittings with 57mm
outside diameter are available for
most extractor units.
Q Only a vacuum extractor unit
recommended for use in the
workshop should be used.
Q A suitable adaptor and extraction
hose can be purchased as
optional accessories.
The accessory hose Ref. CRT/4
has an outside diameter of 39mm
and inside diameter of 32mm. It is
fitted with the hose adaptor which is
a three piece design that allows the
hose to swivel freely.

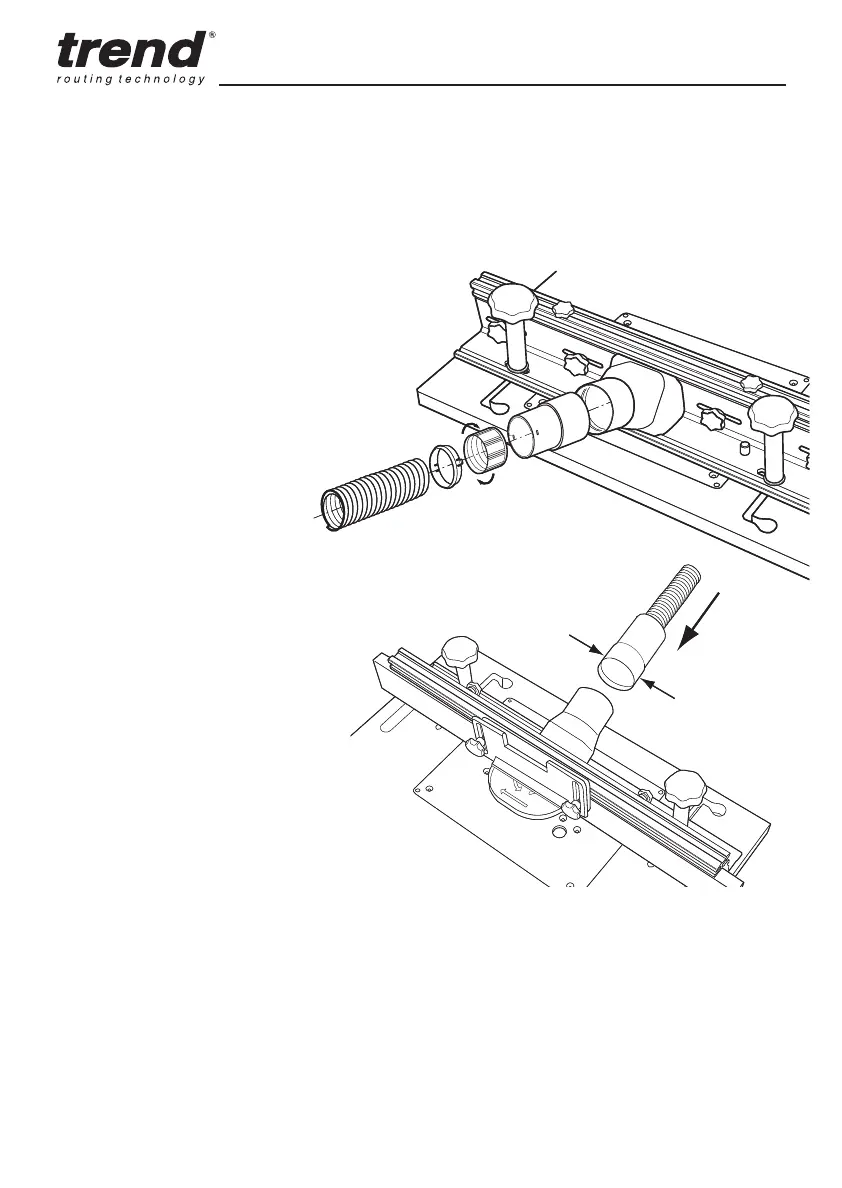

Q Assemble the hose adaptor onto
the end of the hose as shown and
insert into back fence.
Q Fit the other end of the extraction
hose to your dust extractor.
Ref. CRT/4 Hose 39mm OD x
32mm ID x 3m.
CRT/4
Please use only Trend original accessories.
ACCESSORIES
