TREND LOCK/JIG - Option 2: Medium Duty Router; Option 3: Using with Hinge Jig

LOCK/JIG
-9-

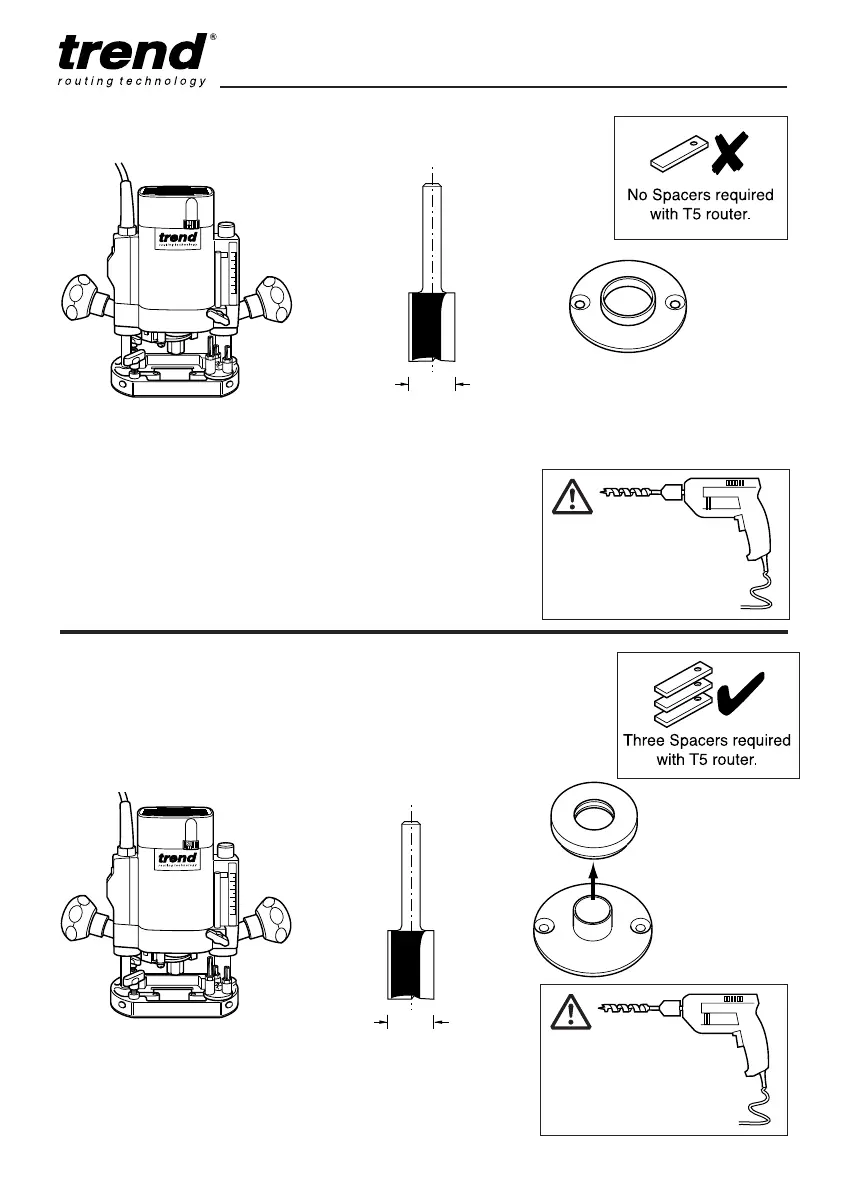

Option 3
Using the Lock Jig with the Trend Hinge Jig
■ If the Lock Jig is to be used in conjunction with the Trend Hinge
Jig, use the Guide Bush Collar to bush out the 16mm guide bush
(supplied with the Hinge Jig) to 30mm diameter. This makes it
unnecessary to change guide bushes between operations.
Guide Bush Collar
Ref. GB/COLL/1630
Supplied with Lock Jig
12mm
+
+
Medium duty router with
1
⁄ 4 ” collet e.g. T5 Router
Router Cutter
Ref. TR12X1/4TC
or 3/8LX1/4TC
16mm Guide
Bush Ref.
GB160
Supplied with
Hinge Jig
Deepening of
mortise with auger
bit and drill will be
required.
Option 2
12mm
Deepening of
mortise with auger
bit and drill will be
required.
+
+
Medium duty router with
1
⁄ 4 ” collet e.g. T5 Router
30mm Guide Bush
Ref. GB30
Router Cutter
Ref. TR12X1/4TC
overall length 70mm
OR USE
Router Cutter
Ref. 3/8LX1/4TC
overall length 66mm
