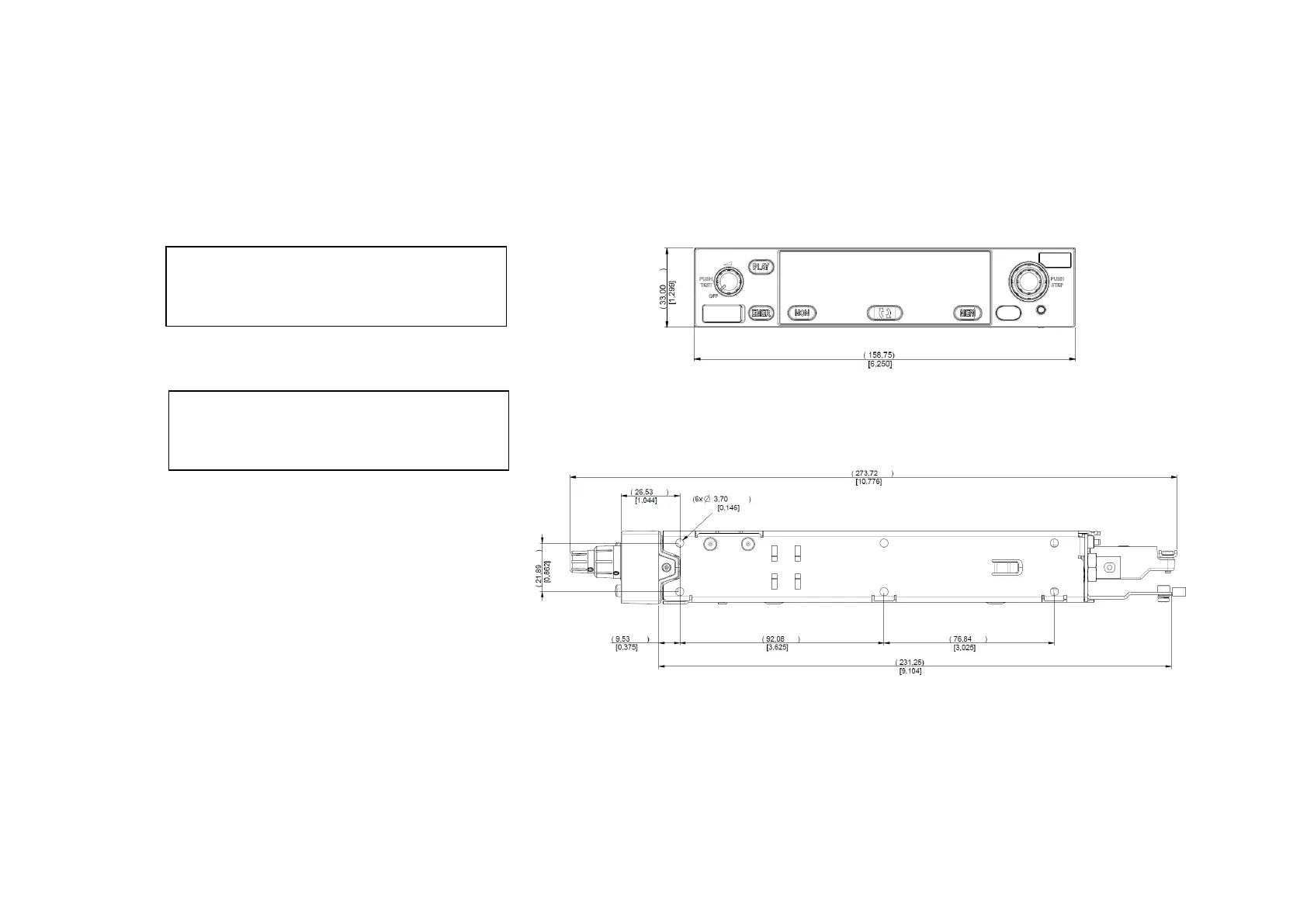

12. Installation Drawings
Dimensions in (--) are millimetres, dimensions in [--] are inches.
158.90 mm
CUT OUT DIMENSIONS FOR BEHIND AIRCRAFT PANEL MOUNT
31.50 mm
160.30 mm
CUT OUT DIMENSIONS FOR FRONT AIRCRAFT PANEL MOUNT
33.80 mm
