Trimec rt11 - Keypad Function Matrix; Installation

6 Operation

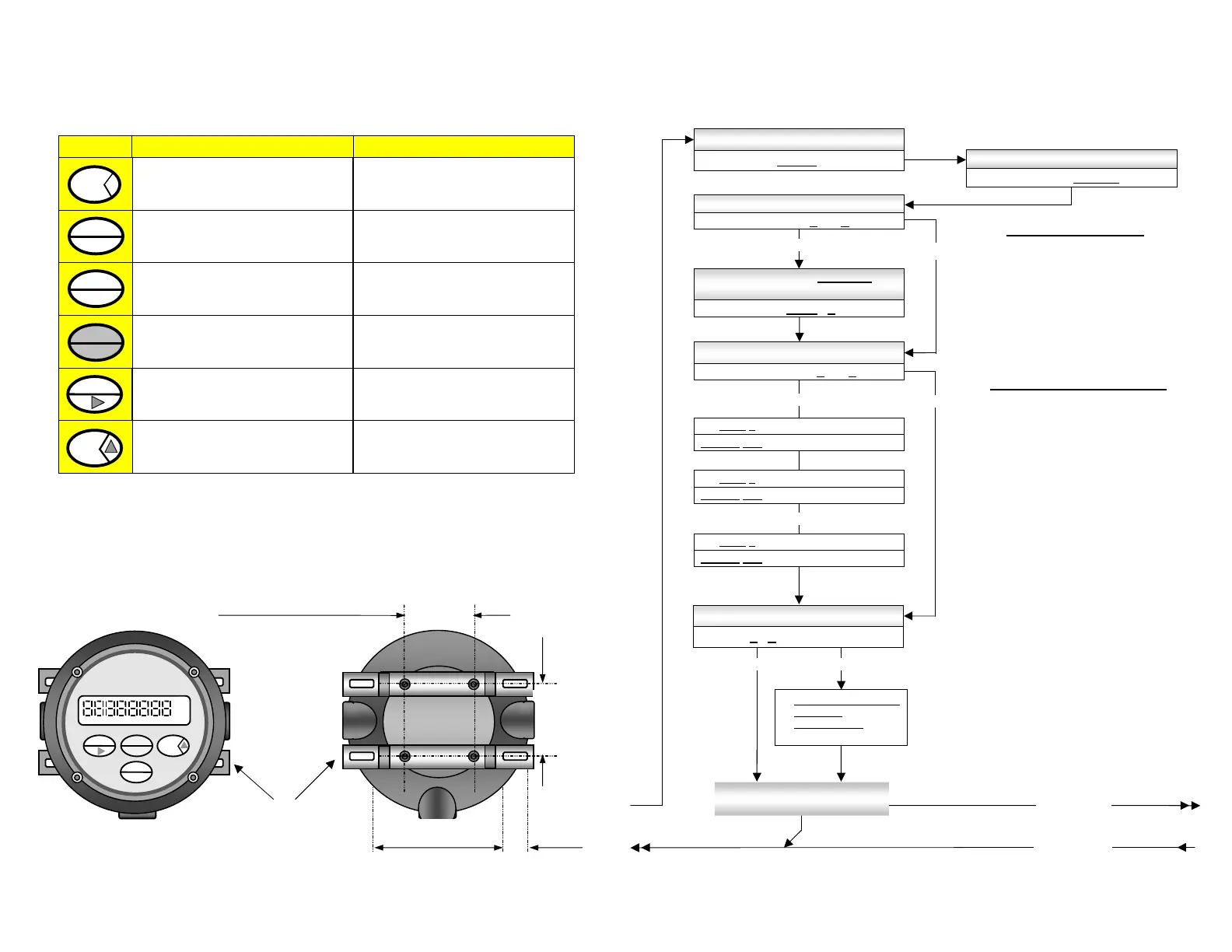

2.6 Keypad function matrix
3. INSTALLATION
3.1 Mounting
Programming 15
6.1 Program levels 8 ~ 13 (RT11 & 12)
KEY FUNCTION IN OPERATING MODE FUNCTION IN PROGRAM MODE
Toggles between Rate & Total displays.
Resets the Total display to zero
only when Total is being displayed.
No function
No function
1) Pressing the Prog. & Rate/Total keys for 5
seconds enters you into the program mode.
2) Displays model & software revision No.
1) Each press steps you through each
level of the program chart.
2) Holding for 3 seconds fast tracks to the end
of the program from any program level.
No function
Selects the digit to be set, the selected digit
will be “flashing ” indicating that it can be
incremented.
No function
Increments the selected digit each time
that it is pressed.
Displays Accumulative Total when pressed.
( refer clause 2.1 for options )
No function
ACCUM
TOTAL
RATE
TOTAL
RESET
PROGRAM
ENTER
L8 SET RATE DAMPENING
DAMP 00 ~ 99 RATE
program returns to end or advances
to next level if model RT12
1)
Any number up to 10 frequency points of non
-
linearity can be programmed with point 0F being
the pulse output frequency at the lowest flow rate.
2) If any frequency point is set to zero Hz then
all remaining NLC points up to point 9F will
automatically assume the last entered NLC
K-factor and the program will advance to the
next level. This feature simplifies programming
when not all points of correction are used.
3)
Linear interpolation is used between frequency
points, except above the last entered frequency
where the last entered NLC K-factor is applied.
Non-linear correction (NLC)
( overrides K-factor set at L4 )
1) ULTRA POWER SAVE
2) STANDBY
3) CONTINUOUS
( refer clause 4.10 )
YES
continued if
model RT12
NO
YES
9F 0000.0 (set output freq. at point 9)
000000.000 ( set K-factor at point 9 )
10 points from 0F up to 9F
L12 NON LINEAR CORRECTION
NLC Y - N
0F 0000.0 (set output freq. at point 0)
000000.000 ( set K-factor at point 0 )
1F 0000.0 (set output freq. at point 1)
000000.000 ( set K-factor at point 1 )
YES
L10 OUTPUT PULSE REQUIRED Y / N
PULSE Y - N
NO
L11
ENTER No. OF gal - litres etc
PER OUTPUT PULSE
OP XXXX . X
NO
Low frequency cut-off
The low frequency cut-off is generally set to
0.0Hz (disabled) for most applications other
than those described at clause 2.4 on page 5
L13 CHANGE POWER MODE Y / N
CHANGE Y - N (applicable under battery only)
HERTZ 0.0 ~ 9.9
L9 SET LOW FREQUENCY CUT-OFF
program return
Surface mount footprint
(use 4 screws supplied )
Wall mount using optional
bracket set ( P/No. AWM )
18 mm
( 0.7 ” )
80 mm ( 3.15 ” )
42.6 mm
( 1.67 ” )
RATE TOTALISER
RATE
TOTAL
ACCUM
TOTAL
PROGRAM
ENTER
gal
RUN ACCUM. TOTAL
STOP BAT LOW HIGH
RESET
