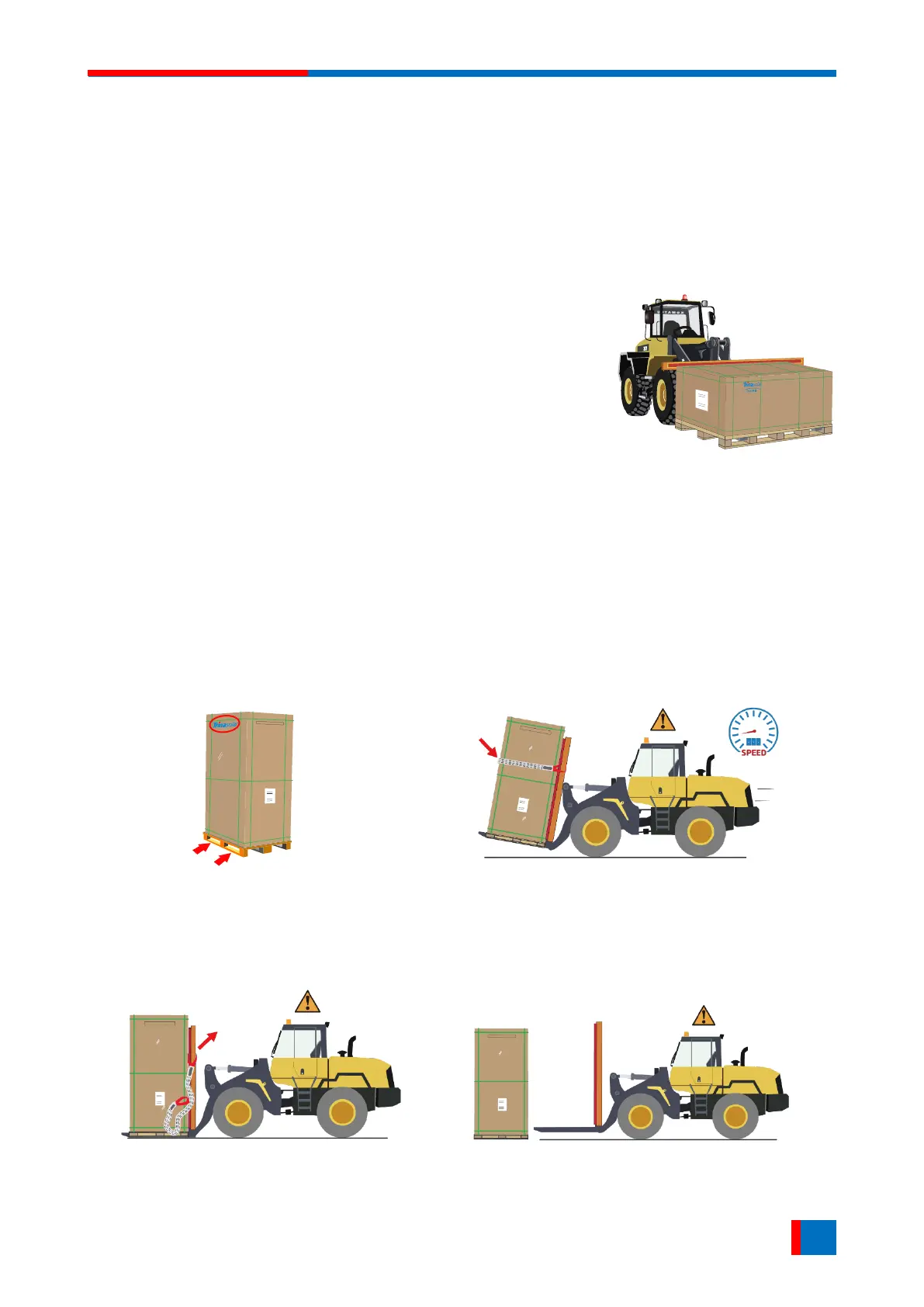

Vertical landscape package
① Forks
The fork length (L) should ≥ 1.0 m.
The forks distance (W2) should be adjusted to the maximum position
without any interference to the pallet.
② Backrest
The backrest length (H) should ≥ 1.5m or the backrest width (W1)
should ≥ 2.5 m.
The backrest shall perpendicular to the fork, and the structure must
be firm (withstand pressure ≥ 15 kN). When the entire module
package leans on the backrest, the backrest shall not be deformed
due to pressure.
③ Beam
④ Buffer material
The contact position between the top beam and the module package
should be fixed with a buffer material (preferably silicone, rubber,
EPE) to prevent the forklift from damaging the modules.
*Forklift specifications and operating practices include, but are not limited to,
the above-mentioned matters.
Please also pay attention to the following precautions:
Exit the forklift slowly.
The module package shall lean on
the backrest, the package must be
fixed using a safety rope with a
tensile strength of ≥ 2000 kgf, and
control the speed to prevent tip-off.
Place the module package smoothly on
the ground, untie the safety rope after
the confirmation of no risk of tilting.
The forklift must be operated from
the long side of the pallet (forks enter
slowly into the pallet from the long
side). Do not collide with the module.
Both sides of the beam shall contact
with the package at the same time.
