18
Module type
Mechanical loads
Module type
Mechanical loads

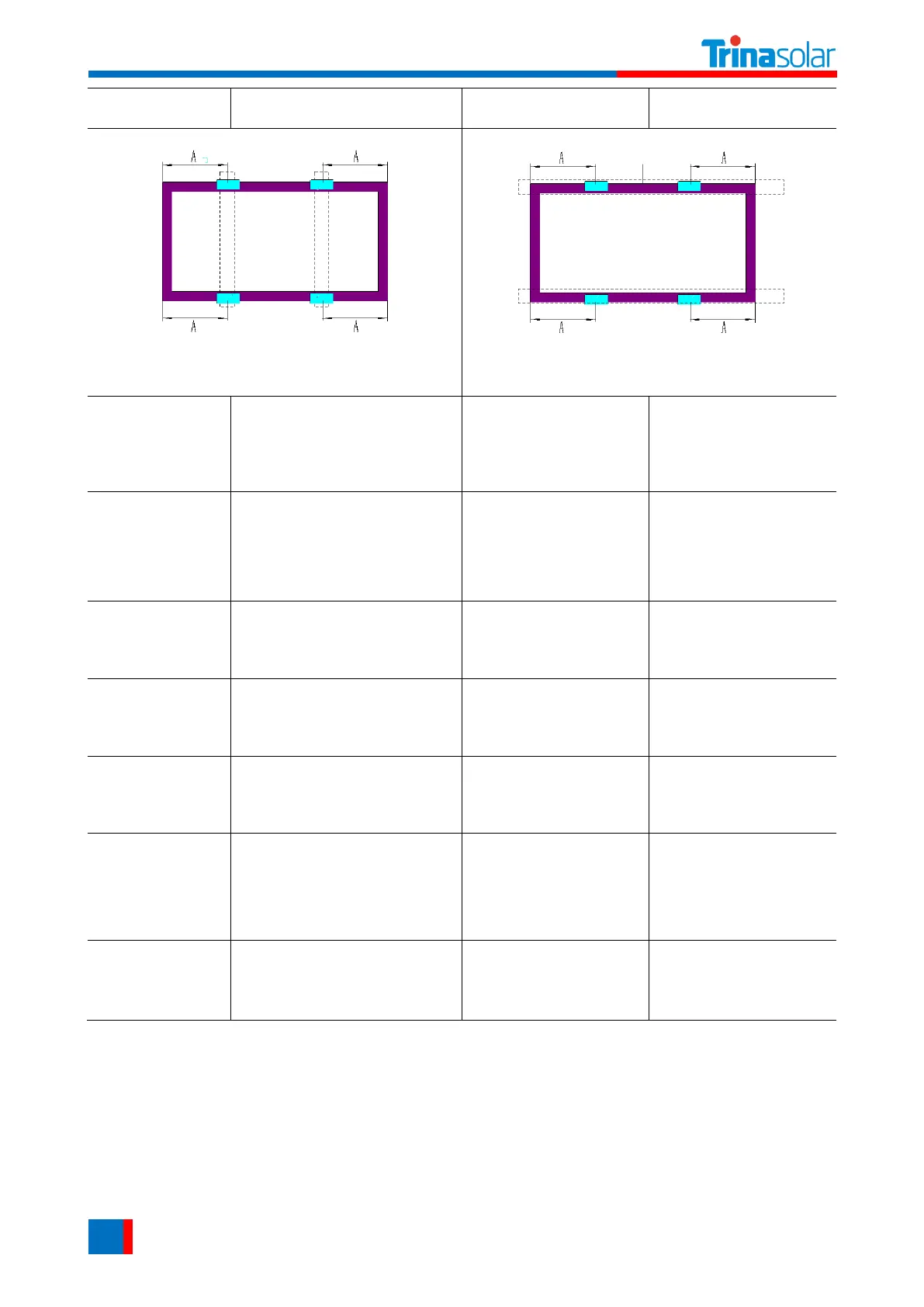

Use 4 clamps on the long side.
Mounting rails run perpendicular to the long side frame.
Use 4 clamps on the long side.
Mounting rails run parallel to the long side frame.
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
A = (250 - 350) mm
Uplift load ≤ 4000 Pa
Downforce load ≤ 6000 Pa
DEG18MC.20(II)
A = (350 - 450) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 3600 Pa
DEG9.20
DEG9.28
DEG9C.27
NEG9.20
NEG9.28
NEG9C.27
A = (290 - 370) mm
Uplift load ≤ 4000 Pa
Downforce load ≤ 5400 Pa
DEG19C.20
NEG19C.20
A = (440 - 540) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 3600 Pa
DE18M(II)
DEG18MC.20(II)
A = (350 - 450) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
DE20
A = (361 - 436) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 3000 Pa
DE18M.08(II)
A = (350 - 450) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 6000 Pa
DEG20C.20
NEG20C.20
A = (360 - 430) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 3600 Pa
DEG18M.20(II)
DEG18M.28(II)
A = (360 - 450) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
DEG21C.20
NEG21C.20
A = (440 - 540) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 3600 Pa
DE19
DEG19C.20
NEG19C.20
DE21
DEG21C.20
NEG21C.20
A = (440 - 540) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
/
/
DE20
DEG20C.20
NEG20C.20
A = (360 - 430) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
/
/
The following installation methods and mechanical loads have been verified by the Trina Solar’s
National Key Laboratory for PV Science and Technology.
