Trina Solar User Manual | Vertex Series Modules
19

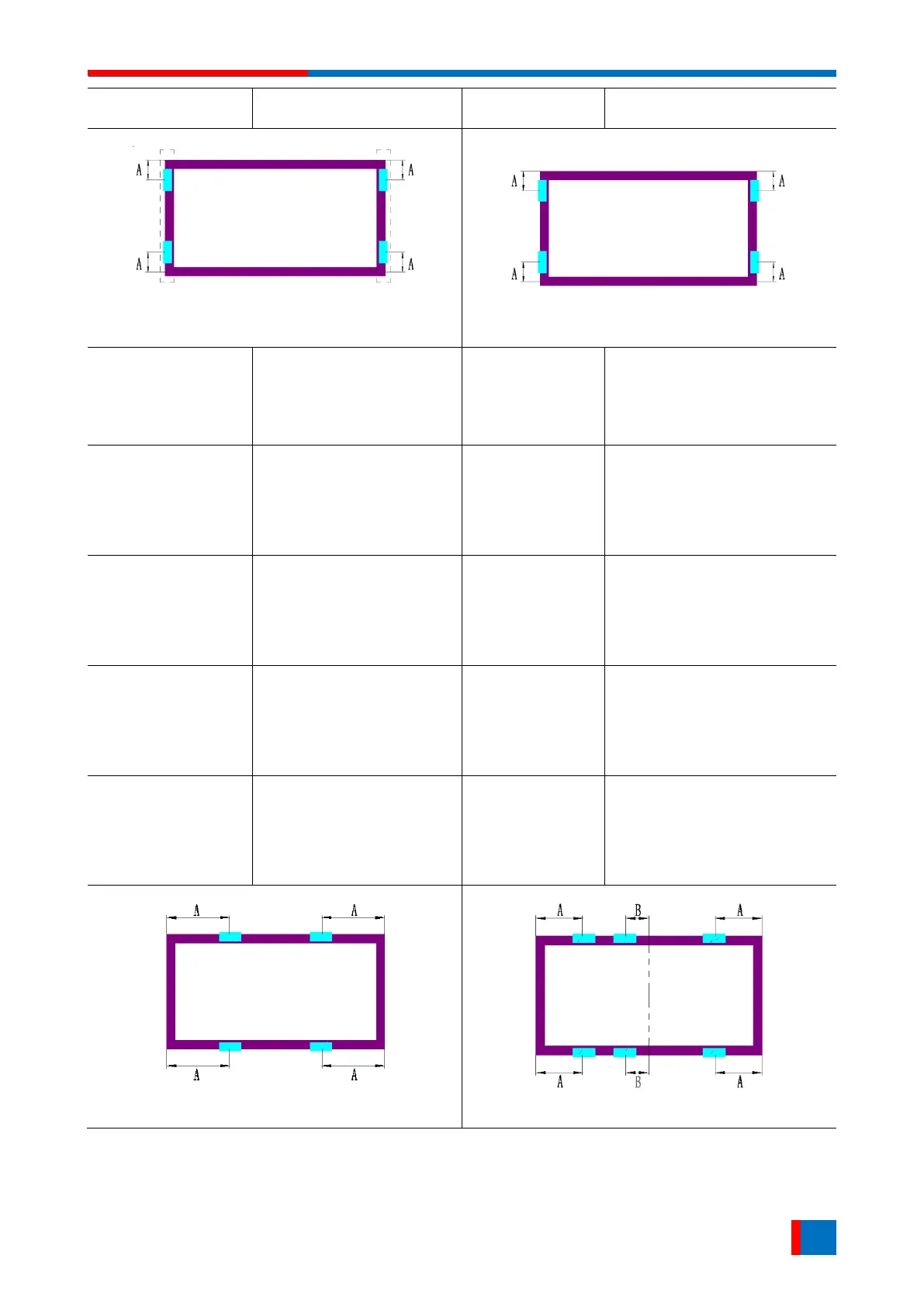

Module type
Mechanical loads
Module type
Mechanical loads
Use 4 clamps on the short side.
Mounting rails run perpendicular to the long side frame.
Use 4 clamps on the short side.
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
A = (0 - 200) mm
Uplift load ≤ 2000 Pa
Downforce load ≤ 2400 Pa
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
A = (0 - 200) mm
Uplift load ≤ 1800 Pa
Downforce load ≤ 2400 Pa
DEG9.20
DEG9.28
DEG9C.27
NEG9.20
NEG9.28
NEG9C.27
A = (0 - 200) mm
Uplift load ≤ 1600 Pa
Downforce load ≤ 2100 Pa
DEG9.20
DEG9.28
DEG9C.27
NEG9.20
NEG9.28
NEG9C.27
A = (0 - 200) mm
Uplift load ≤ 1600 Pa
Downforce load ≤ 2100 Pa
DE18M(II)
DE18M.08(II)
A = (0 - 200) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 1200 Pa
DE18M(II)
DE18M.08(II)
DEG18M.20(II)
DEG18M.28(II)
DEG18MC.20(II)
A = (0 - 200) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 1300 Pa
DEG18MC.20(II)
A = (0 - 200) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 1300 Pa
/
/
DE20
A = (45-485) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 1000 Pa
/
/
Use 4 clamps on the long side.
Use 6 clamps on the long side.
