Trio MC206X Quick Connection Guide

An internal relay is used to enable external amplif ers when the
controller has powered up correctly and the system and application
software are ready. The amplif er enable is a single pole solid state
relay with a normally open “contact”. The enable relay contact will
be open circuit if there is no power on the controller OR a following
error exists on a servo axis OR the user program sets it open with
the WDOG=OFF command.
ALL STEPPER AND SERVO AMPLIFIERS MUST BE INHIBITED WHEN
THE AMPLIFIER ENABLE OUTPUT IS OPEN CIRCUIT
ANALOGUE INPUT AIN0: 0 TO 10V
ANALOGUE OUTPUTS AOUT 0 TO AOUT 4
Output: +/-10V at 5mA
Output impedance: 100 Ohms.
Common 0V return. Isolated from I/O
& Encoders.

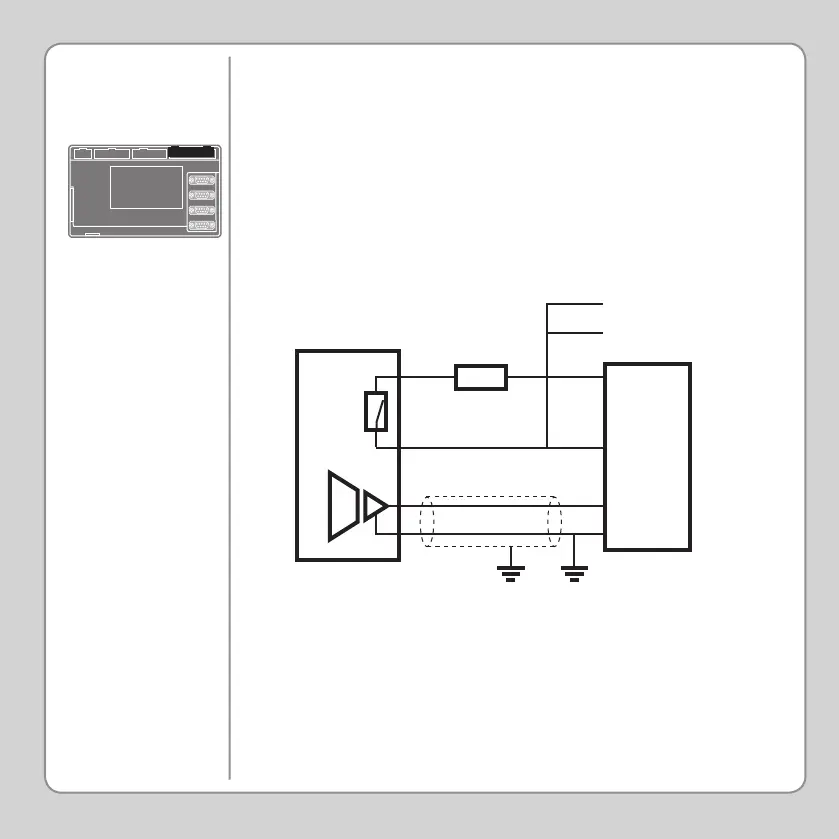

AMPLIFIER
ENABLE
(WATCHDOG)
RELAY OUTPUT
Amplif er
Enable 1
Amplif er
Enable 2
V+
V-
Trio Controller Servo Amplif er
To other axis enables
24v 0v
0v
Enable
VIN +
VIN-
