Motion Coordinator Technical Reference Manual
Introduction 1-13
System Building
System Examples

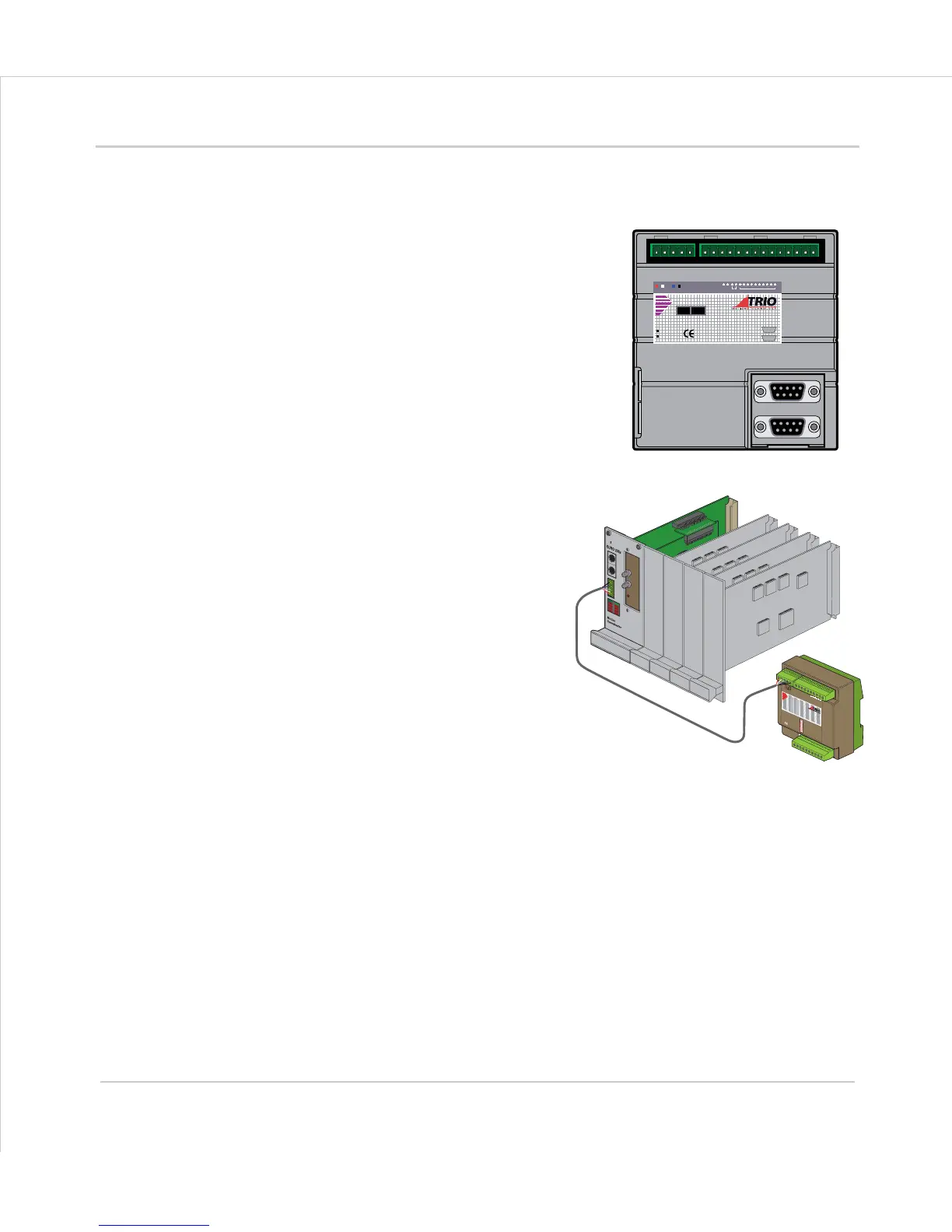

Example 1
Simplest Possible System - Single MC302X
• 1½ Axis Servo (Servo + reference encoder)
or 2 Axis Stepper
• 8 Channels of 24v I/O on board
- 4 Inputs
- 4 I/O
Example 2
Euro205x, 5 Axis Rack mounted System
The Euro 205x controller provides a
compact rack-mounted controller ideal
for volume OEM applications.
The four internal axes are configured
as stepper axes and connected via the
backplane to third party stepper
drives.
An optional P200 Servo Daughter Board
provides a fifth axis connected to a
servo drive.
•5 servo axes
• 40 Channels of 24v I/O
- 16 in + 8 out on Euro205x, plus
- 16 I/O on CAN-16 I/O expander
P192
012389101124v0vV+V-
AXIS 0
AXIS 1
SERIAL A
SERIAL B
MC302X
OK STATUS
P
3
1
5
7
6
5
4
3
2
1
0
2
4
v
0
v
C
A
N
1
6-I/
O
M
S
EURO205
CAN-16 I/O
